Operation Instruction
15
2.2 Product Description
The Operation Instruction section introduces all application, technical maintenance, adjustment, failure and
troubleshooting procedures for the NorTrac 82XTC series wheeled tractors:
NorTrac 82XTC wheeled tractors are a type of multifunctional large wheeled tractors used for farming. The tractors
have a compact structure, are easy to control, offer flexible steering and a high lifting capacity, and are easy
to maintain.
2.3 Tractor Operating Mechanisms and Instrumentation
2.3.1 Tractor Operating Mechanisms

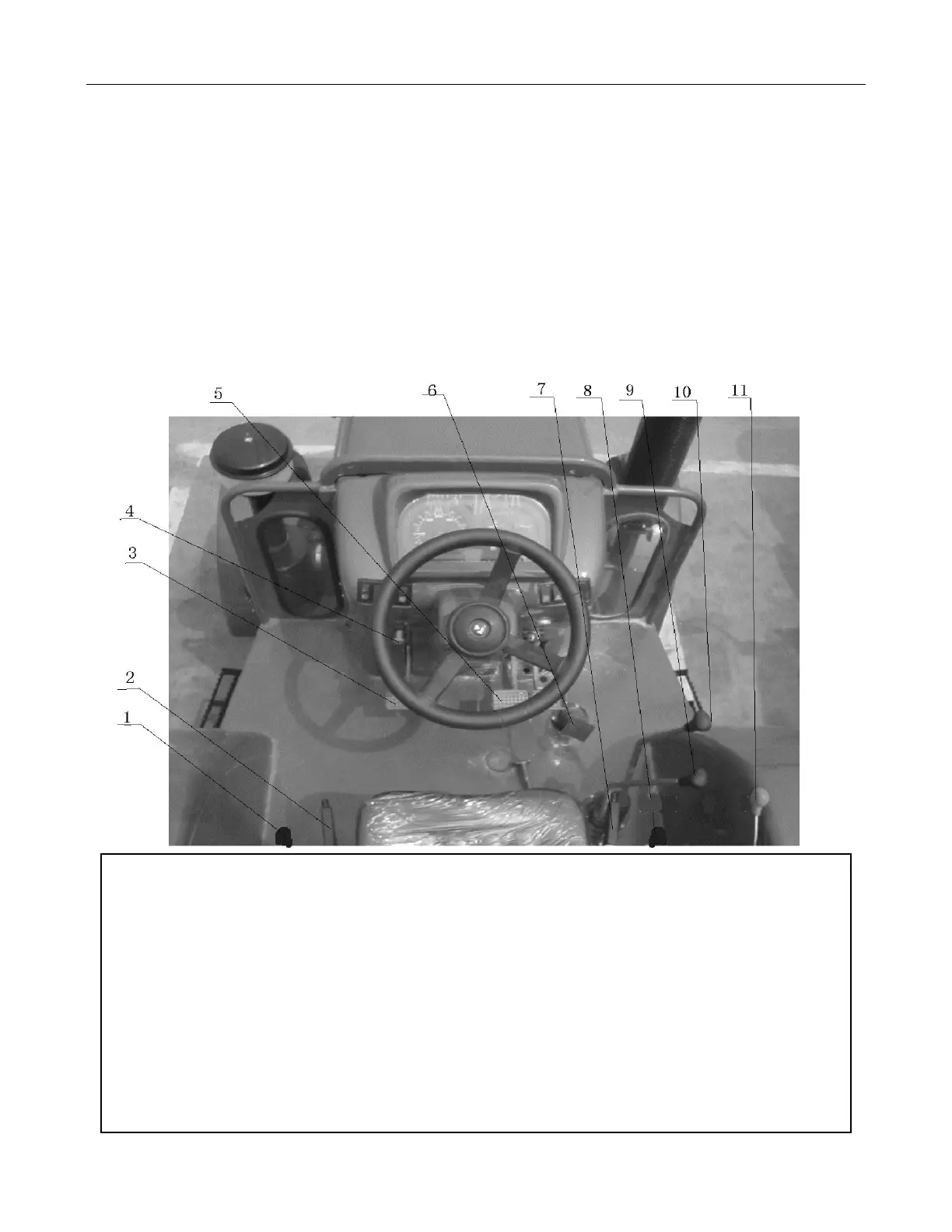

Figure 2-1 Tractor Control Mechanisms
1. Power take-off cotrol handle 2. Parking brake control handle 3. Main clutch pedal
4. Fuel shutoff cable handle 5. Left/right braking pedal 6. Foot throttle control pedal
7. Auxiliary clutch control handle 8. Distributor control handle 9. Main gear shift lever
10. Auxiliary gear shift lever 11. Hand throttle control handle
Not shown: 12. Shift pedal 2/4-wheel drive (left floor) 13. Differential lock
14. T handle high./low range shift lever (both on right floor)
