Operation Instruction
41
9
1.0
RedBlue
(RL)
22
0.75
RedBlack
(RB)
35
0.75
GreenRed
(GR)
57
0.75
GrayBlack
(SB)
10
1.5
YellowRed
(YR)
23
1.0
Purple
(P)
36
0.75
Purple
Black(PB)
10a
0.75
YellowRed
(YR)
11
1.0
RedYellow
(RY)
24
1.5
GreenWhite
(GW)
37
1.0
Purple
Yellow(PY)
42a
0.75
Black(B)
12
1.0
YellowBlue
(YL)
25
0.75
BrownRed
(BrR)
38
0.75
BrownGreen
(BrG)

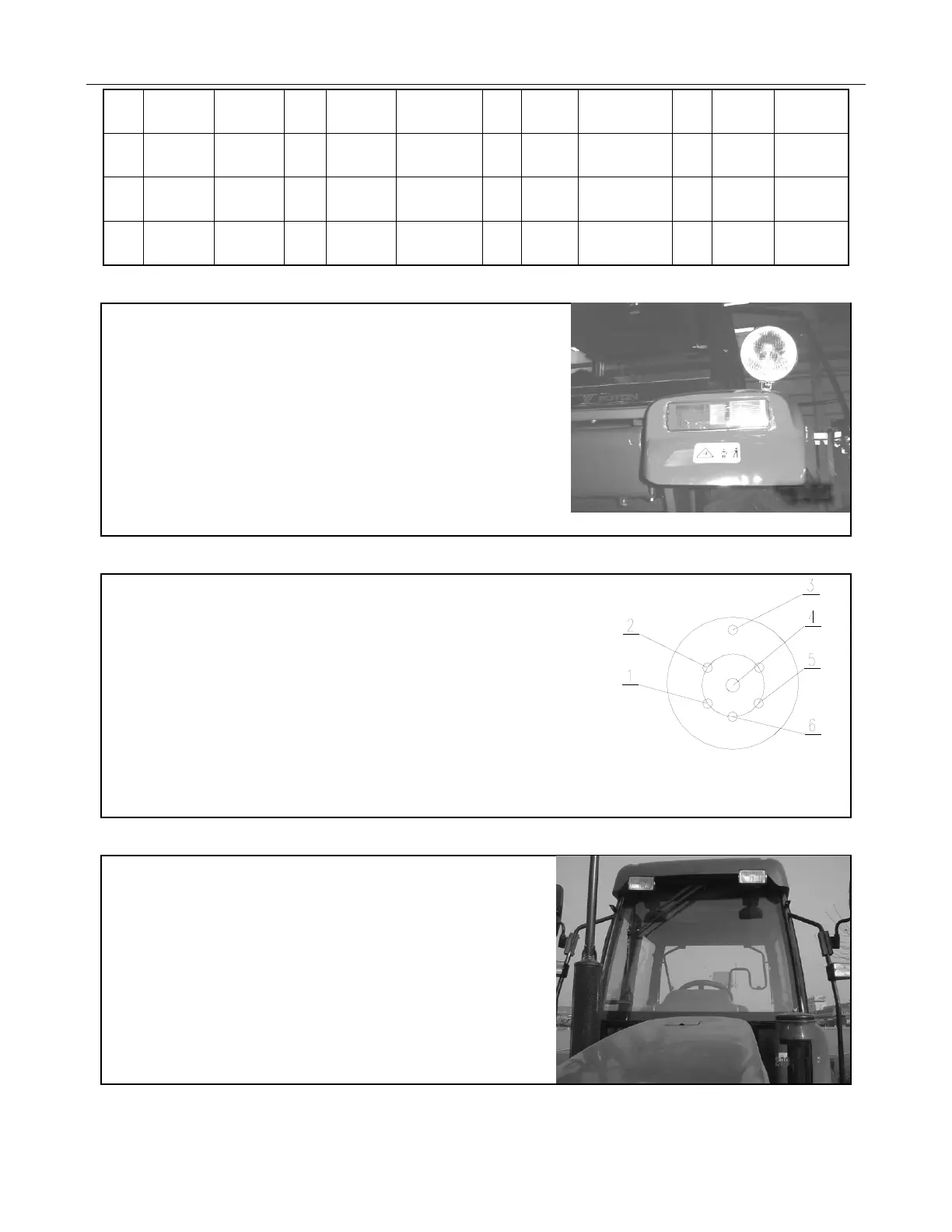

2.16.9.5 Rear Work Light and Taillight
View of rear light and tail lamp assembly
(steering, position, braking).
Figure 2-41 Rear Work Light and Taillight
2.16.9.6 Rear Trailer Electrical Socket
The pins of the rear trailer electrical socket are shown in Figure 2-65.
If a pin is not marked in the figure, it is not used.
Figure 2-42 Rear Trailer Socket
2.16.9.7 Roof (Work) Lights
Roof (Work) Lights
There are four roof lights on the cab, both front and rear.
The front roof lamp in the cab is shown in the figure 2-43.
Switches on the control panel turn the roof lights on an off.
Figure 2-43 Roof (Work) Lights
1. Right turn light power wire 2. Working light power wire 3. Ground wire
4. Position lamp power wire 5. Braking lamp power wire 6. Left turn light power wire
