Batteries

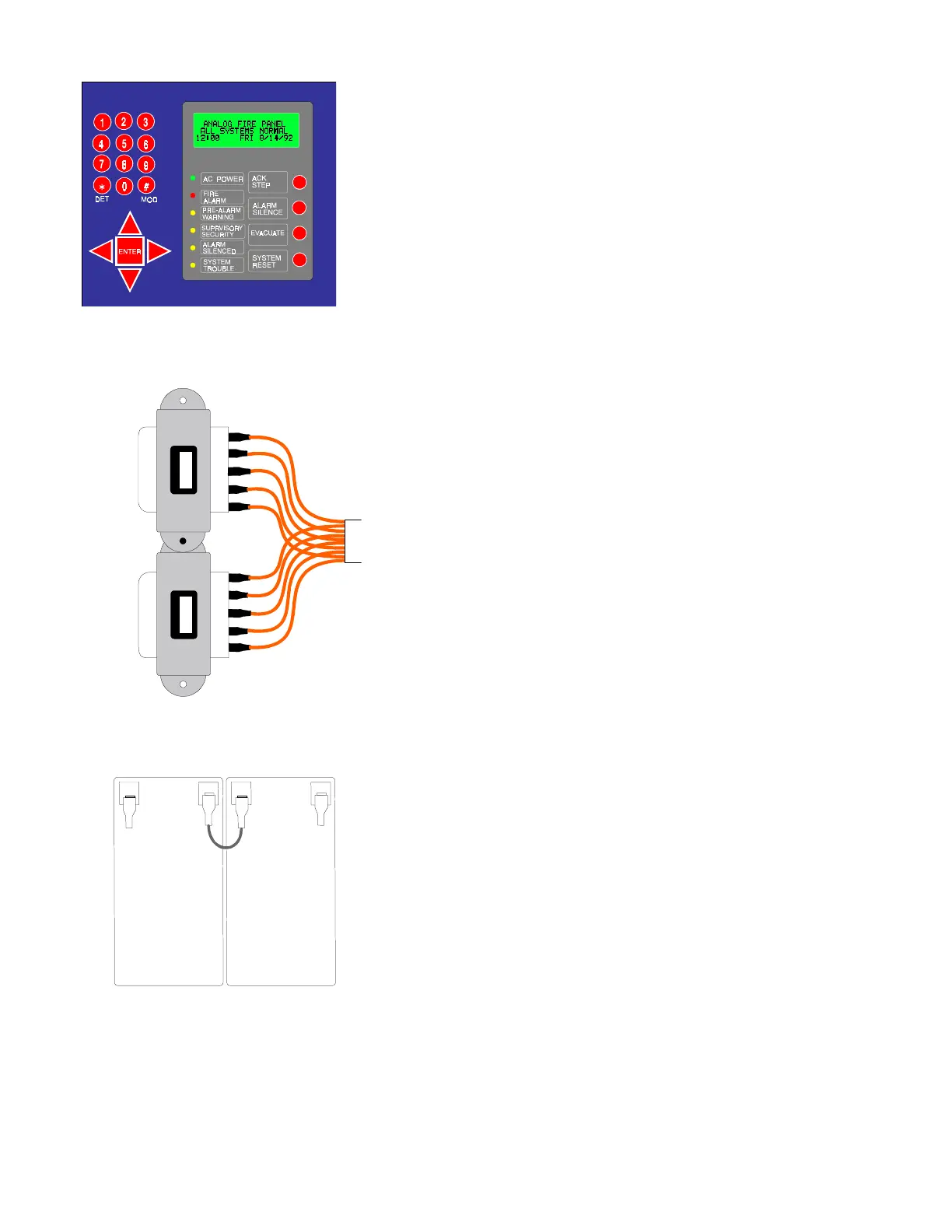

The cabinet provides space for 7 AH or 12 AH batteries (for 17 AH
batteries use the BB-17 battery box). Batteries must be ordered
separately.
Transformer Assembly
Two 100 VA transformers and connector.
Membrane Switch Panel
The membrane switch panel provides LED indicators and operational
switches (ACKNOWLEDGE, SILENCE, DRILL, RESET). The
operational switches and LEDs are visible with the cabinet door
closed. The programming switches are visible only with the door
open. Slide-in labels are provided for switch and LED description.
