Notifier AFP-200 User Manual

AFP-200 Instruction PN 15511:F2 10/11/99 11

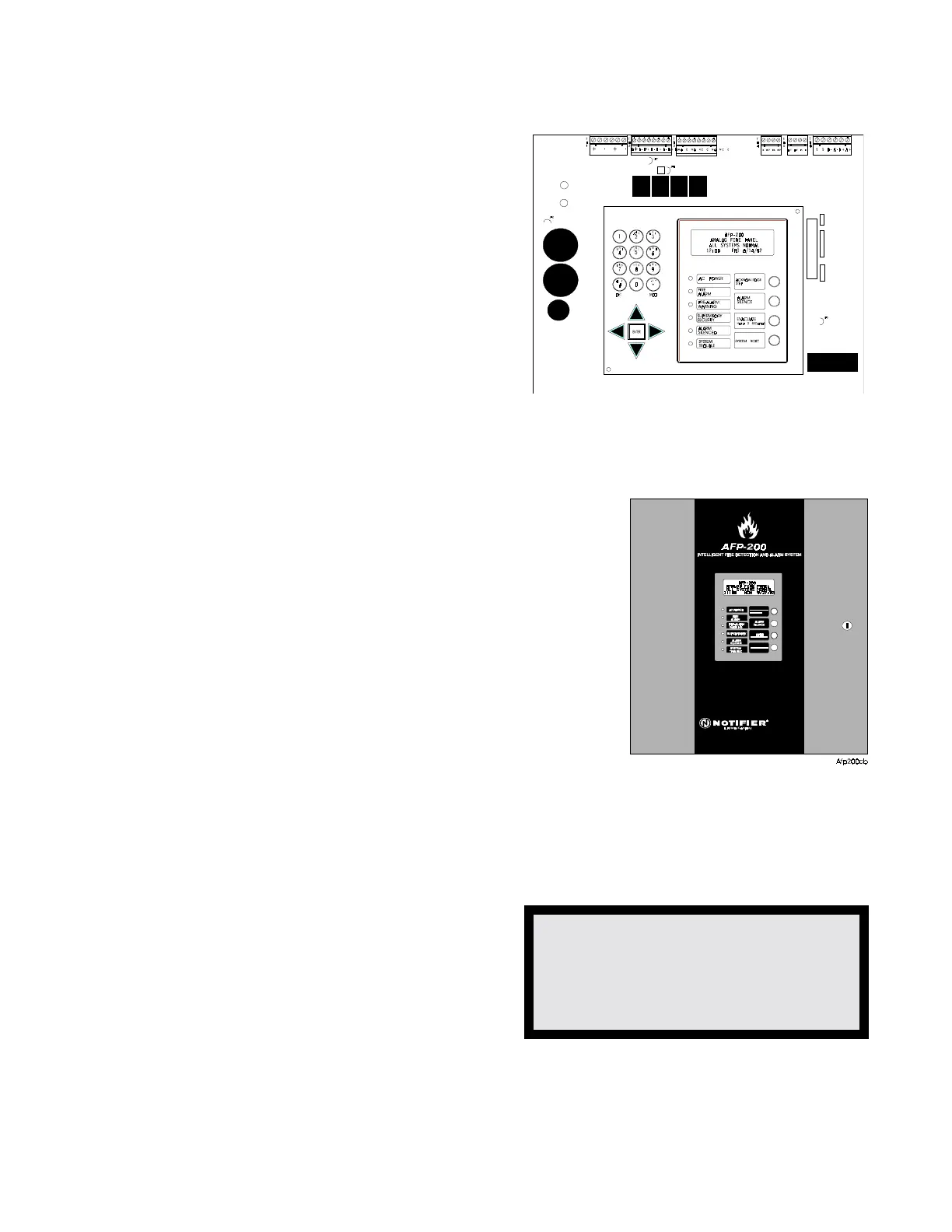

1.6 Components
LCD Display
The control panel uses an 80-character LCD
display (4 X 20 characters). The display includes
a long-life LED backlight that remains illuminated
unless AC power is lost while the system is not in
alarm.
Circuit Board
At the heart of the AFP-200 control panel, the circuit
board contains the system’s central processing unit
(CPU), power supply, and other primary components.
It is delivered pre-mounted in the cabinet (see below).
Cabinet
The circuit board mounts in a compact (16.125" x 14.5" x 5.5")
cabinet with a Lexan
®
front dress plate. The cabinet provides space
for two batteries (up to 12 AH).
AFP-200
ANALOG@FIRE@PANEL
ALL@SYSTEMS@NORMAL
11:00@MON@4/28/97

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
