Notifier AFP-200 User Manual

30 AFP-200 Instruction PN 15511:F2 10/11/99
Connect Loop Out to TB 6-3 (+) and TB 6-5 ().
Connect Loop Return to TB 6-4 (+) and 6-6 ().

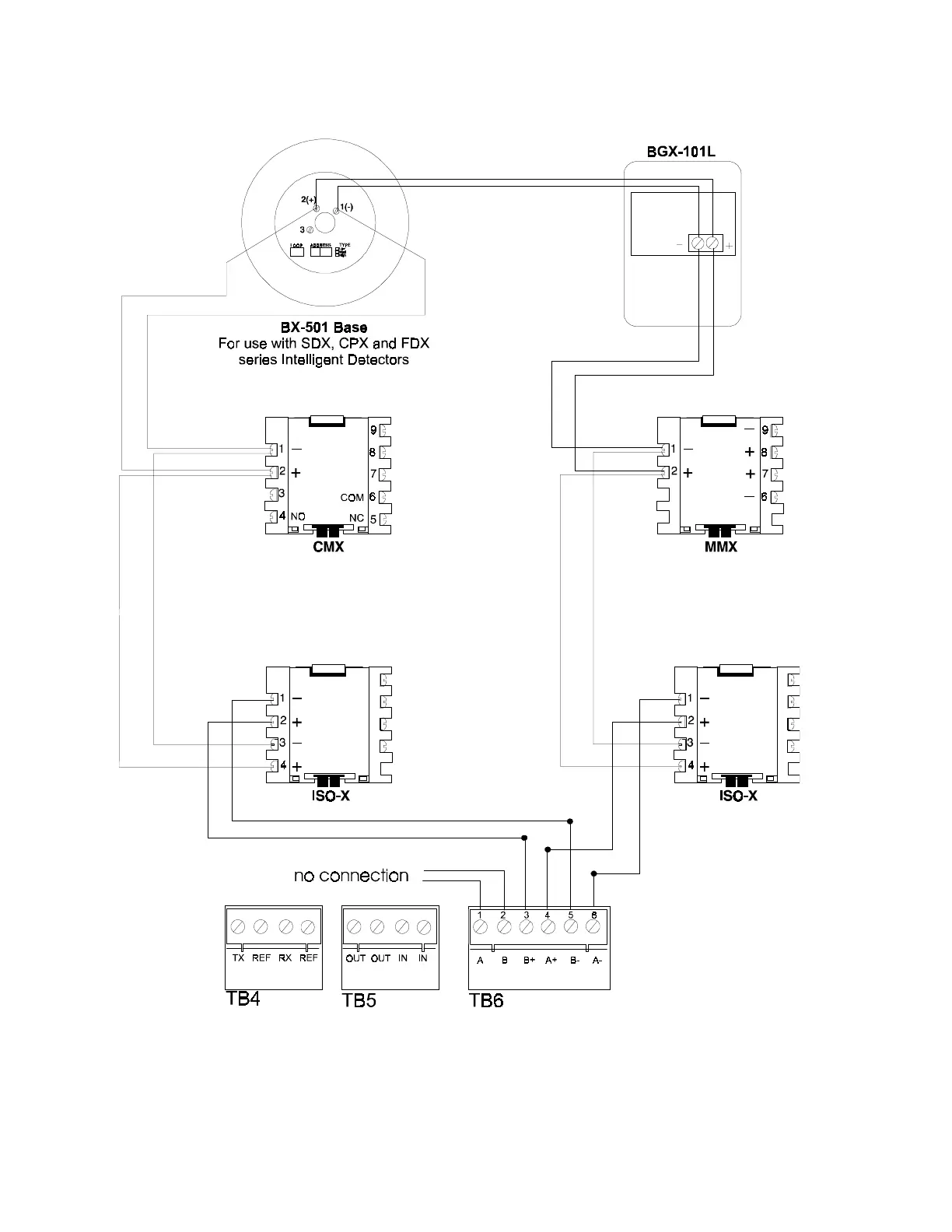

Figure 2-15 Four-Wire SLC Communications Loop
(Supervised and power-limited  meets NFPA 72-1993 Style 6 requirements)
Note: The maximum number of devices between isolator modules is 25. ISO-X devices are not required to meet
NFPA Style 4.
2.7 Wiring the Signaling Line Circuit, continued

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
