AFP-200 Instruction PN 15511:F2 10/11/99 85

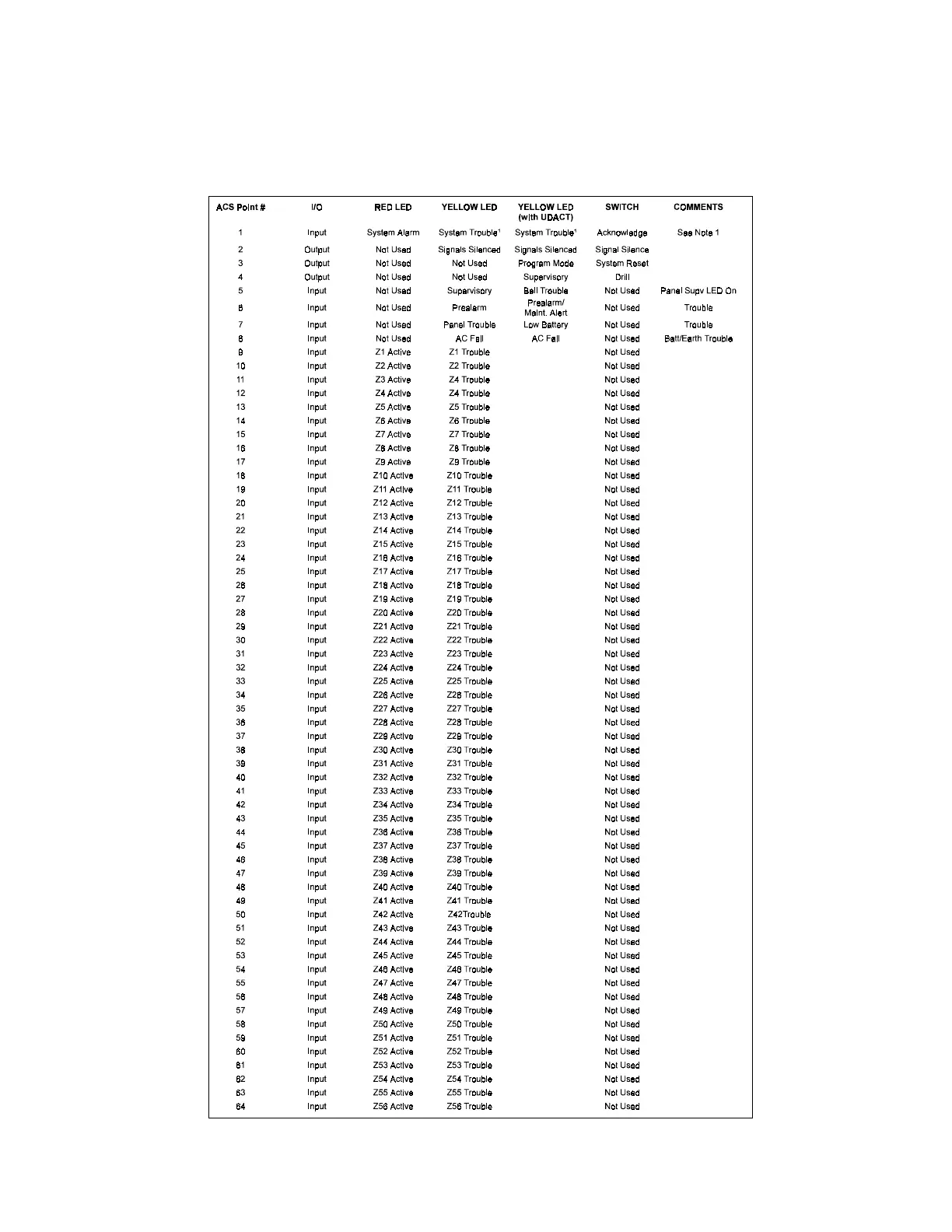

Data Formats Address 1
The use of a UDACT Universal Digital Alarm Communicator/Transmitter and an ACM, AFM or LDM Series
Annunciator on the same control panel will alter the assignments of the yellow LEDs on ACS Points 3, 4, 5, 6, 7
and 8. Assignments with the UDACT are Point 3=Program Mode, Point 4=Supervisory, Point 5=Bell Trouble,
Point 6=Prealarm/Maintenance Alert, Point 7=Low Battery and Point 8=AC Fail.
1
System Trouble excludes AC power fail.
