Notifier AM2020 - Figure 4

1-20
Installation 15088:K 3/21/01
Figure 2
.4-3.4-3
.4-3.4-3

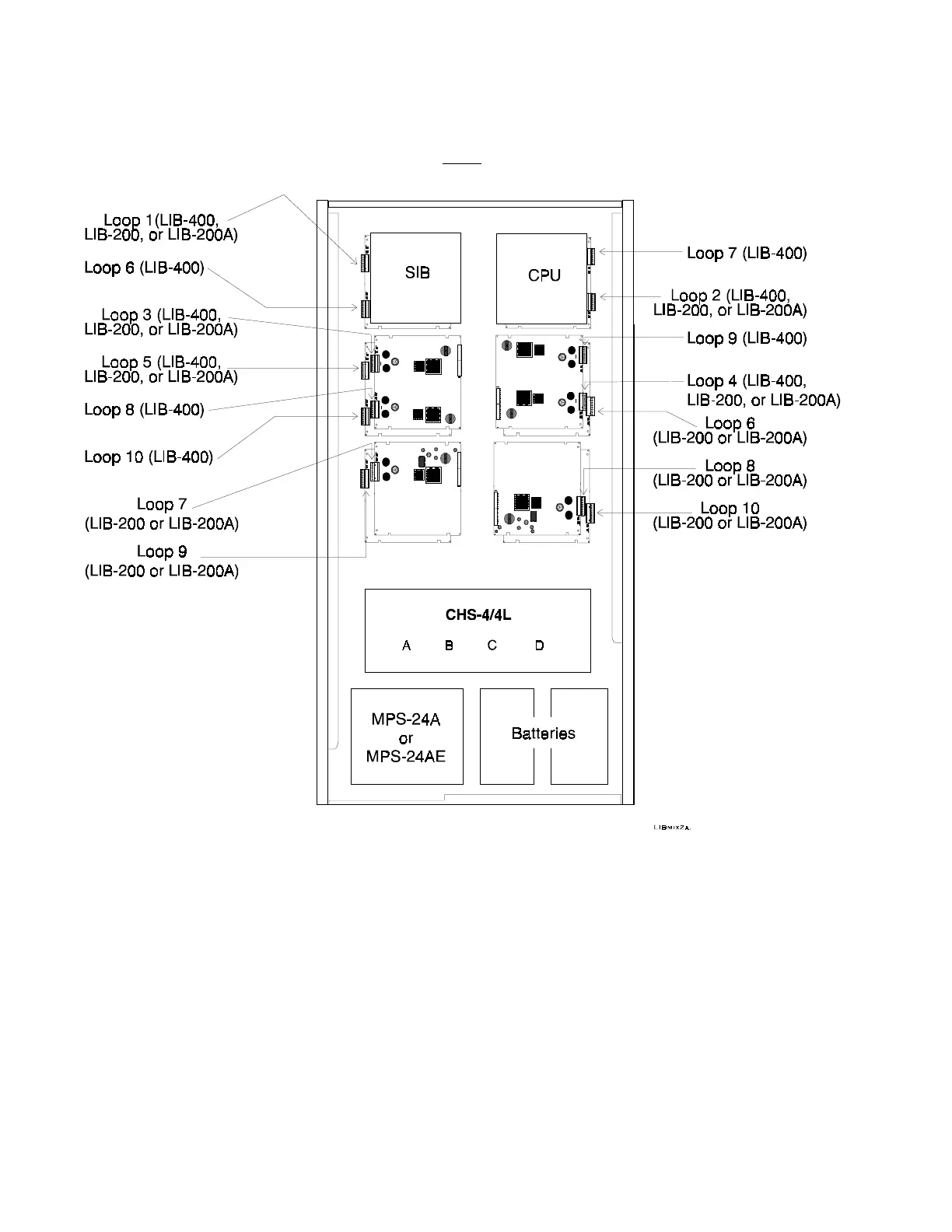

.4-3 AM2020 LIB SLC Numbering Scheme
Figure 2.4-3 depicts the LIB SLC numbering scheme for an AM2020 in a CAB-D3 cabinet. Three ICA-4L chassis
are required to mount the various types of LIB modules employed. Refer to Figure 2.4-2 as an example of
AFP1010 applications.
NOTE
The installation of LIB modules resulting in duplicate LIB SLC numbers is never permitted.
