ID50 Series Panel - Operating Manual
Operator Actions at Panel
37 997-264-000-8, Issue 8
January 2007
4.12 View Mode - User Option
The VIEW MODE User Option allows the user to view
the following system parameters:
a. Log
b. Devices on the loop
c. Faults
d. Input Events
e. Disablements on the loop
f. Maintenance Log (ID60 only - requires access level 3)
g. Alarm Count
h. Voltages
i. Version (system and loop software).

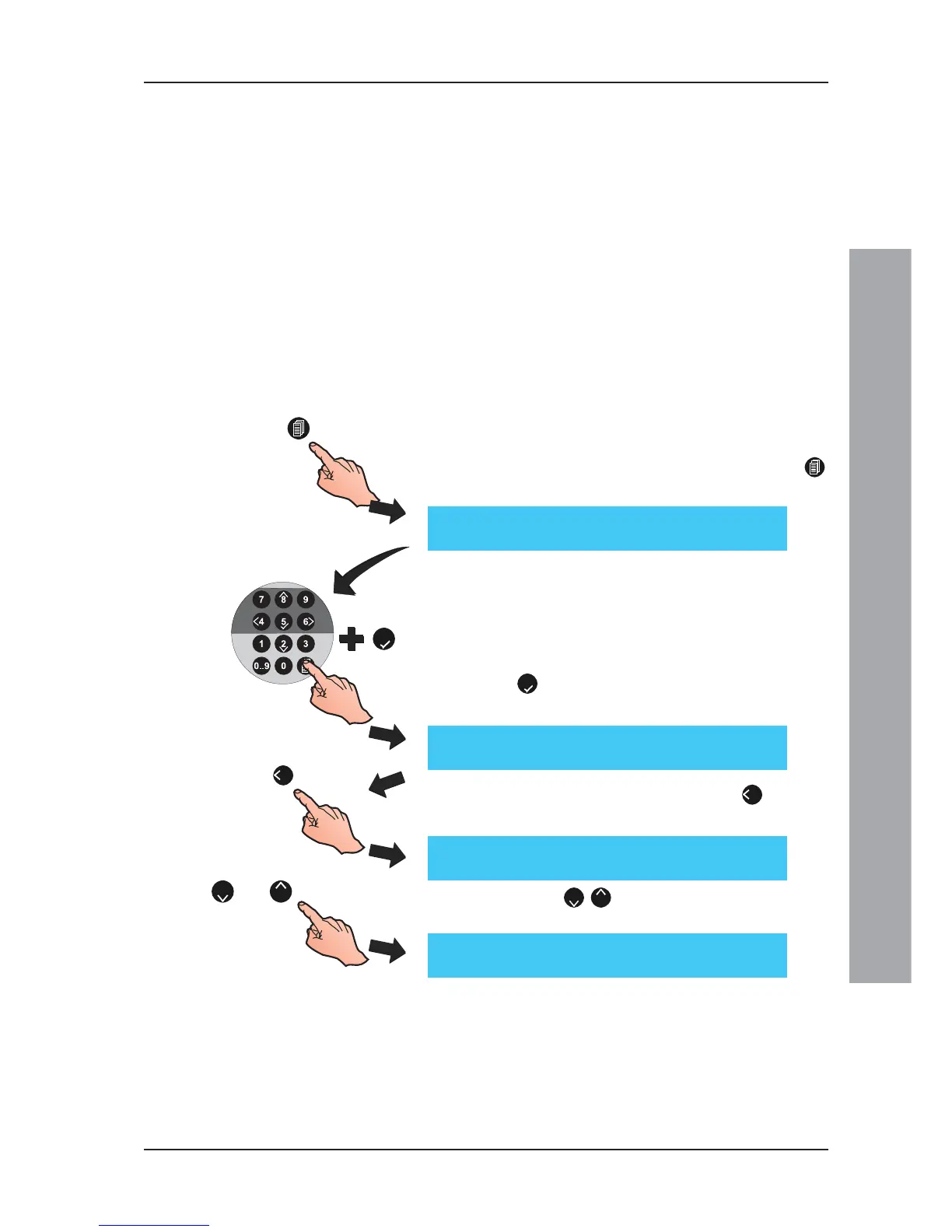

To display the View Mode menu:
1 From the ‘Status: NORMAL’ message, press the ‘ ’
button. The LCD prompts for a Level 2/3 access code.
Note: If an incorrect access code is entered, the LCD
displays ‘ERROR - INCORRECT PASSCODE ! ! !’.
After one minute the LCD returns to the ‘Status:
NORMAL’ message.
2 Either turn the keyswitch or, using the numeric keypad,
enter the correct Level 2 access code and confirm using
the ‘
5
’ button. The Level 2 menu is displayed with the
user number ([U0] to [U9]) in the top left-hand corner.
3 Using the numeric keypad, press the ‘
4
’ button to
select the View Mode menu:
4 Press the ‘
2
/
8
’ buttons to display further menu
options:
* ID60 panels only
ACCESS TO MENUS RESTRICTED
Enter Level 2/3 Passcode: . . . . < : BackSp
5
4
[U0] 1 : Test 2 : Disable/Enable 3 : Clock
4 : View Mode 5 : Commission
[U0 View] 1: Log 2: Devices 3: Faults
4: Input Events 5: Disabled ↕ : More
[U0 View] 6: Maint.* 7: Alarm Count
8: Voltages 9: Version ↕ : More
