PROGRAM/ALTER STATUS - Press this key to go to the PROGRAM/ALTER STATUS screen,
which also can be reached from the main menu. This screen will require a password. For
programming instructions, refer to the NFS-3030 Programming Manual.
SIGNAL SILENCE - Press this key to silence all NFS-3030 outputs programmed as silenceable.
SYSTEM RESET - Press this key to reset the system.
1.7.2 More Information
Pressing the More Information soft key displays a screen that contains additional information about
the event shown in the top four lines.

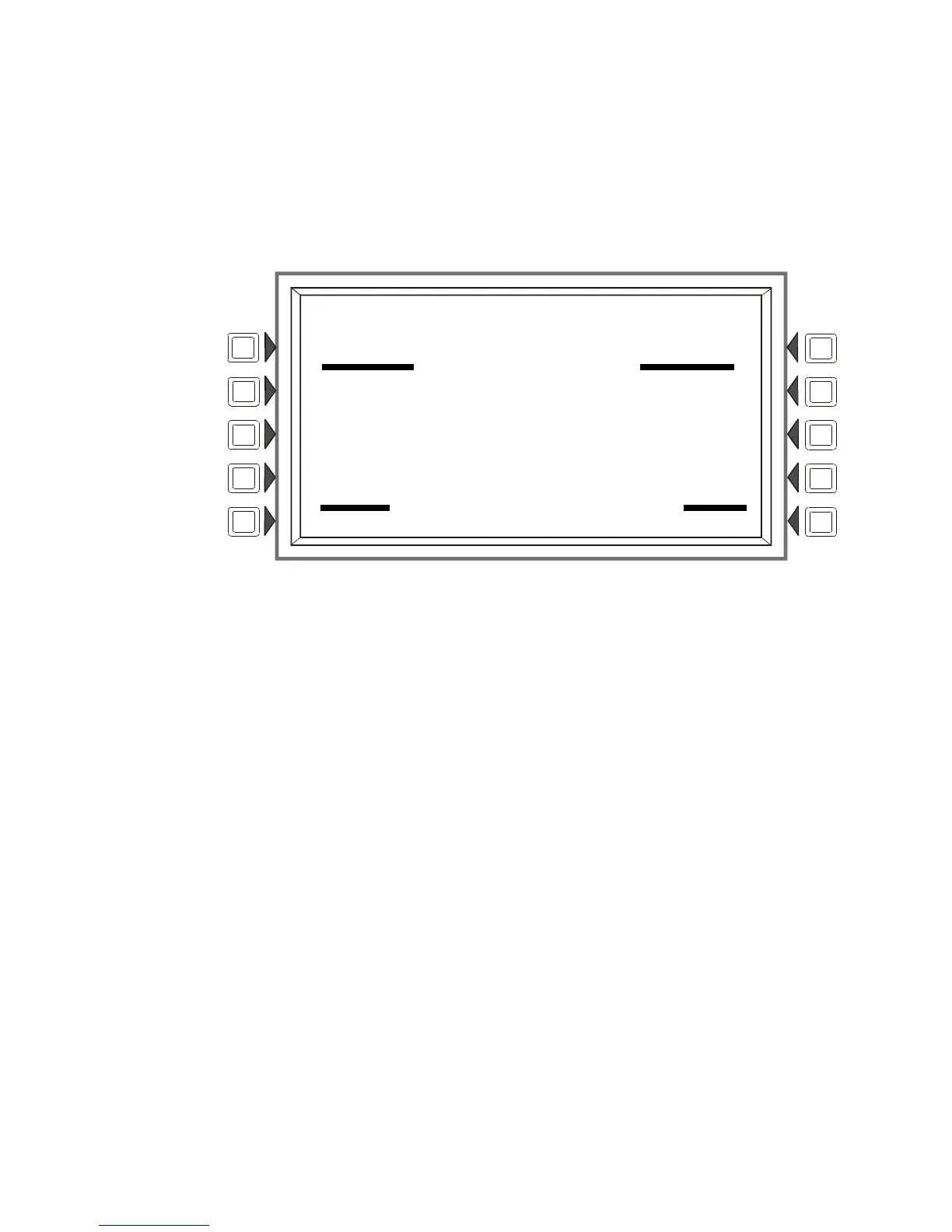

Figure 1.7 More Information Screen
Display
Lines 1 through 4 - Event information
Line 5 - Screen title
Lines 6 through 9 - The Custom Action Message programmed for the point in alarm
Line 10 - blank
Line 11 and 14 - These lines exist only for smoke/heat detectors. They do not display for
wireless smoke detectors.
Line 11
VALUES:
The screen displays the Alarm and Prealarm values that are in effect when more information is
requested. For example, if occupied settings are in effect, occupied values will display.
121% OF ALARM - This field gives the detector reading as it relates to its
preprogrammed alarm level value (indicated in the next line on the screen). The example
above shows the detector exceeding the alarm level by 21%.
145% OF PREALARM - This field gives the detector reading as it relates to its
preprogrammed prealarm level value (indicated in the next line on the screen). The example
above shows the detector exceeding the prealarm level by 45%.
Line 12
The screen displays the Alarm and Prealarm levels that are in effect when more information is
requested. For example, if unoccupied settings are in effect, they will display.
ALARM: 6=1.66% - Six is the preprogrammed alarm level value for this detector: its
value is 1.66%, indicating the percent per foot obscuration value assigned to level 6.
PREALARM: 3=0.47% - Three is the preprogrammed alarm level value for this detector:
its value is 0.47%, indicating the percent per foot obscuration value assigned to level 3.
Line 13
ACTION/STATUS: NONE/VERY CLEAN - This displays the maintenance status of
the device. The message that appears in this field depends on the drift compensation value. A
ACKNOWLEDGED FIRE ALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 SMOKE(PHOTO)
11:58:45A WED JUN 25, 2003 L03D052
INFORMATION/ACTION
CALL 203-555-1212
GO TO ALARM SITE AND INVESTIGATE
APPROACH THE ALARM LOCATION WITH CAUTION
BRING CELL PHONE AND REPORT WHEN ON SITE
VALUES: 121% OF ALARM, 145% OF PREALARM
ALARM: 6= 1.66%, PREALARM; 3= 0.47%
ACTION/STATUS: NONE/VERY CLEAN
PEAKS:56% VERIFY COUNT:02 CO-OP:D100,158
12:22:34P WED JUN 25, 2003
BACK
