Led Display Video Controller VX4 Series User's Manual
www.novastar-led.com 9

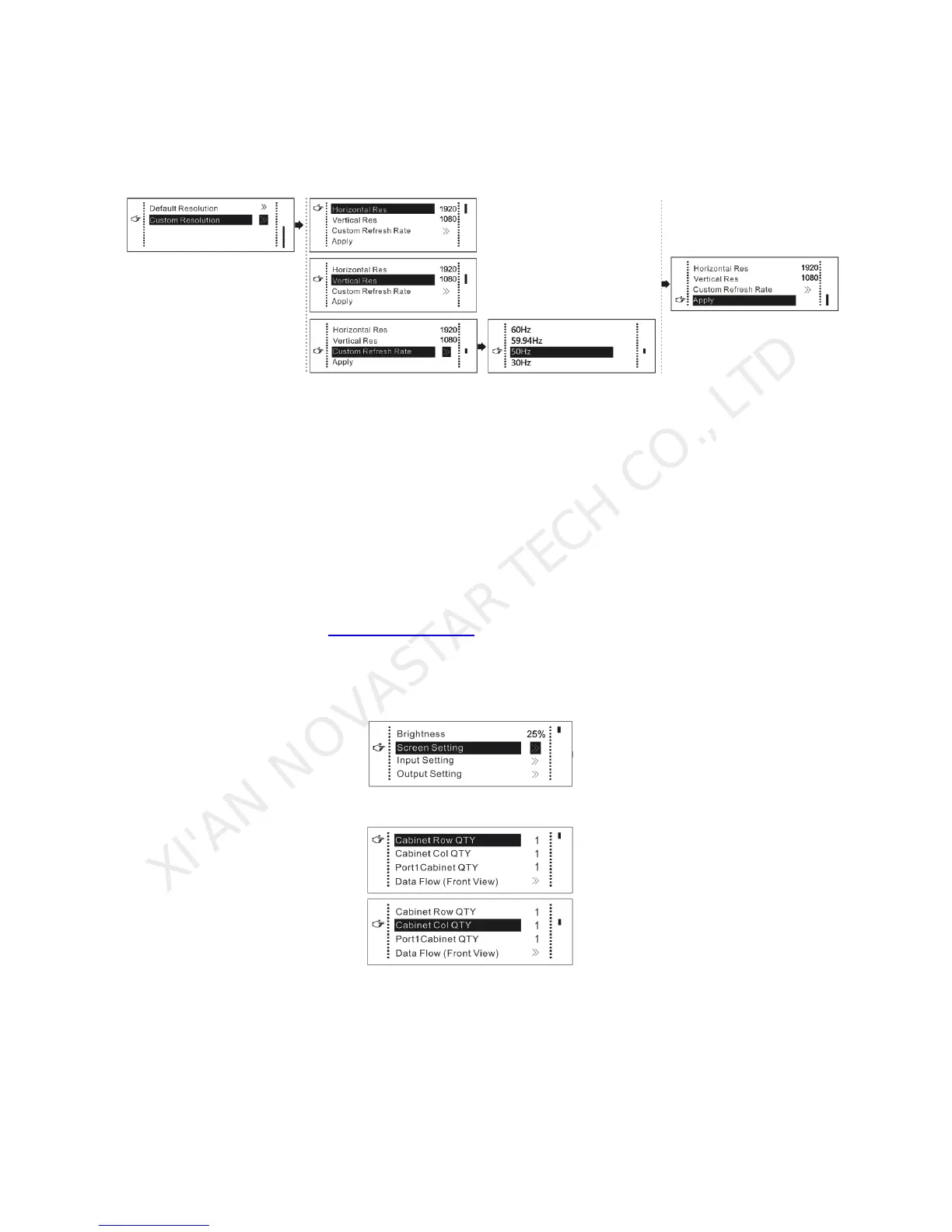

Method two: Custom Resolution.
Set Horizontal Res, Vertical Res and Custom refresh rate and then select "apply" and press the knob
for application. If the application is not confirmed, custom resolution is invalid.
9.2 Step2: Screen setting
The precondition of Screen setting in shortcut is that the screen must be regular rectangle (not
special-shaped), cabinet must be regular rectangle and the size of each cabinet are identical.
Step 1 The screen being power-on, if the cabinet is in normal display, enter into step 2); if the
cabinet is in abnormal display, first load the cabinet file, and save it to the receiving card; see
detailed operation in 9.7 Advanced Setting .
Step 2 Return to the “Screen Setting” submenu. Rotate the button to switch to submenus of other
options respectively to perform configurations, as shown in the following figures:
Step 3 Set Cabinet Row QTY and Cabinet Col QTY according to the actual situation of the screen.
Step 4 Set Cabinet Out1 QTY. The device has some limitations on the cabinet quantity of ports. For
details, see precautions for screen setting a).
Step 5 Set the Data Flow(Front View). Pay attention to precautions for screen setting c), d) and e)
below.
