4 UI Introduction
4.1 Home Screen
After the device is powered on, the home screen showing device related information is displayed as follows.

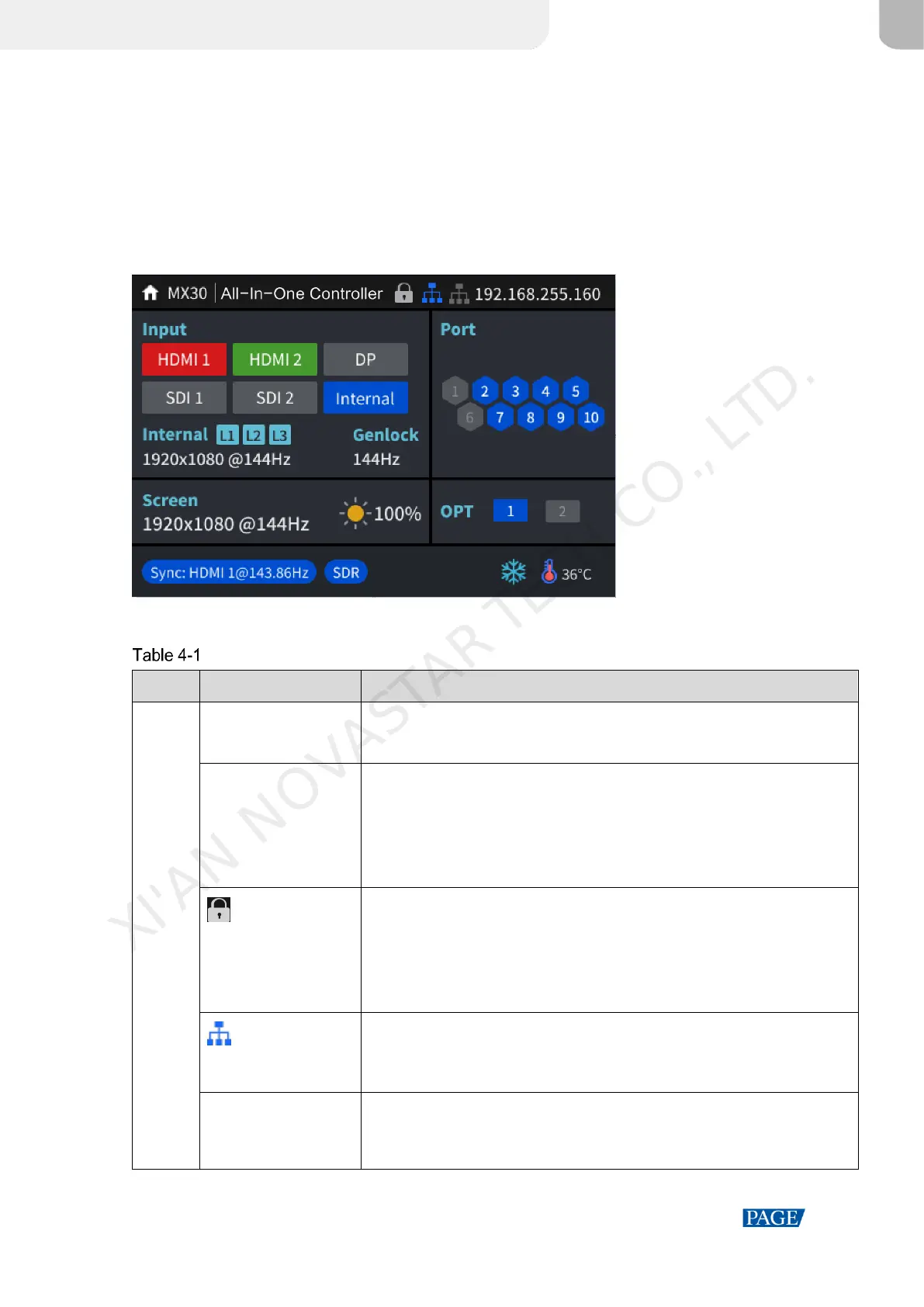

Figure 4-1 Home screen
The home screen shown in Figure 4-1 is described in Table 4-1.
Home screen descriptions
Area
Content
Description
Top line
MX30
The device name
The name can be changed in VMP software.
All-In-Once Controller
The device working mode

All-In-One Controller: The video processing and sending functions are
available.

Send-Only Controller: Only the video sending function is available.
For related operations, please refer to 7.1 Switch Working Mode.
The device button lock status

When the icon displayed: The buttons are locked.

When the icon not displayed: The buttons are unlocked.
Hold down the knob and BACK button simultaneously for 5s or longer to lock
or unlock the buttons.
The connection status of the Ethernet ports

Blue: Connected

Gray: Disconnected
192.168.255.160
The device IP address
For related operations, please refer to 7.3 Configure Communication
Settings.
