2 Appearance

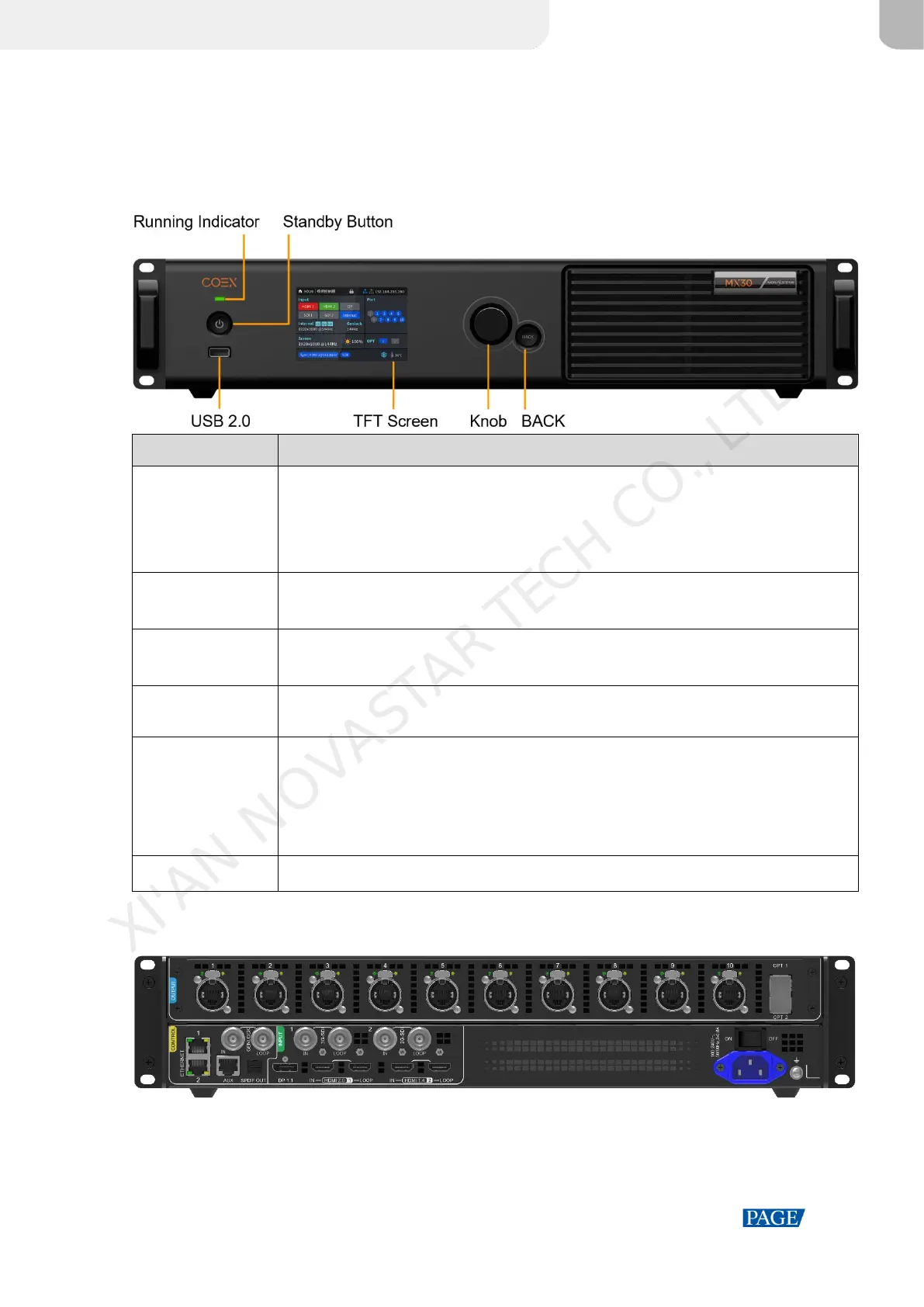

2.1 Front Panel
Name
Description
Running Indicator

Solid red: Standby

Solid blue: The device is being started.

Solid green: The device is running normally.

Flashing red: The device is running abnormally.
Standby Button

Press the button to power on or power off the device.

Hold down the button for 5s or longer to restart the device.
USB 2.0

Connect to a USB drive only to export the device diagnostic result.

Only the NTFS and FAT32 file systems are supported. Others are not supported.
TFT Screen
A 3.5-inch screen to display the device status, menus, submenus and messages for
parameter settings
Knob

On the home screen, press the knob to enter the main menu screen.

On the main menu screen, rotate the knob to select a menu item or adjust the parameter
value. Press the knob to confirm the operation.

Hold down the knob and BACK button simultaneously for 5s or longer to lock or unlock
the buttons.
BACK
Go back to the previous menu or cancel the current operation.
