VX6s All-in-One Controller
User Manual
3 Menu Operations
19

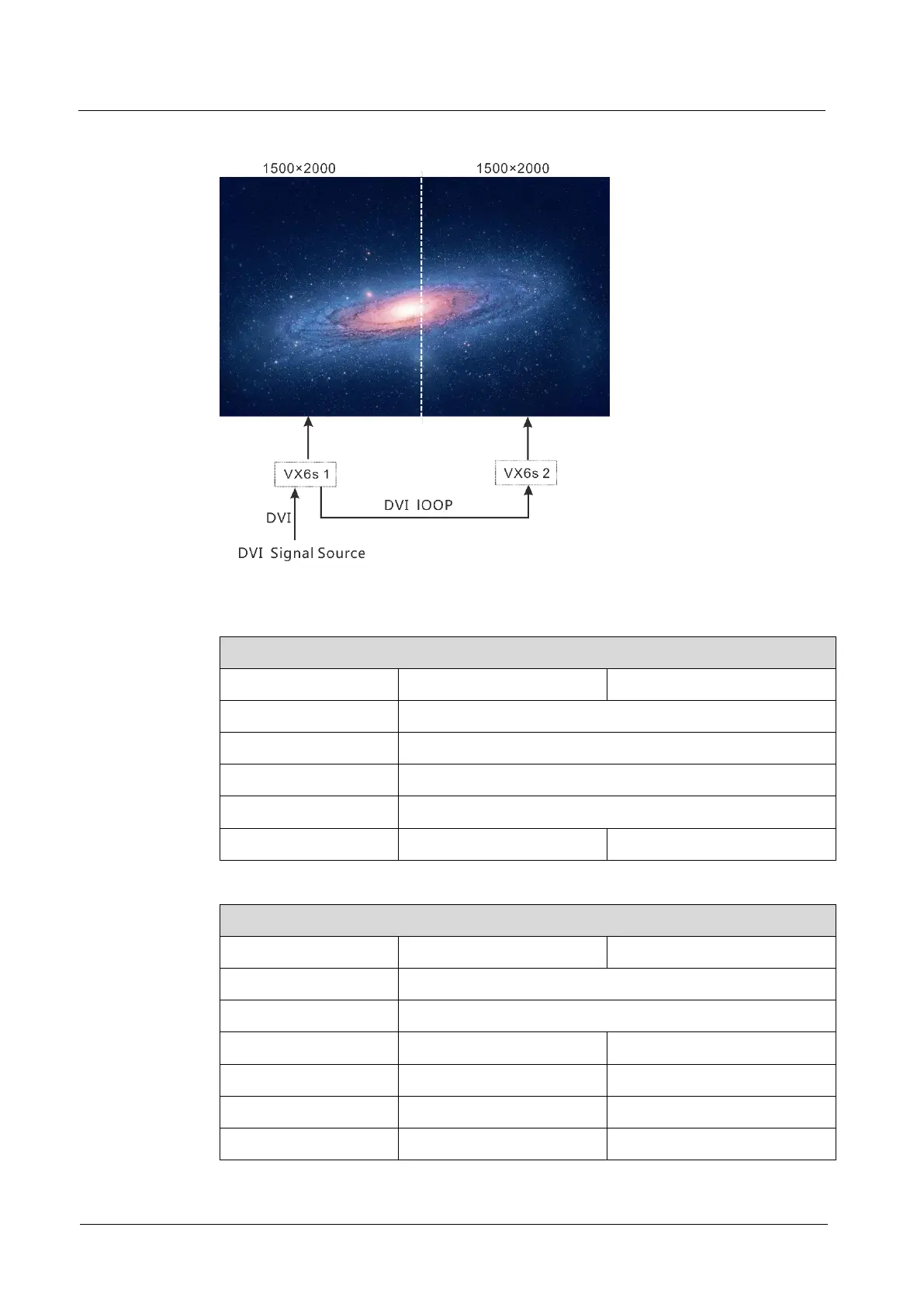

Figure 3-21 Hardware connection for image mosaic
The parameter settings for Equal and Unequal are shown in the below table.
Equal
VX6s 1
VX6s 2
Total Width Pixels
3000
Total Height Pixels
2000
Mosaic Row Qty
16
Mosaic Column Qty
24
Load Area Position
1
2
Unequal
VX6s 1
VX6s 2
Total Width Pixels
3000
Total Height Pixels
2000
Load Area Width
1500
1500
Load Area Height
2000
2000
Load Area Start X
0
1500
Load Area Start Y
0
0
