User Manual TXLD0012
Page | 24 Novoxel.com P/N T2-UM-E-ENG Rev 10

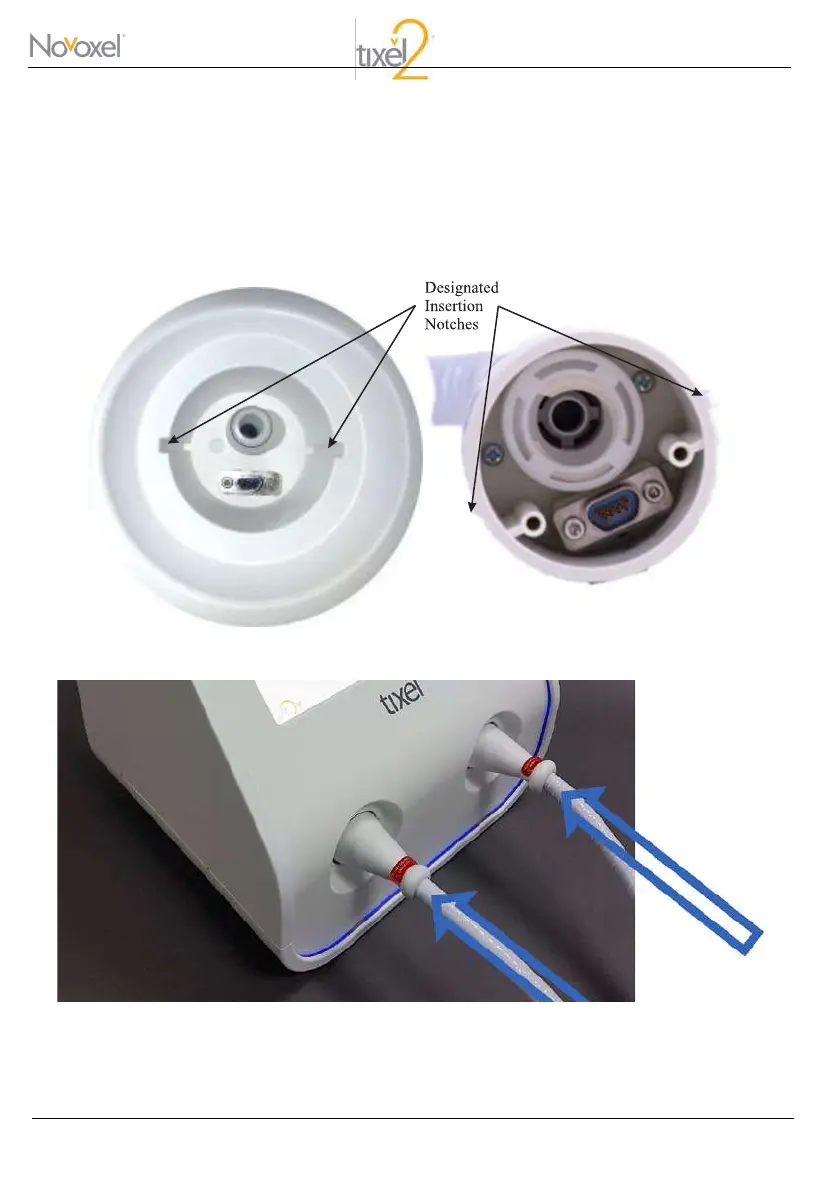

The Handpiece connector inlet and the Handpiece connector are depicted in the following image set.
Note the Handpiece’s connector designated insertion notch and the matching console’s inlet insertion slot.
Plug the Tixel2 Handpiece connector into the Tixel2 Console inlet. Fully insert until a ‘Click’ is heard.
Follow the instructions in the following figures:
The Handpiece Connector Inlets in the Console (Left) and the Handpiece Cable Connector (Right)
Plugging the Tixel2 Handpieces into the Tixel2 Console
