OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
9-4-3. Deletes by the Program Units
The deletion method by the program unit that the setting values of the switch output are registered programs is
deleted. The deletion function by program unit is not available with VS-5F and VS-5F-1.
The following procedures perform deletion.
The deletion is set in the switch setting (SET) mode.
For mode selection methods, refer to the “7-6-1. Selects the Switch Setting (SET) Mode”.

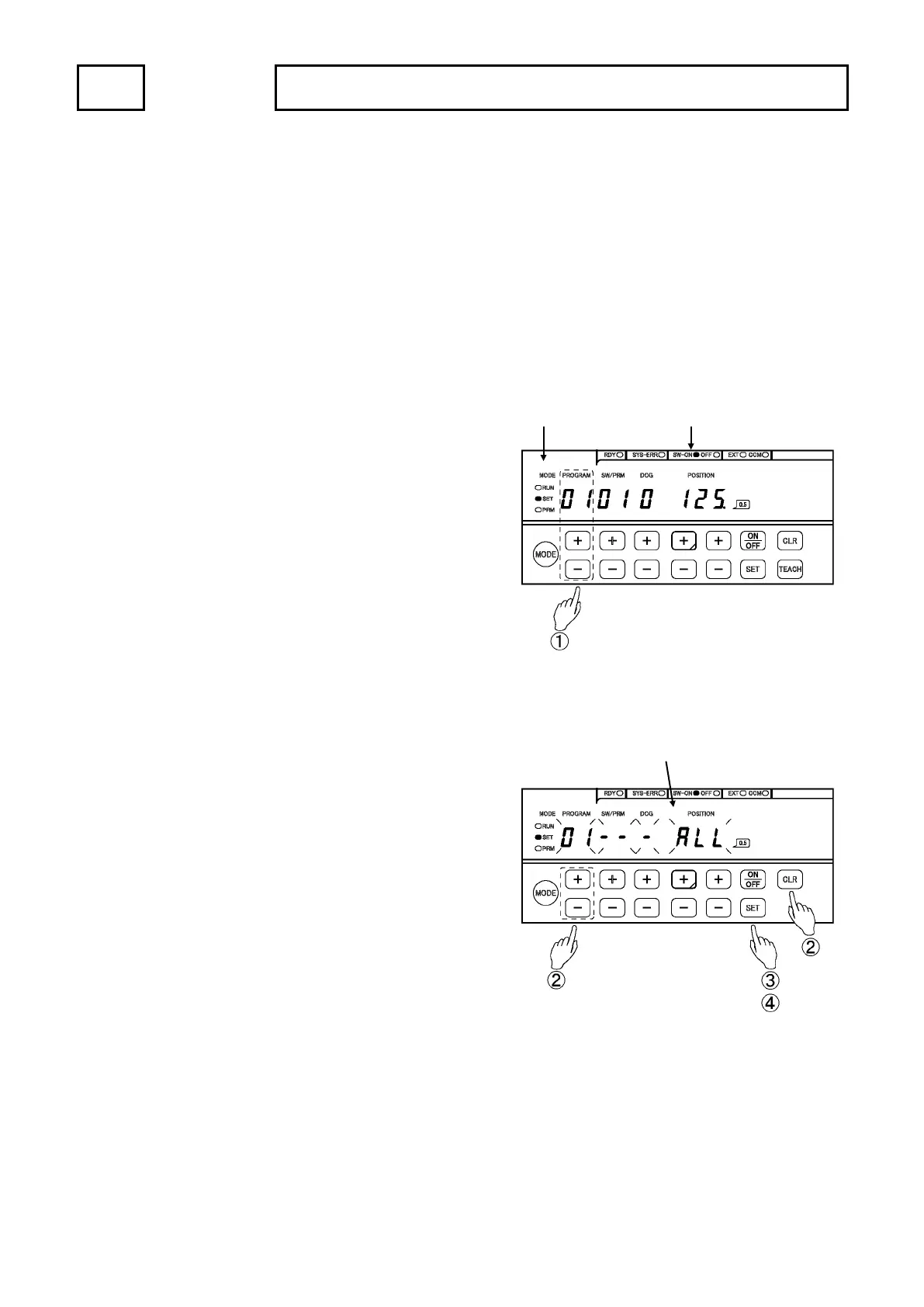

Selects the program number.
Selects the program number by
pressing [+] or [-] key of PROGRAM.
Changes the deletion mode.
Hold down [CLR] key and press [+] or [-] key
of the PROGRAM.
PROGRAM, SW / PRM, DOG, and POSITION
display areas are blinking.
If [CLR] key is pressed in this timing, a deletion by
the program unit will be canceled.
Confirms the deletion.
Presses [SET] key.
PROGRAM, SW / PRM, DOG, and POSITION
display areas are blinking faster.
Reconfirm the setting value of selected
program numbers should be deleted.
If [CLR] key is pressed in this timing, a deletion by
the program unit will be canceled.
Deletion
Presses [SET] key again.
PROGRAM, SW / PRM, DOG, and POSITION
display areas turn ON.
All setting value of the switch output which is
registered program is deleted.
The display area blinks by
②
The display area blinks fast by ③ operation.
SW-ON LED
is ON
SET LED
