NSD VARICAM VS-5F-1 User Manual

38

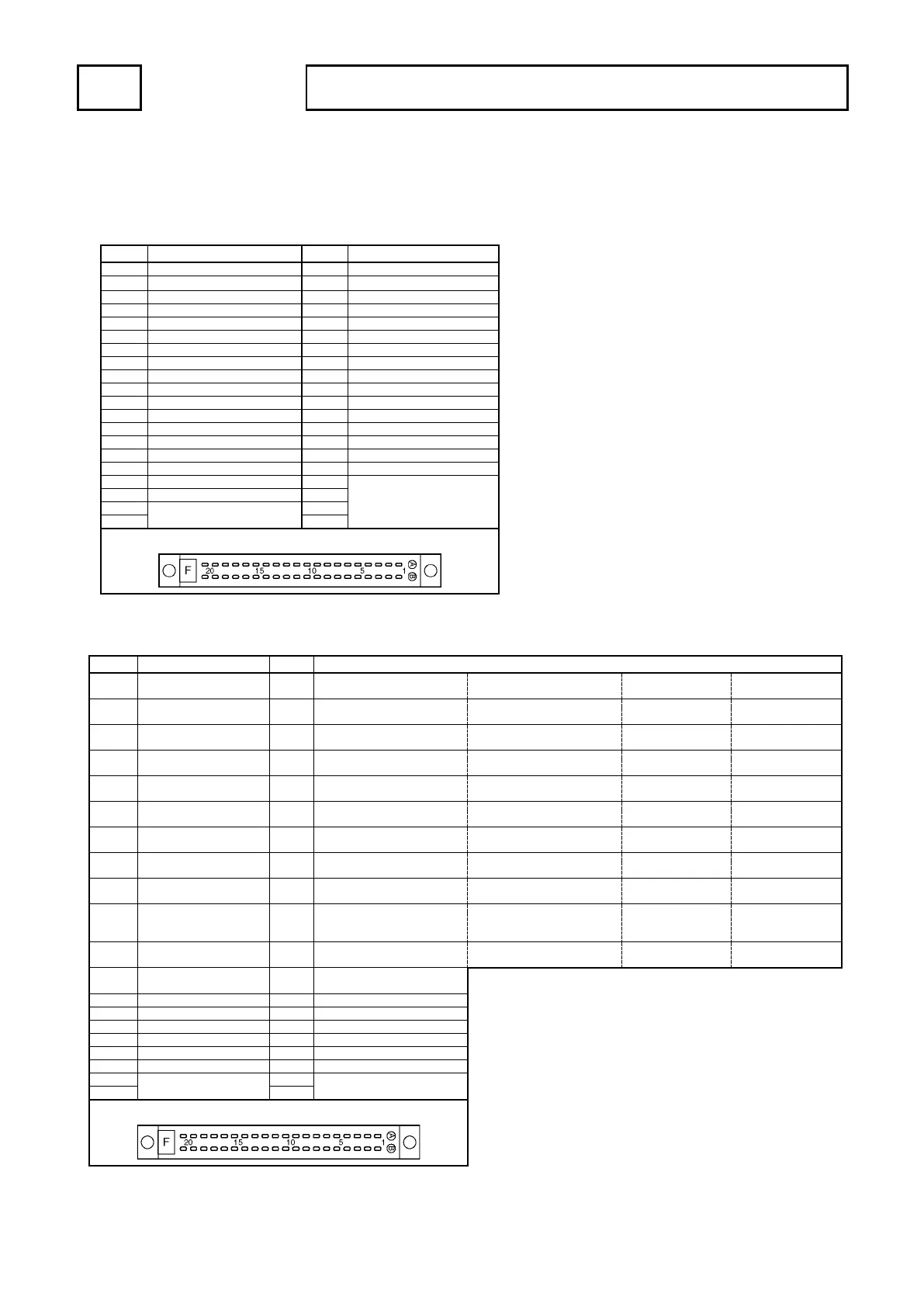

INTRODUCTORY 6. WIRING and CONNECTION
●When using a 32-program, 24-switch output format
① Switch output connector (SWITCH OUTPUT)
[ Connector model: FCN361J040-AU / FCN-360C040-E (FUJITSU COMPONENT LIMITED) ]
Pin No.
Signal name
Pin No.
Signal name
B20 *1
Switch output 1
A20 *1
Switch output 17
B19 *1
Switch output 2
A19 *1
Switch output 18
B18 *1
Switch output 3
A18 *1
Switch output 19
B17 *1
Switch output 4
A17 *1
Switch output 20
B16 *1
Switch output 5
A16 *1
Switch output 21
B15 *1
Switch output 6
A15 *1
Switch output 22
B14 *1
Switch output 7
A14 *1
Switch output 23
B13 *1
Switch output 8
A13 *1
Switch output 24
B12 *1
Switch output 9
A12
B11 *1
Switch output 10
A11
B10 *1
Switch output 11
A10
B9 *1
Switch output 12
A9
B8 *1
Switch output 13
A8
B7 *1
Switch output 14
A7
B6 *1
Switch output 15
A6
B5 *1
Switch output 16
A5
B4
Switch output enabling input
A4
0V output common
B3
Error cancel input
A3
B2
+24V input common
A2
B1
A1
Shows the pin arrangement as viewed from the soldering terminals side.
② BCD output connector (BCD OUTPUT)
[ Connector model: FCN361J040-AU / FCN-360C040-E (FUJITSU COMPONENT LIMITED) ]
Pin No.
Signal name
Pin No.
Signal name
B20
A20 *3
Current position value output
(BCD) 0.5
Current position value output
(gray code (720-division)) 2
0 Speed output 1 Speed output 2
B19
A19
*3
Current position value output
(BCD) 1
Current position value output
(gray code (720-division)) 2
1 Speed output 2 Speed output 4
B18
A18 *3
Current position value output
(BCD) 2
Current position value output
gray code (720-division)) 2
2 Speed output 4 Speed output 8
B17
A17
*3
Current position value output
(BCD) 4
Current position value output
( gray code (720-division)) 2
3 Speed output 8 Speed output 16
B16
A16 *3
Current position value output
(BCD) 8
Current position value output
(gray code (720-division)) 2
4 Speed output 16 Speed output 32
B15
A15
*3
Current position value output
(BCD) 10
Current position value output
(gray code (720-division)) 2
5 Speed output 32 Speed output 64
B14
A14 *3
Current position value output
(BCD) 20
Current position value output
(gray code (720-division)) 2
6 Speed output 64 Speed output 128
B13
A13
*3
Current position value output
(BCD) 40
Current position value output
(gray code (720-division)) 2
7 Speed output 128 Speed output 256
B12
System ready output
A12 *3
Current position value output
(BCD) 80
Current position value output
(gray code (720-division)) 2
8 Speed output 256 Speed output 512
B11
*2
Timing pulse /
Motion detection switch
output
A11
*3
Current position value output
(BCD) 100
Current position value output
(gray code (720-division)) 2
9
Speed output 512 Speed output 1024
B10
A10 *3
Current position value output
(BCD) 200
Speed output 1024 Speed output 2048
B9 *4
Current position HOLD /
External origin set input
A9
Latch pulse output
B8
Program No. input 1
A8
Program No. output 1
B7
Program No. input 2
A7
Program No. output 2
B6
Program No. input 4
A6
Program No. output 4
B5
Program No. input 8
A5
Program No. output 8
B4
Program No. input 16
A4
Program No. output 16
B3
A3
B2
+24V input common
A2
0V output common
B1
A1
Shows the pin arrangement as viewed from the soldering terminals side.
Note:
