OPERATION 7. HOW TO USE BASIC FUNCTION
*1: It is also able to select by pressing [ON/OFF] key.
*2:
These operations and displays are applied to a product that is written "SP1" in the lower right portion of
the front panel.
0: display blinks.
1: display blinks.
7-5-3. Sets the Rotation Direction of ABSOCODER
This setting is designated the rotation direction of ABSOCODER’s shaft in which the current position value
increase.

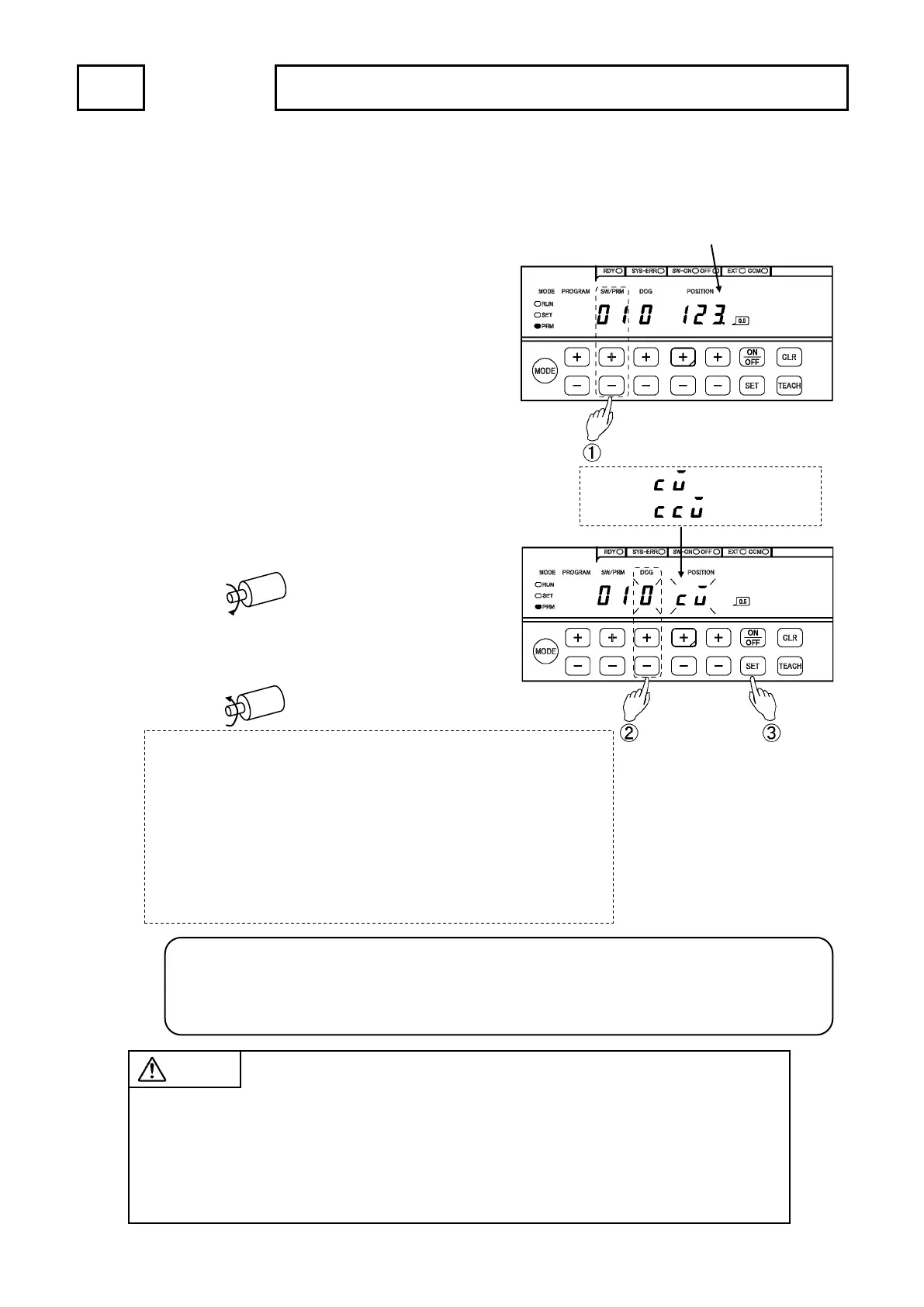

- Sets the parameter by the following procedures.
Selects the parameter No. 01.
Selects “01” by pressing [+] or [-] of the SW / PRM.
Selects the increase direction of
the current position value. *1
Selects the increase direction of the current
position value by pressing [+] or [-] key of DOG.
Select range
0: Increases the current position value by
rotating CW direction.
1: Increases the current position value by
rotating CCW direction.
Enters the increase direction of the current position value. *2
DOG and POSITION display areas are blinking.
If [CLR] key is pressed in this timing, the selecting value
will be canceled.
Presses [SET] key, and then DOG and
POSITION display areas turn ON.
The setting is completed.
ABOSOCODER
The “origin point setting” or “current position setting” must be designated when resetting the
parameter No.01. The machine position and current position value on VARICAM's display don’t
match.
-For the origin point setting, refer to “7-5-4. Sets the Origin Point”.
-For the current value setting, refer to “7-5-5. Sets the Current Position Value”.
Checking the number that is displayed here is not necessary.
To Next Page
