OPERATION 7. HOW TO USE BASIC FUNCTION
*1: It is also able to select by pressing [ON/OFF] key.
7-5-2. Sets the Output Specifications of VS-5FX
This setting is only for using VS-5FX-1.
Designates the combination of program and switch output numbers.
- Sets the parameter by the following procedures.

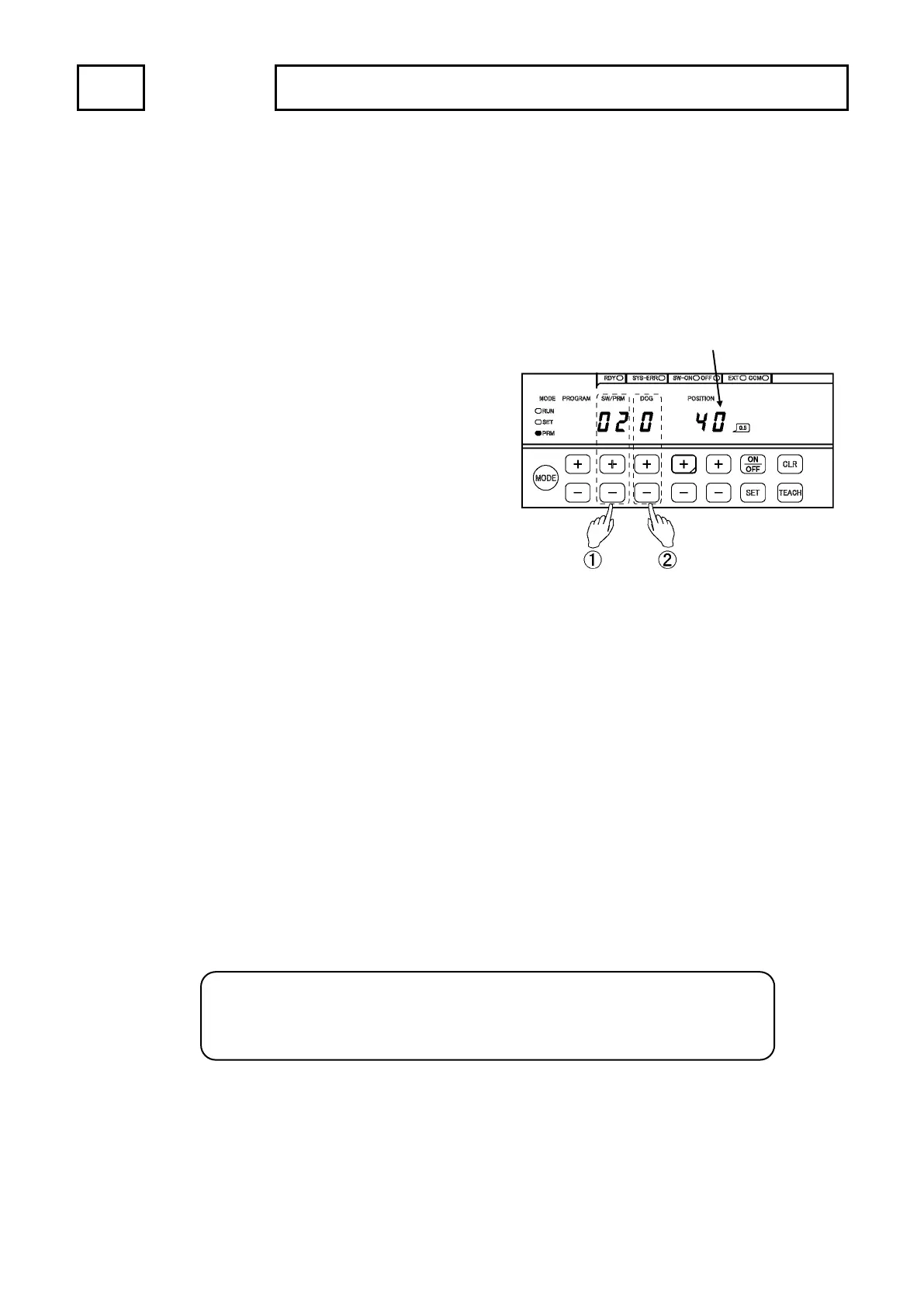

Selects parameter No.02.
Selects “02” by pressing [+] or [-] of the SW / PRM.
Designates the output specification. *1
Selects the output specification
by pressing [+] or [-] key of DOG.
DOG and POSITION display areas are blinking.
If [CLR] key is pressed in this timing, the setting will
be canceled.
Selecting range
0: 16-program, 40-switch
1: 32-program, 24-switch
Confirms the setting value.
Presses [SET] key.
DOG and POSITION display areas are blinking faster.
Reconfirm the selected setting value.
If [CLR] key is pressed in this timing, the setting will be canceled.
Enters the setting value.
Presses [SET] key again.
DOG and POSITION display areas
turns ON.
Enters selected setting value.
Displays numbers of
the selected switch
