NSD VARICAM VS-5F-1 User Manual

48

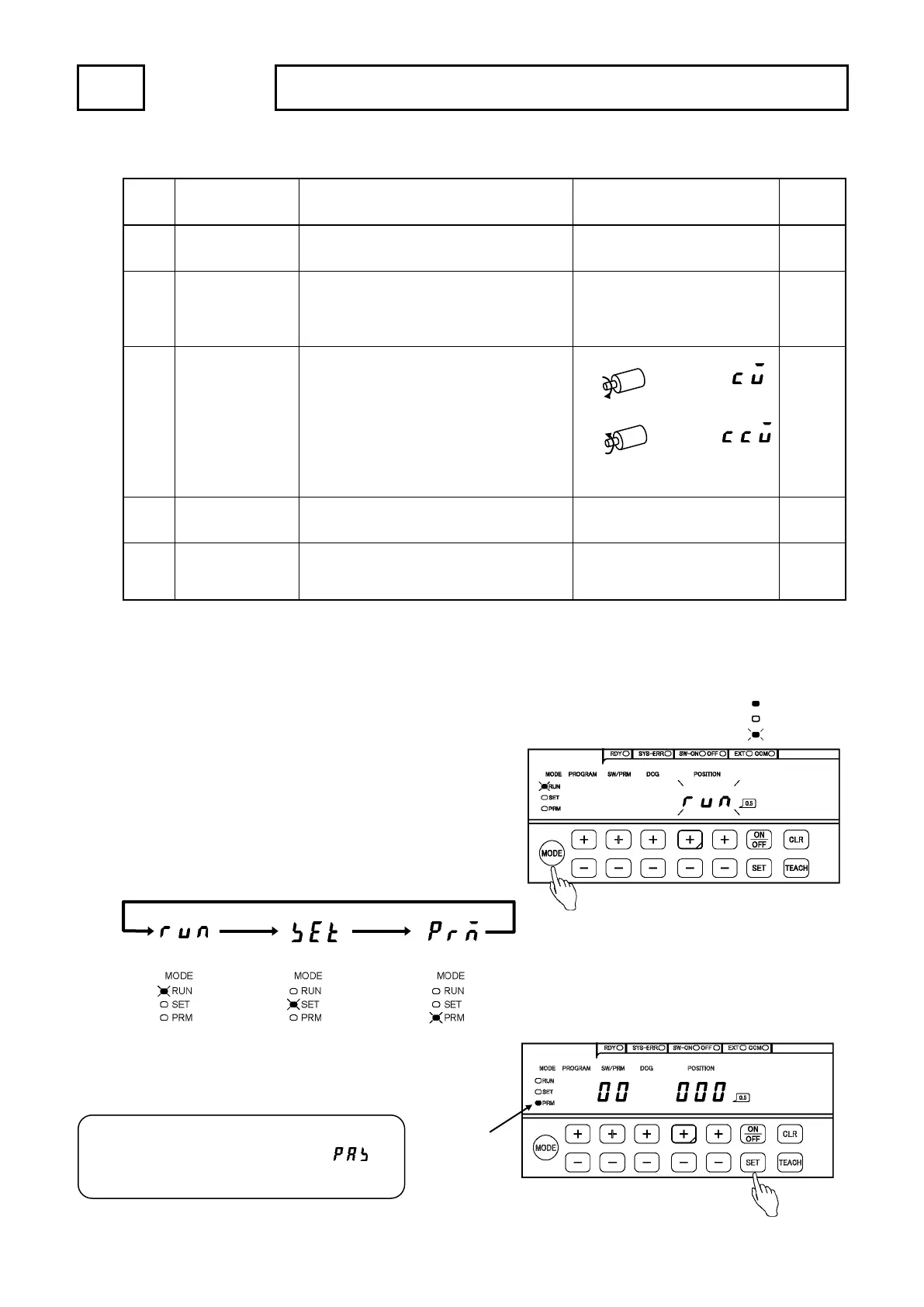

OPERATION 7. HOW TO USE BASIC FUNCTION
●Parameter List
No. Name Description Setting range Initial
value
00
Initial display
Displays “00” at first when selecting the
parameter setting (PRM) mode.
02
VS-5FX output
specifications
This function must be designated at first
when using VS-5FX(-1) after delivery.
Designates
the combination of program
and switch output numbers.
0: 16-program, 40-switch
1: 32-program, 24-switch
0
01
ABSOCODER
rotation direction
Designates the rotation direction of
ABSOCODER’s shaft in which the current
position value increase.
0: Increases the current position value by
rotating CW direction.
1: Increases the current position value by
rotating CCW direction.
0: CW direction
Display:
1: CCW direction
Display:
0
99
Origin point
setting
Designates the machine’s origin point
(000) to VARICAM.
0
98
Current position
setting
Designates the machine's current position
value to VARICAM by the key input.
Setting unit is 0.5
°
.
0 to 359.5
°
0
7-5-1. Selects the Parameter Setting (PRM) Mode
Keeps pressing [MODE] key more than 1 second.
POSITION and MODE display areas are blinking, and
changes to mode selection screen.
Repeatedly presses [MODE] key, and selects the
parameter setting (PRM) mode.
Presses [SET] key.
Changes to the parameter setting (PRM) mode.
Operation (RUN) mode Switch setting (SET)mode Parametr setting (PRM) mode
PRM LED
is ON
LED ON/OFF state
: ON
: OFF
: BLINK
POINT
The password would be already set if "
" is
displayed. Refer to “ APPENDIX 1”.
