OPERATION 7. HOW TO USE BASIC FUNCTION
Setting example
Program No. : 1
Switch No. : 1
ON angle 125.5°
OFF angle 234.5°

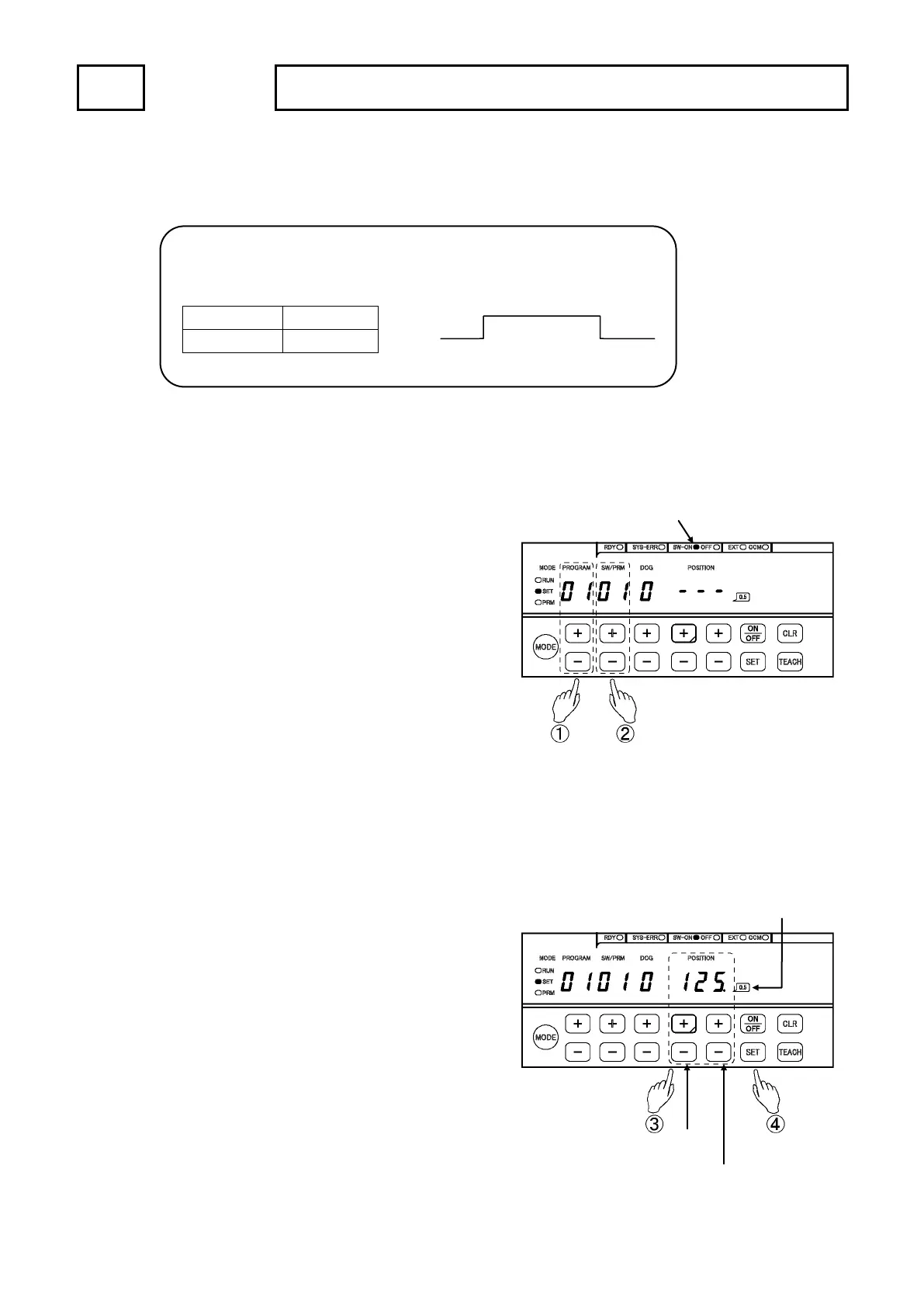

7-6-2. Sets the Switch Outputs
Explains the switch output setting procedure below, and it explains using contents of the setting example.
Sets the switch output according to the following procedures.
Selects the program number.
Selects the program number by
pressing [+] or [-] key of PROGRAM.
Program number selection range
VS-5F(-1) : There is not program function.
VS-5FD(-1) : 0 to 7
VS-5FX(-1) : 00 to 15 or 00 to 31
Selects the switch number.
Selects the switch number by
pressing [+] or [-] key of SW / PRM.
Switch number selection range
VS-5F(-1) : 01 to 24
VS-5FD(-1) : 01 to 24
VS-5FX(-1) : 01 to 40 or 01 to 24
Inputs the ON angle value.
Inputs the ON angle value by
pressing [+] or [-] key of POSITION, and
then the value blinks in the POSITION
display area.
Setting range: 0 to 359.5°
If [CLR] key is pressed in this timing, the inputting
value will be canceled.
Enters the ON angle value.
Presses [SET] key, and then POSITION
display area turns ON.
The ON angle value is entered.
ON
OFF
125.5° 234.5°
By 10°
units
By 0.5°
°
Decimal point is ON : 0.5°
Decimal point is OFF : 0.0
°
SW-ON LED
is ON
To Next Page
