INTRODUCTORY 5. INSTALLATION
5-2. Installation Conditions and Precautions
The VARICAM and ABSOCODER installation procedures and precautions are described.
Refer to “4. OUTER DIMENSIONS” for mounting dimensions.
5-2-1. VARICAM Installation Conditions and Precautions
When installing VARICAM, the following conditions and precautions should be observed.
- Installation site
(1) Avoid sites where the unit is exposed to direct sunlight.
(2) The ambient temperature should never exceed a 0 to 55°C range.
(3) The ambient humidity should never exceed a 20 to 90% RH range.
(4) Do not install the unit in areas where condensation is likely to
occur (high humidity with extreme temperature changes).
(5) Avoid sites where dust is excessive.
(6) Do not install in areas with an excessive amount of salt and/or metal chips.
(7) Do not install in areas where flammable and/or corrosive gases are present.
(8) Avoid areas where splashing water, oil or chemicals are likely to occur.
(9) Avoid areas where vibration and shocks are excessive.
- Installation cautions
(1) Secure tightly with 2-M4 screws.
(2) If the VARICAM is mounted on the DIN rail, secure tight on the rail.
Recommended DIN rail: PFP-50N, PFP-100N, PFP-100N2 [Omron Corporation]
Recommended end plate: PFP-M [Omron Corporation]
(3) In order to improve noise resistance, install as far away as possible from high-voltage and power cables.

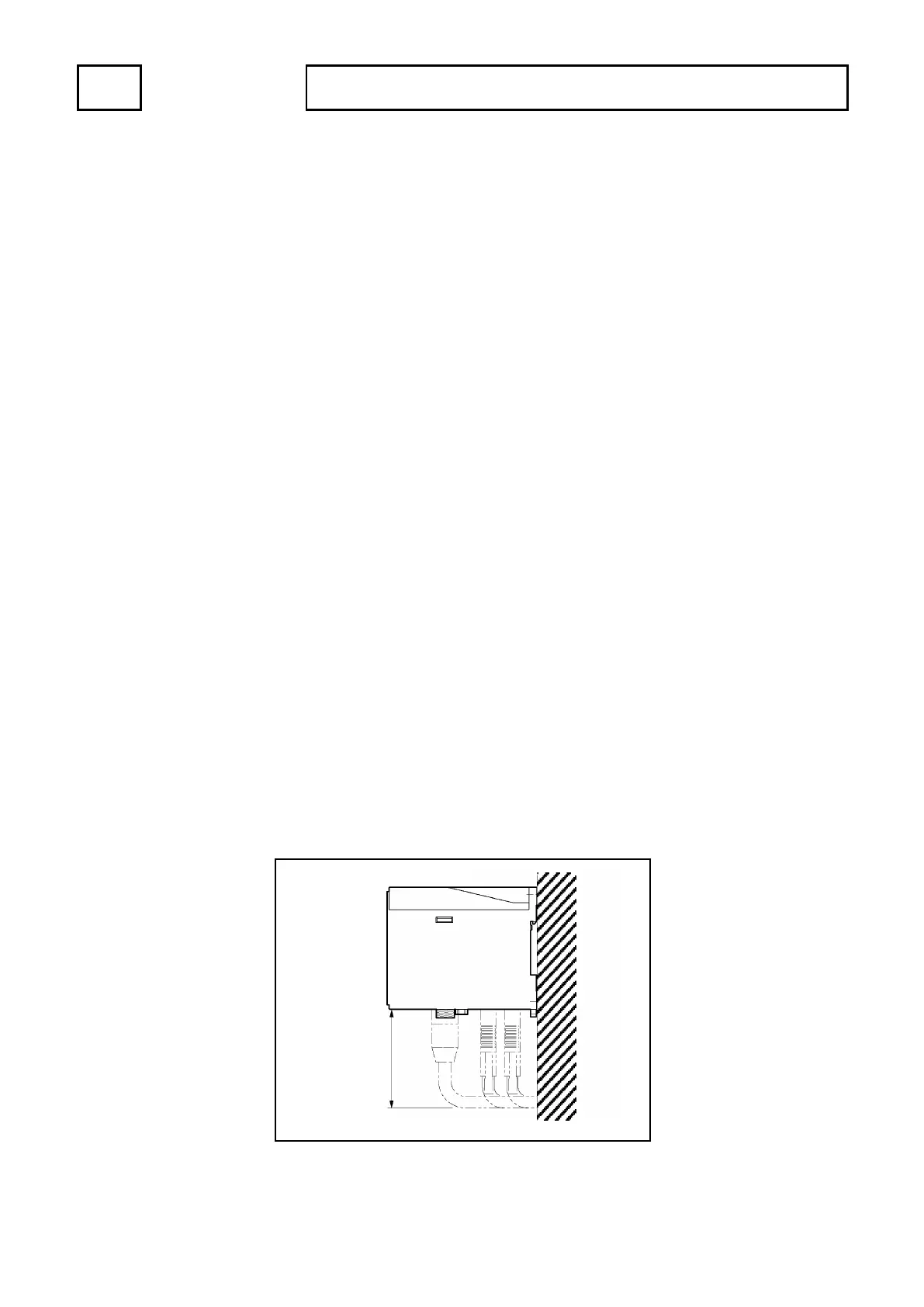

(4) Allow 85mm or more space at the VARICAM’s bottom side for plugging in and unplugging the connectors.
(5) Install inside the control cabinet.
85 mm
To Next Page
