NSD VARICAM VS-5F Series User Manual

28
INTRODUCTORY 5. INSTALLATION

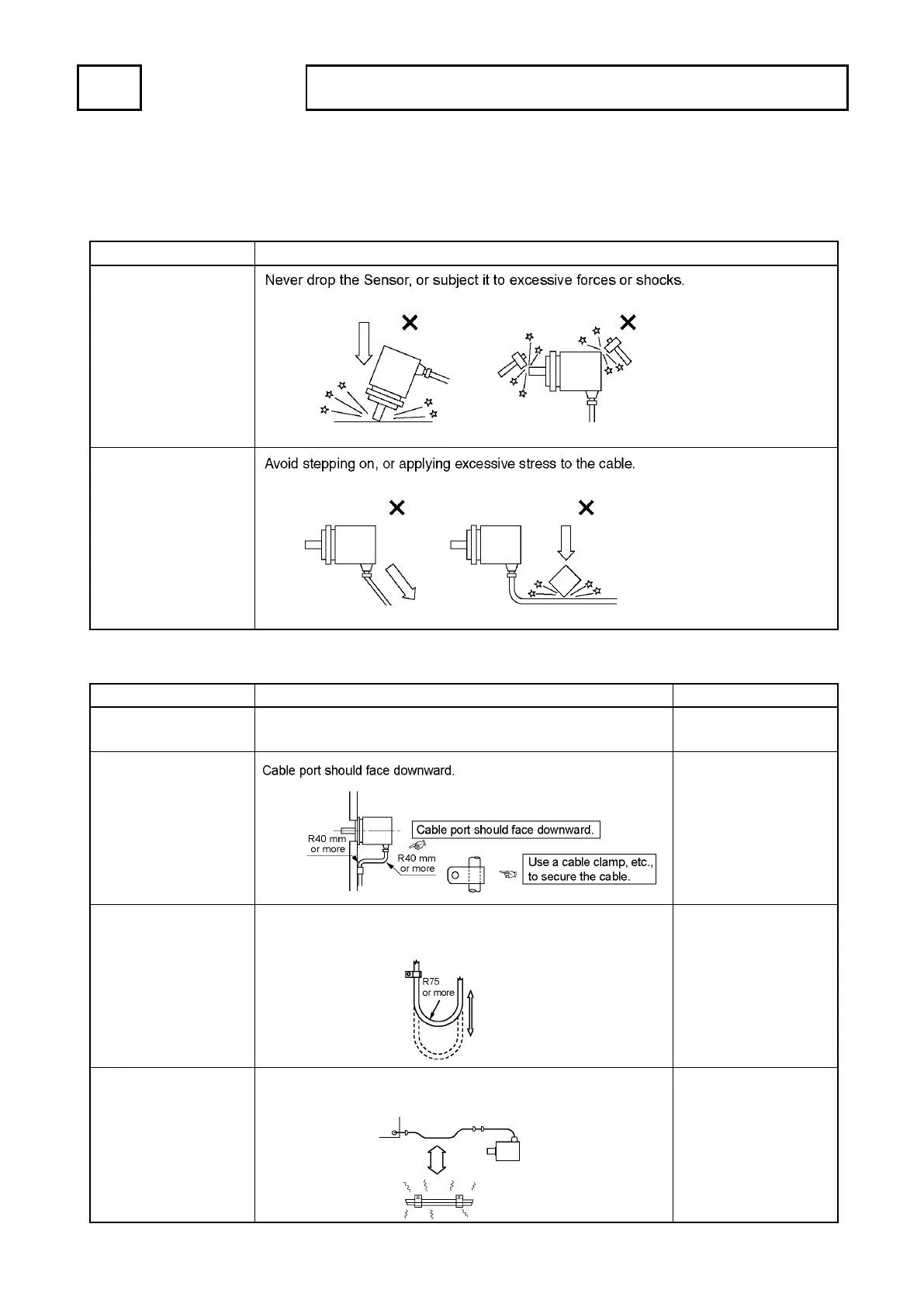

5-2-2. ABSOCODER Installation Conditions and Precautions
The installation conditions and precautions for ABSOCODER are described in this chapter.
- Handling of Turn-type ABSOCODER
Item
Explanation
1) Main unit
2) Cable
- Mounting of Turn-type ABSOCODER
Item
Explanation
Precaution
1) Mounting For details regarding mounting dimensions, refer to each
ABSOCODER dimensions.
2) Cable port
3) Cable
The bend radius for movable parts should never be less
than 75 mm(φ150) (robotic cable).
Do not use the standard
cable for movable parts.
(Use robotic cable.)
4) Wiring
The sensor cable should be located at least 300mm away from
power lines and other lines which generate a high level of electrical
noise.
300mm
or more
