NSD VARICAM VS-5F Series User Manual

29

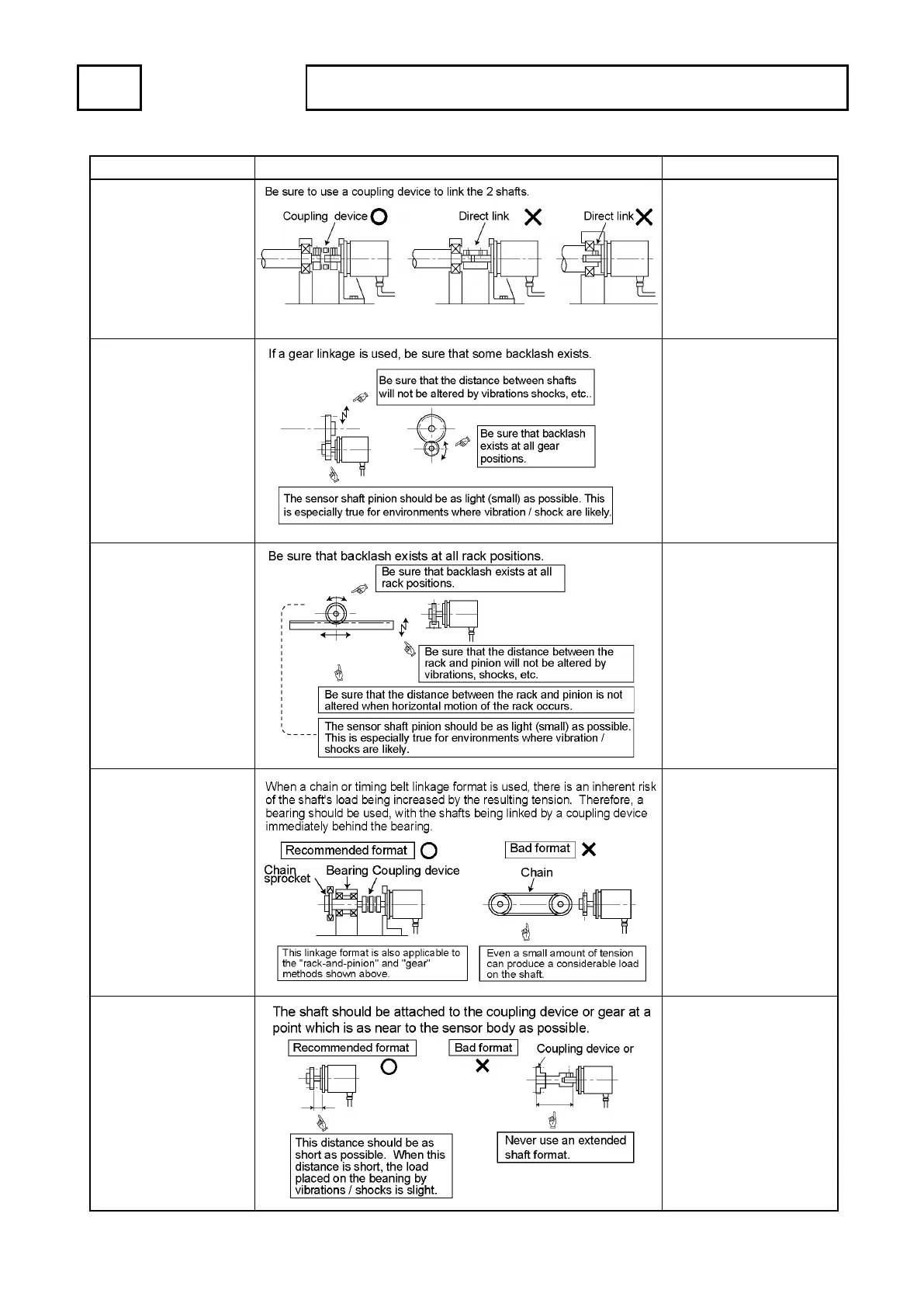

INTRODUCTORY 5. INSTALLATION
- Mounting of Turn-type ABSOCODER
Item
Explanation
Precaution
1) Coupling of machine
shaft and sensor
shaft
A “direct-link” format will
result in shaft fatigue
and / or breakage after
long periods.
Therefore, be sure to
use a coupling device
to link the shafts.
2 ) For gear-type linkage
Incorrect gear mounting
can result in shaft
bending or breakage.
3) For rack and pinion
type linkage
Incorrect rack and pinion
mounting can result in
shaft bending or
breakage.
4) Chain or timing belt
linkage
5) Shaft mounting
position
