NSD VARICAM VS-5F Series - Page 40

30
INTRODUCTORY 5. INSTALLATION
- Coupling of Turn-type ABSOCODER
Item
Explanation
Precaution

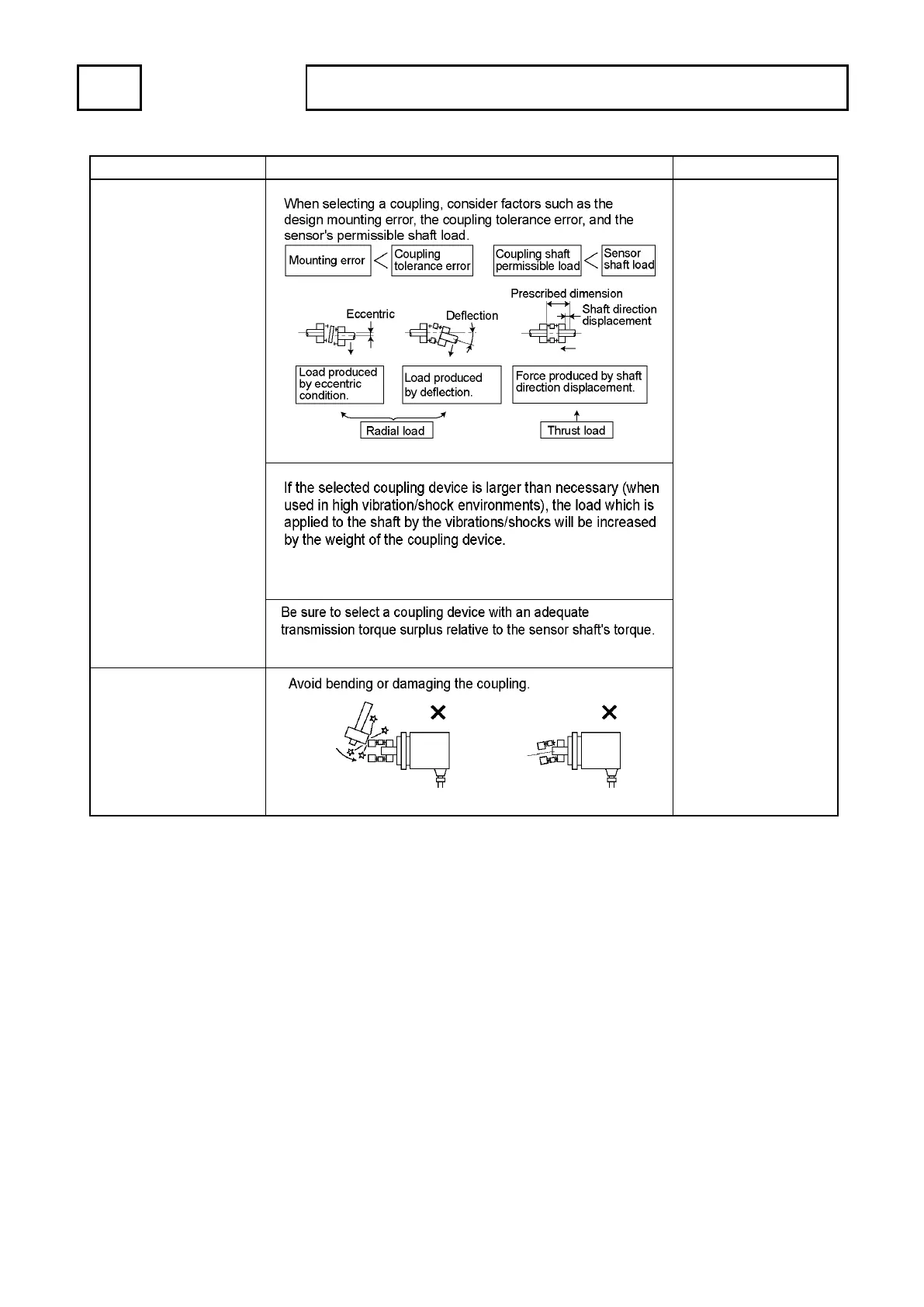

1) Coupling device
selection precaution
1.
The selection of a
larger coupling than
necessary will increase
the shaft load which is
caused by the
mounting error
amount.
Excessive force applied
to the shaft can deform
the coupling and reduce
durability.
2.
3.
2) Coupling device
installation precaution
