NSD VARICAM VS-5F Series User Manual

35
INTRODUCTORY 6. WIRING and CONNECTION

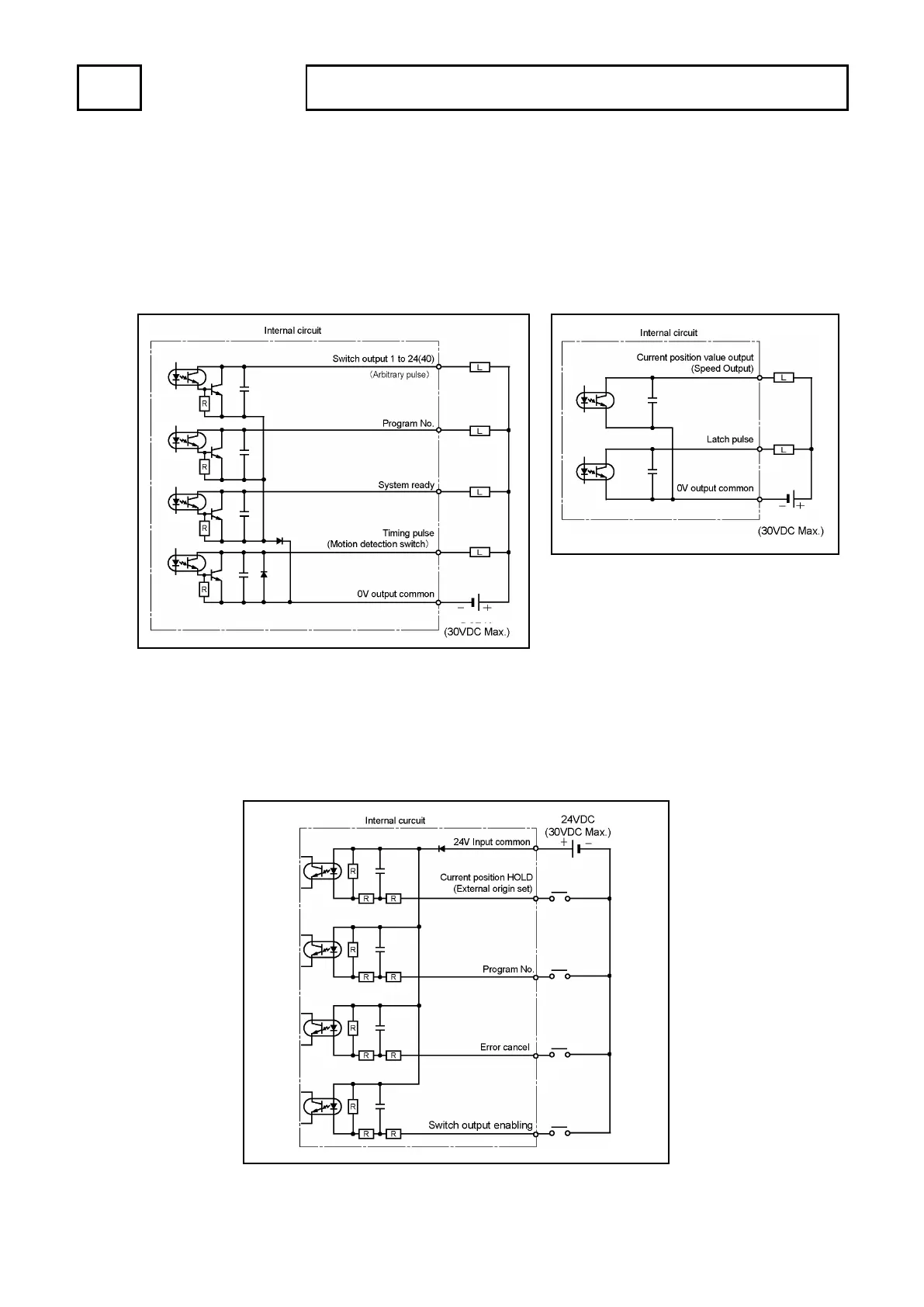

6-3-4. I/O Circuit
(1) Output circuit
① Switch output (Arbitrary pulse), program No., ② Current position value (speed), latch pulse
system ready, timing pulse (Motion detection switch)
(2) Input circuit
Program No., current position HOLD (external origin set), error cancel, switch output enabling
24VDC
24VDC
