NSK Prophy-Mate neo - Connecting Powder Case to Hose; Connecting Handpiece to Powder Case; Filling Cleaning Powder; Usage Guidelines

3~5mm
10~60˚
Coupling
Handpiece connection
Powder case cap
Powder case
AIR
AIR
AIR
AIR
AIR
AIR
Internal nozzles
handpiece release collar
English
6 7

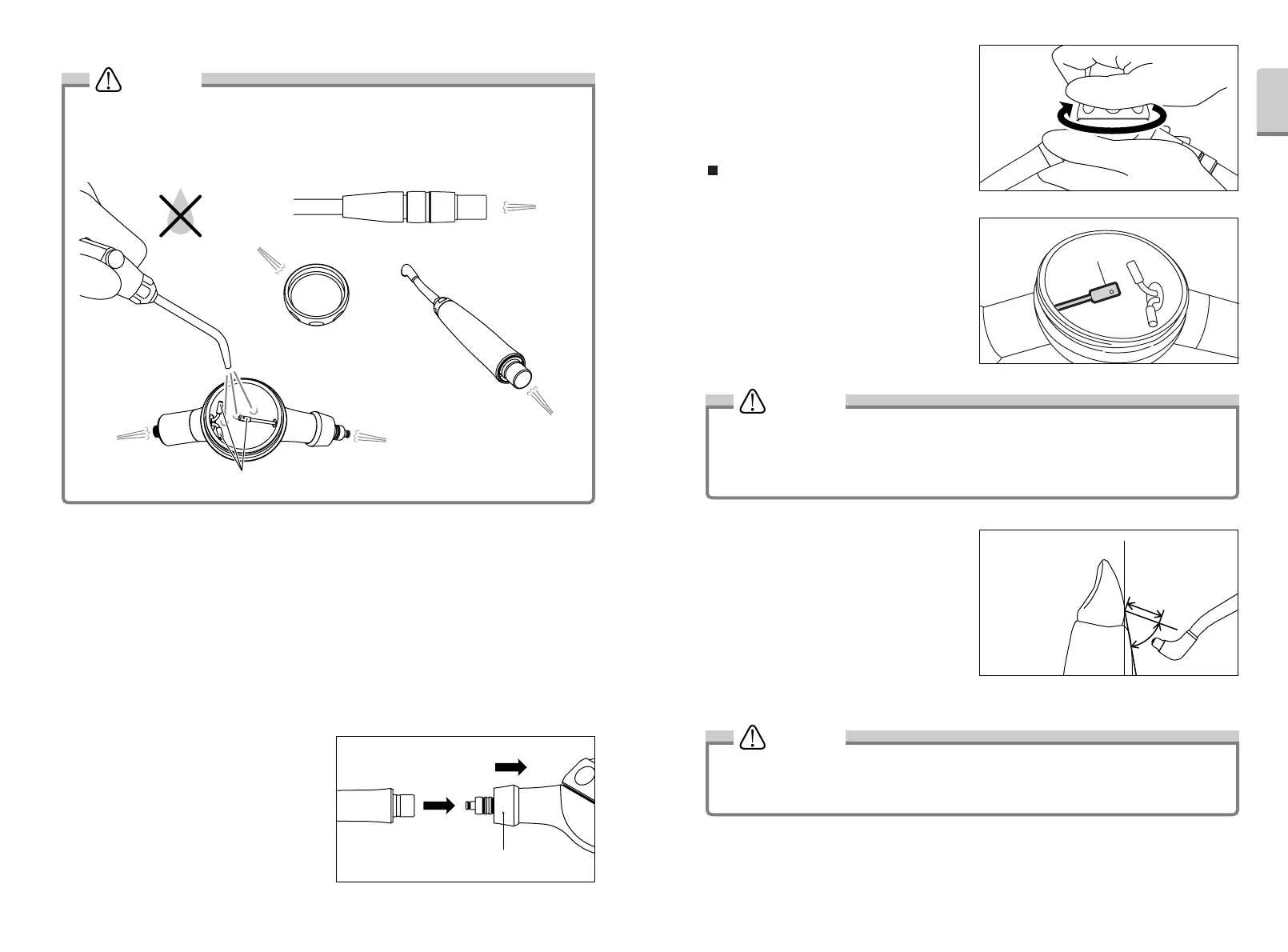

3-3 Connecting handpiece to Powder case
Pull back the handpiece release collar on the powder
case and push handpiece straight on to the
connection. Let go off the release collar once
handpiece is in place. (Fig.1) Once connected gently
pull handpiece to ensure proper connection.
Fig. 1
3-4 Filling Cleaning Powder
Open one sachet of cleaning powder and fill into
powder case.
Always tighten powder case cap after opening and
closing. (Fig. 2)
When using bottle of FLASH Pearl (Option)
Open the Powder Case Cap, and fill the powder
into until Internal Nozzle (Fig. 3) and firmly tighten
the bottle cap.
FLASH pearl (Bottle Type Contains 300gms x 4)
Order No. Y900 698
3-5 Use
After filling the powder case, operate the Prophy-
Mate neo over the spittoon for 2 to 3 seconds to
ensure good flow of powder and water before using it
on the patient. Use the nozzle 3 to 5mm away from
the tooth surface at angles of 10 to 60 degrees.
(When using PROPHY MATE cleaning powder, use at
angles of 60 to 90 degrees.)
Fig. 2
Fig. 4
• Always dispose off left over powder. Do not store any open sachets for later use. Powder in opened
sachets will attract moisture and will clog powder channels.
• Use NSK-made cleaning powder. Other companies’ cleaning powder different in particle size may
cause clogging and not deliver full performance.
In order to prevent the patient from swallowing large amounts of cleaning powder, make sure you use
high volume suction and cotton wool rolls in conjunction with the Prophy-Mate neo, avoid long
continuous use and allow the patient to rinse at appropriate times.
3-2 Connecting Powder case to Handpiece Hose
Connect the hose to the powder case.
• PMNG-PTL-P, PMNW-PTL-P
Connect FM-CL (2,3,4-hole), PTL-CL-4HV (6-pin), or PTL-CL-FV (5-hole) coupling to the handpiece
hose. In case you have any of these couplings mounted on the handpiece hose, you can just simply click
the Prophy-Mate neo handpiece to the coupling.
• 4-Hole, 3-Hole, or 2-Hole type powder case (PMNG/W-M4-P, PMNG/W-B2-P)
Connect the powder case directly to the corresponding handpiece hose. Fasten the hose nut tightly.
• Use with Other Handpiece Manufacturers’ Coupling
(PMNG/W-QD-P, PMNG/W-KV-P, PMNG/W-WH-P, PMNG/W-BA-P, PMNG/W-SR-P)
Check with the instruction manual of the coupling you have and connect Prophy-Mate neo accordingly
Before connecting each part, thoroughly dry the coupling, handpiece, hose joint section of the powder
case, inside of the powder case, and nozzle.
Also, perform idle running with air alone to blow off any internal water.
CAUTION
CAUTION
CAUTION
Close
Internal nozzles
Fig. 3
