English
4 5
3. Operation
Prophy-Mate neo handpiece 1
Nozzle 1 each for 60˚ and 80˚
(The 60º nozzle is already fitted on the handpiece.)
Powder case 1
Maintenance kit
Nozzle wire Large: 1 for the root of the nozzle
Small: 1 for the tip of the nozzle and inner nozzles
Cleaning wire 1 (for other uses)
Cleaning Brush 1
Cleaning Powder (FLASH pearl) 5 sachets
Nozzle Wrench 1
Oil 1
Blower Nozzle 1
Spare parts
Powder case cover 2
O-rings (Handpiece end) 1 set
O-rings (Coupling end) 1 set
The maintenance kit and spare parts are stored in the accessory case.
(
can be connected to the coupling to supply dry air to remove powder residues
on the Prophy-Mate neo and its components
)
(One is fit to the powder case.)
(NSK PHATELUS coupling only)
2. Standard Packaging Content
• Avoid long-time continuous use, and allow the patient to rinse at appropriate times.
• Never hit or bang the powder case and powder case cap as this may cause the powder case or
powder case cap to scratch or crack.
• Never take the Prophy-Mate neo apart during operation. Never pull the handpiece release collar or the
coupling release during operation. Attempting to do this may cause components of the Prphy-Mate
neo and the cleaning powder to fly off.
• Use this product at the correct air pressure only.
• Thoroughly dry the Prophy-Mate neo and all its components inside and out before use.
• Be very careful to avoid cleaning powder entering anybody’s mucosal areas (eyes, nose etc) other
than the oral cavity. Also, protect the face with a towel, etc., or protective glasses, etc., to prevent
entry of cleaning powder into eyes.
If the patient wears contact lenses, the contact lenses should be taken out before treatment.
• If chemicals, oils, etc., adhere to the powder case cover, wipe them off immediately. Leaving them as
they are will cause breakage.

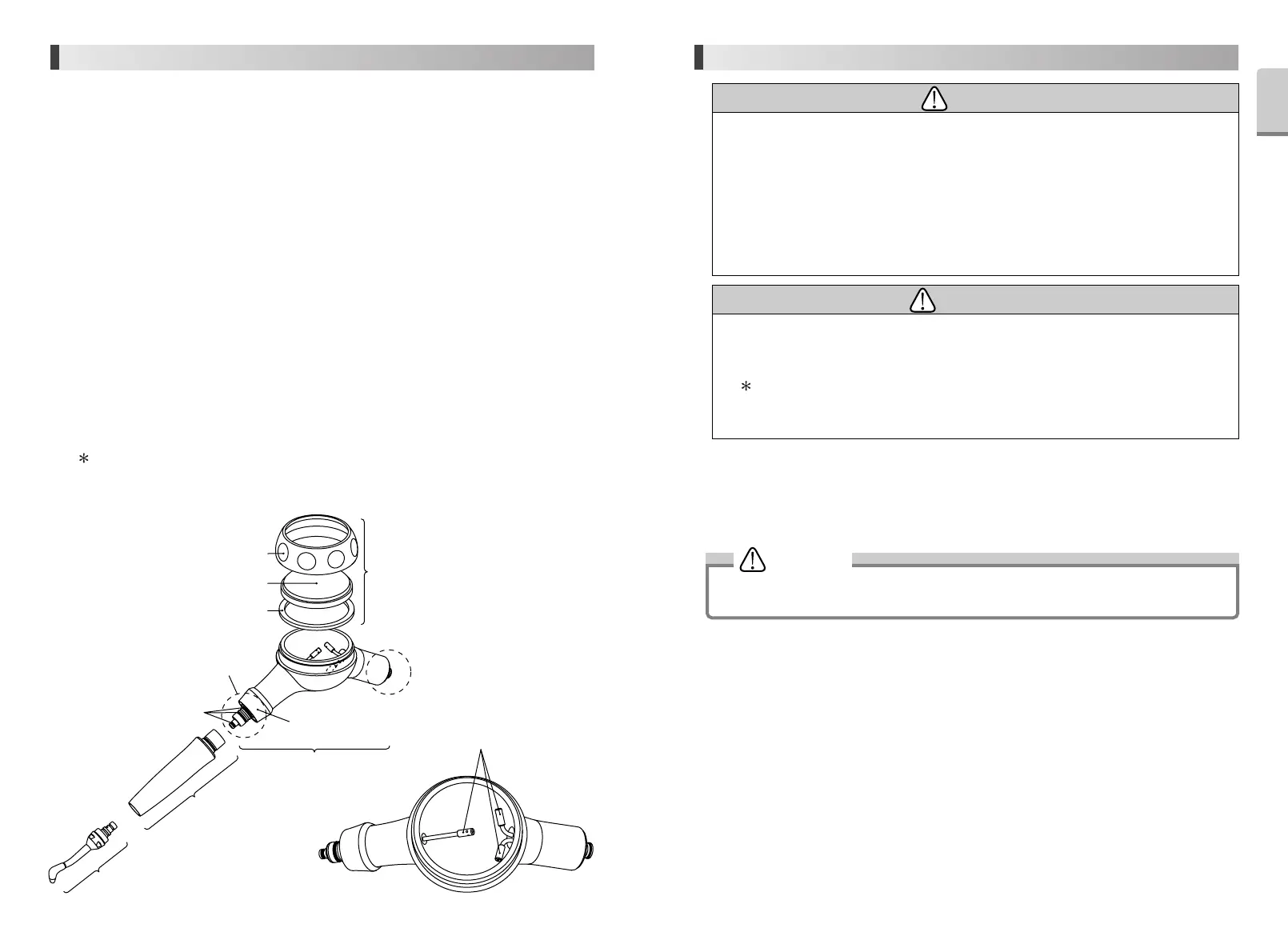

Part name
3-1 Air Pressure
Set the air pressure at the handpiece hose connection at 0.25 - 0.35 MPa (2.5 - 3.5 kgf/cm
2
).
Higher air pressure could cause the powder case and powder case cap to crack or fracture, which
leads to injury.
WARNING
CAUTION
WARNING
Cover holder
Rubber packing
Powder case cover
Powder case cap
Handpiece joint
O-rings
Powder case
Handpiece release collar
Handpiece
Internal nozzles
Hose connection
Nozzle
To Next Page
