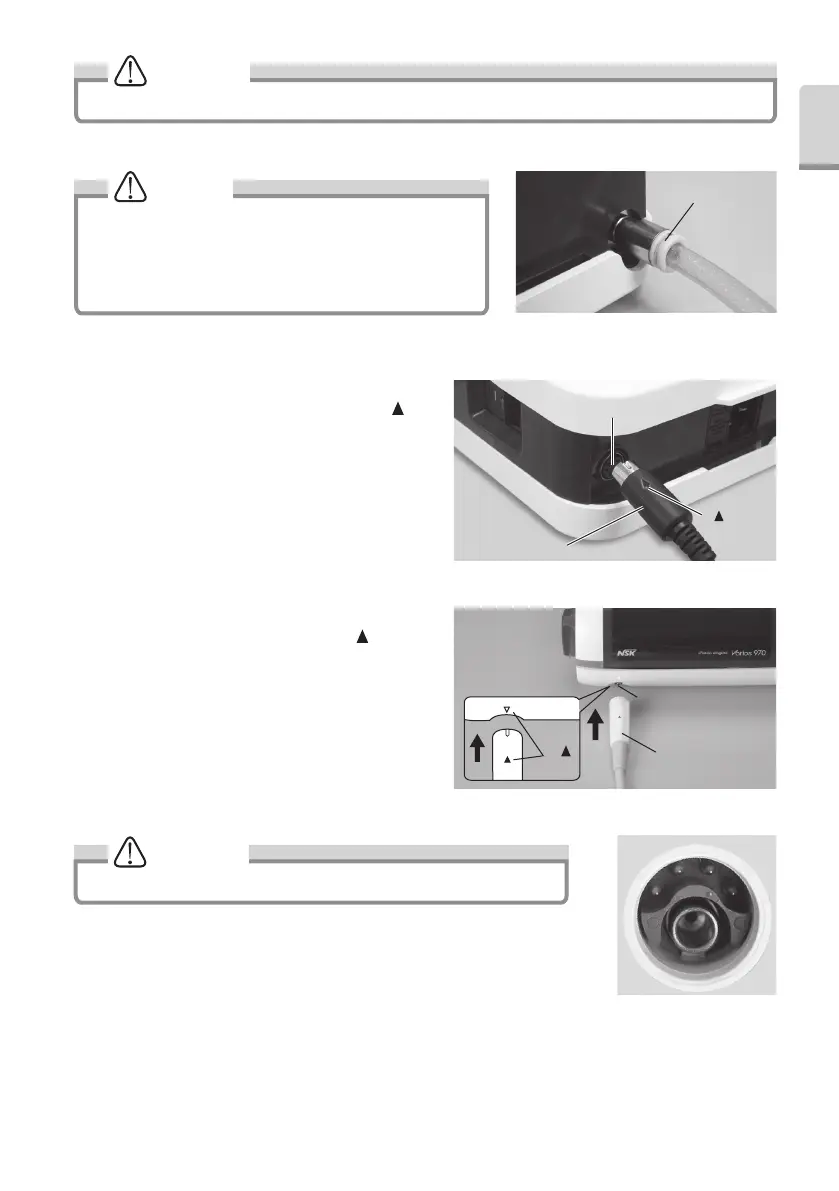

English
7
NOTICE
CAUTION
CAUTION
• Insert the Water Tube firmly into Control Unit.
Pushing the White Ring, (the Quick Connector Release Ring) on
the Tap Water Connector, gently pull the tube to remove. (Fig. 7)
When the water tube is not connected, mount the cover on the
Tap Water Connector.
Ensure the water from the dental unit runs clear before connecting to the scalar.
(2) Foot Control Connection
Connect Foot Control Plug and the Control Unit with [ ]
mark on the upper surface of the plug. (Fig.8)
(3) Handpiece Cord Connection
Insert Handpiece Cord Plug into Control Unit. [ ] Mark side
is upper surface. Do not insert it up-side-down. (Fig.9)
Check that the Handpiece Cord Plug is clean & dry before connecting. (Fig.10)
Fig.7
White Ring
Fig.8
Foot Control Connector
Foot Control Plug
[ ] Mark
Fig.9
Handpiece Cord Connector
Handpiece Cord Plug
[ ]
Mark
Fig.10
