NSK Varios Combi Pro User Manual

26

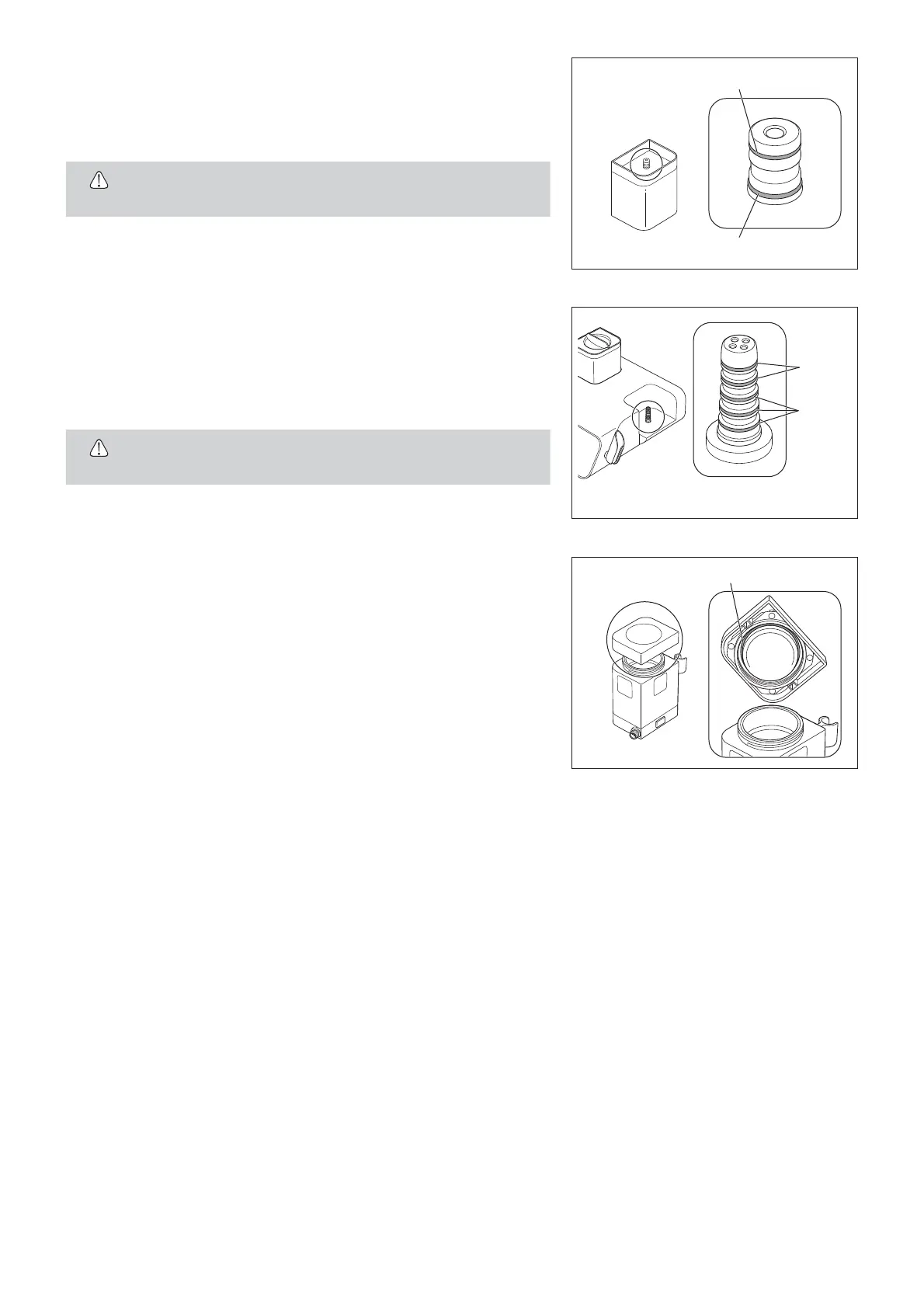

10-1-4 Irrigation Bottle
1) Remove the O-rings from the Irrigation Bottle Joint using a needle, etc.
2) Place the new O-rings in the grooves from where the old O-rings were removed.
* Refer to “21 Spare Parts List” for details about replacement O-rings.
Order Code: Y1003544
CAUTION
tThe O-rings are of different thicknesses. Be sure to place them in the
correct groove (Fig. 46).
O-Ring (Thin section)
O-Ring (Thick section)
Fig. 46
10-1-5 Chamber Base Connector
1) Remove the O-rings from the Chamber Base Connector using a needle, etc.
(Fig. 46).
2) Place the new O-rings in the grooves from where the old O-rings were removed.
* Refer to “21 Spare Parts List” for details about replacement O-rings.
Order Code: Y1003435
CAUTION
tSince the size of the O-Rings differ, make sure to replace them in the
correct location (Fig. 47).
O-Ring
(Small)
O-Ring
(Large)
Fig. 47
10-1-6 Chamber Cap
1) Remove the Chamber Cap.
2) Remove the O-ring from the inside of the Chamber Cap using a needle, etc.
(Fig. 48).
3) Place the new O-ring in the groove from where the old O-ring was removed.
Order Code: Y1003545
O-ring
Fig. 48
