Part 1 - General Safety Information
Part 5 - Venting
NOTE: These drawings are meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local codes.

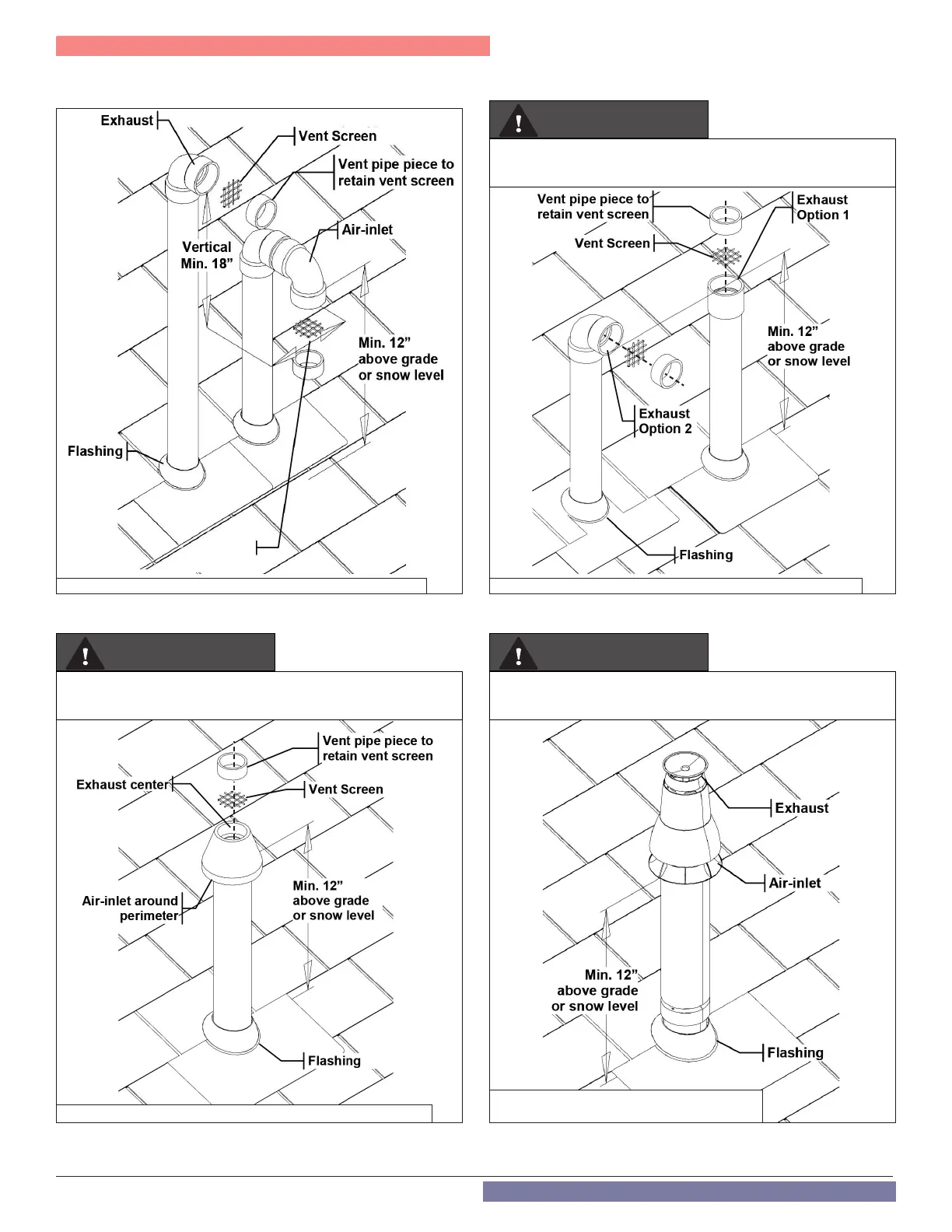

Roof Venting Options - Direct Vent Installation
Two Pipe Termination
Concentric Termination
Unbalanced Venting - Roof Exhaust Termination
4 in min.
Figure illustrates two options for exhaust termination only. Neither vent
pipe illustrated is intended for combustion air intake.
Refer to documentation included with termination kit for complete
installation instructions.
Refer to documentation included with termination kit for complete
installation instructions.
WARNING
WARNING WARNING
Figure 39 - Roof Concentric Termination (with Optional IPEX kit)
Figure 37 - Two Pipe Roof Venting Detail
Figure 38 - Unbalanced Venting - Roof Exhaust Termination Options
Figure 40 - Roof Concentric Termination
(with Optional Duravent / InnoFlue Kit)
