Panel and Wall Mount Versions - DC Supply option.
(Terminals located at the rear of the Module, identified as below
as viewed)

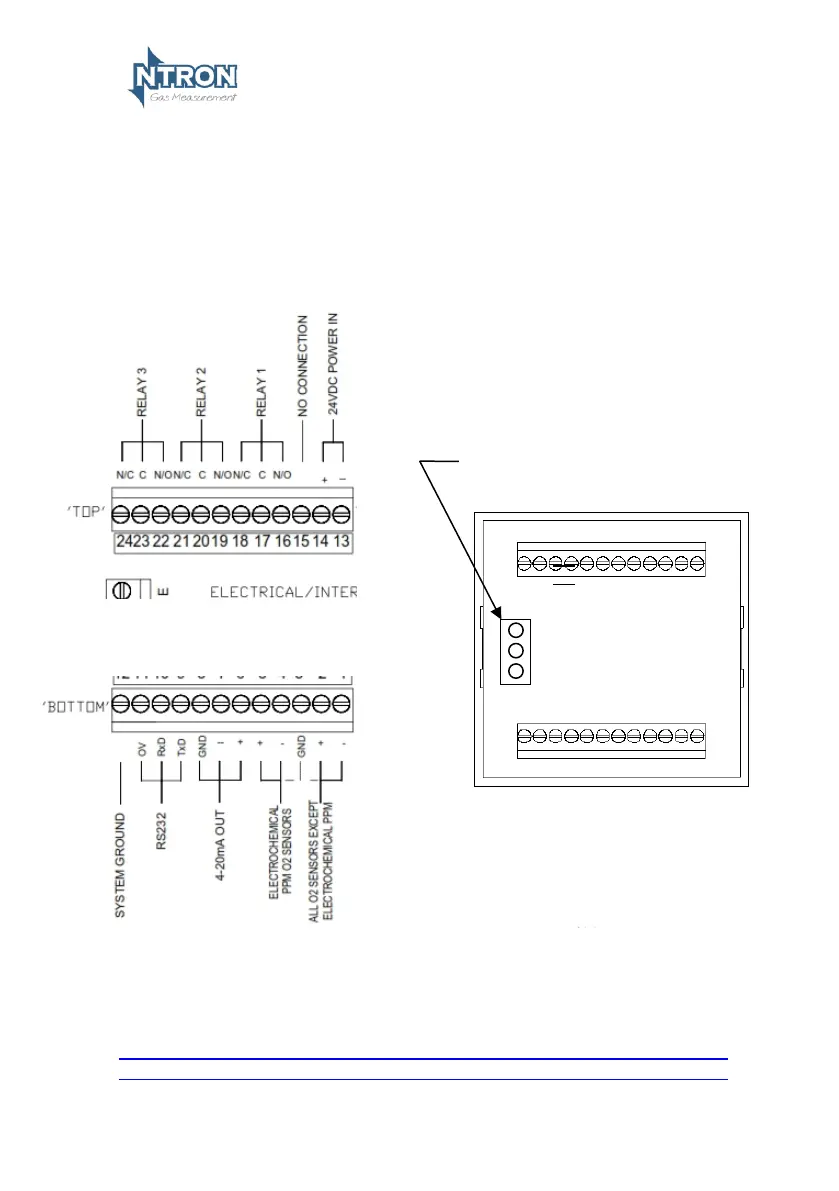

View ‘A’
Note:Terminals 1,2 & 3 are for the connection of Electro-Chemical %
and Zirconia % or ppm Sensors.
Terminals 4 & 5 are for the connection of Electro-Chemical ppm Sensors
only. See Sensor for connection details. For Zirconia Sensors, connect
the sensor power wires (+ & -) into terminals 14 and 13 of the Analyser
along with the Analyser power wiring.
Electrical Interface
Terminals/connections as per view ‘A’
No Connection
Supply by Customer
0V
24V
Note: Additional Terminals fitted on Wall
Mount DC version with Zirconia Sensor.
