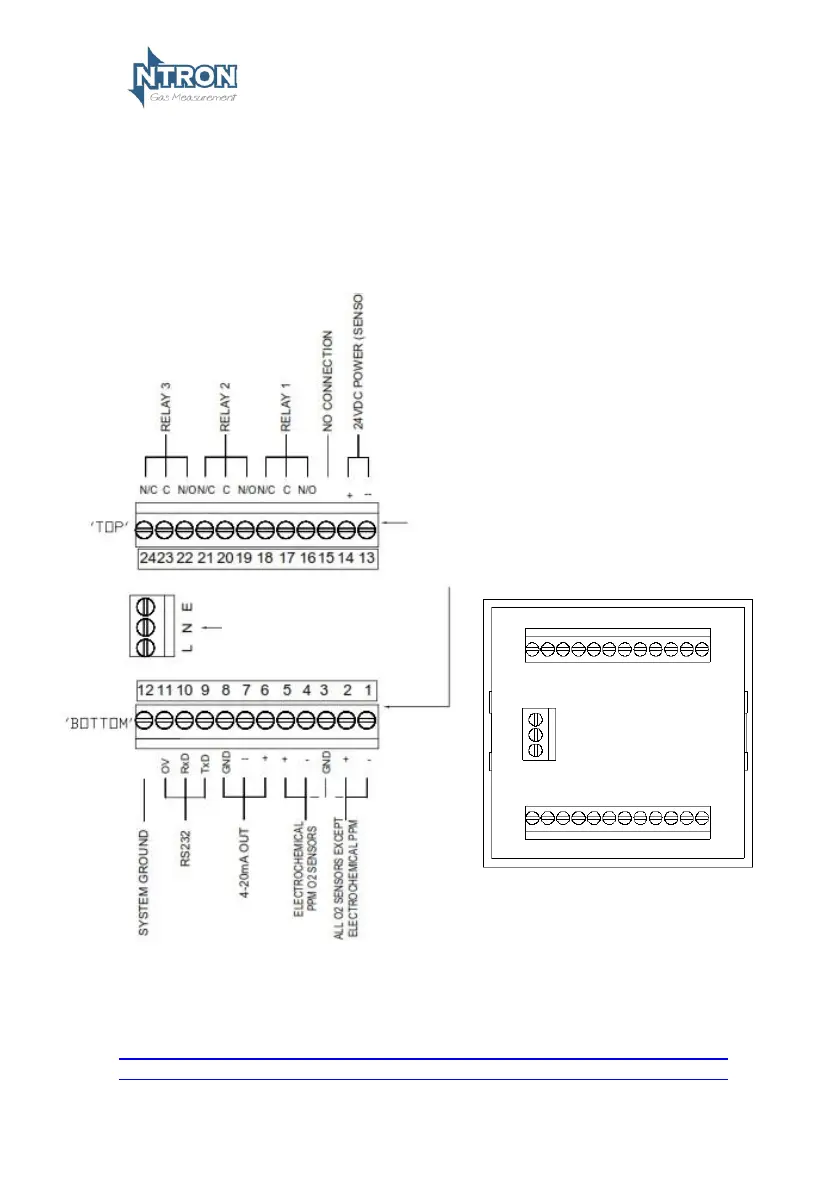

Panel and Wall Mount Versions - AC Supply option.
(Terminals located at the rear of the Module, identified as below
as viewed)
Note:Terminals 1,2 & 3 are for the connection of Electro-Chemical
% and Zirconia % or ppm Sensors.
Terminals 4 & 5 are for the connection of Electro-Chemical ppm
Sensors only. See Sensor for connection details. For Zirconia
Sensors, connect the sensor power wires (+ & -) into terminals 14
and 13 of the Analyser.
