Ntron MICROX - Recommended Sampling System Piping #1; (For Stub Tube Type Sensor Connection)

Microx User Manual
Rev. 1.2
V233P
Page 12

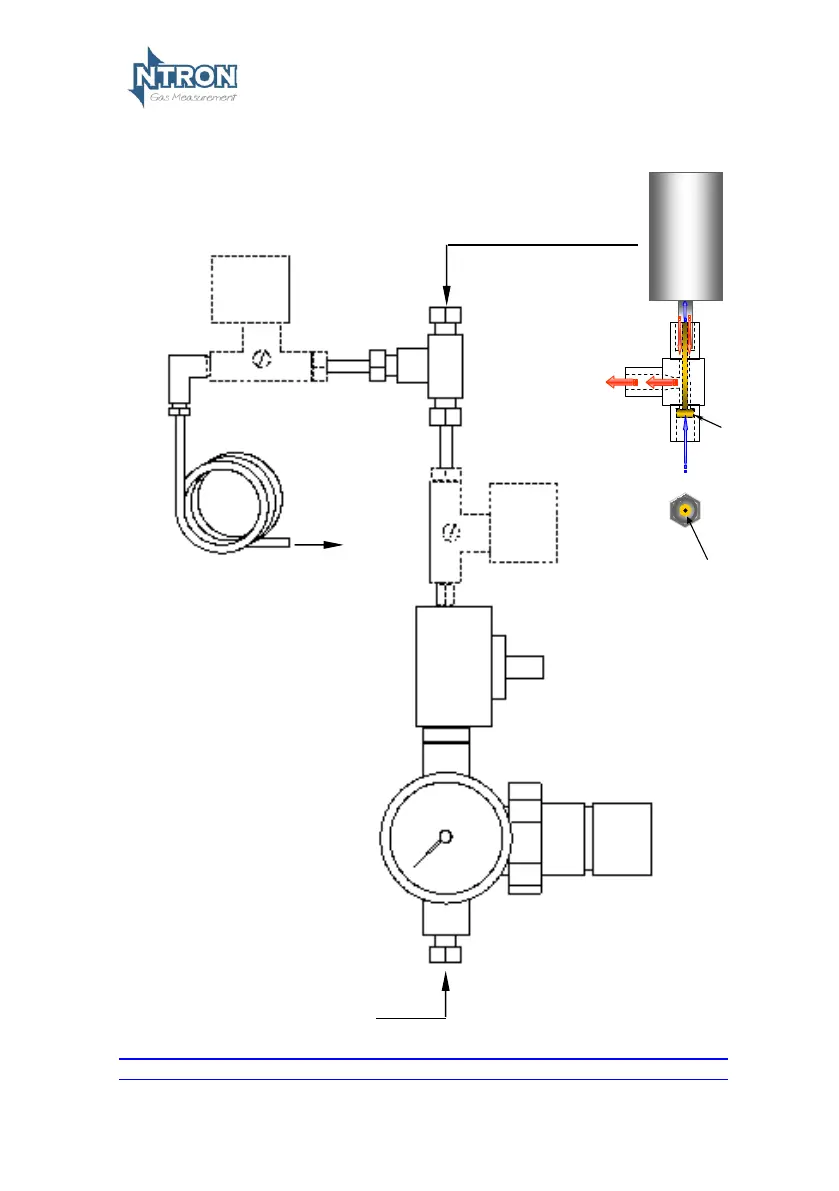

3.4 Recommended Sampling System Piping #1
(for stub tube type Sensor connection)
Sample Input
For Electrochemical &
Zirconia Sensors, set
Flow Restrictor to
achieve a flow rate of
250ml/m.
Regulator set to 5
PSIG Max.
‘Tee’ connection.
(Ntron supplied)
Ensure correct
orientation as
shown.
Optional Isolation
Valve for PPM
Sensors, Hand or
Solenoid operated
Internal
‘T’ piece
Flow
Restrictor
Attach a suitable
length of piping
for the exhaust
as illustrated.
Sensor
Sample
Exhaust
‘T’
Fitti
