Ntron MICROX - 3.3 Field Connections

Microx User Manual
Rev. 1.2
V233P
Page 9

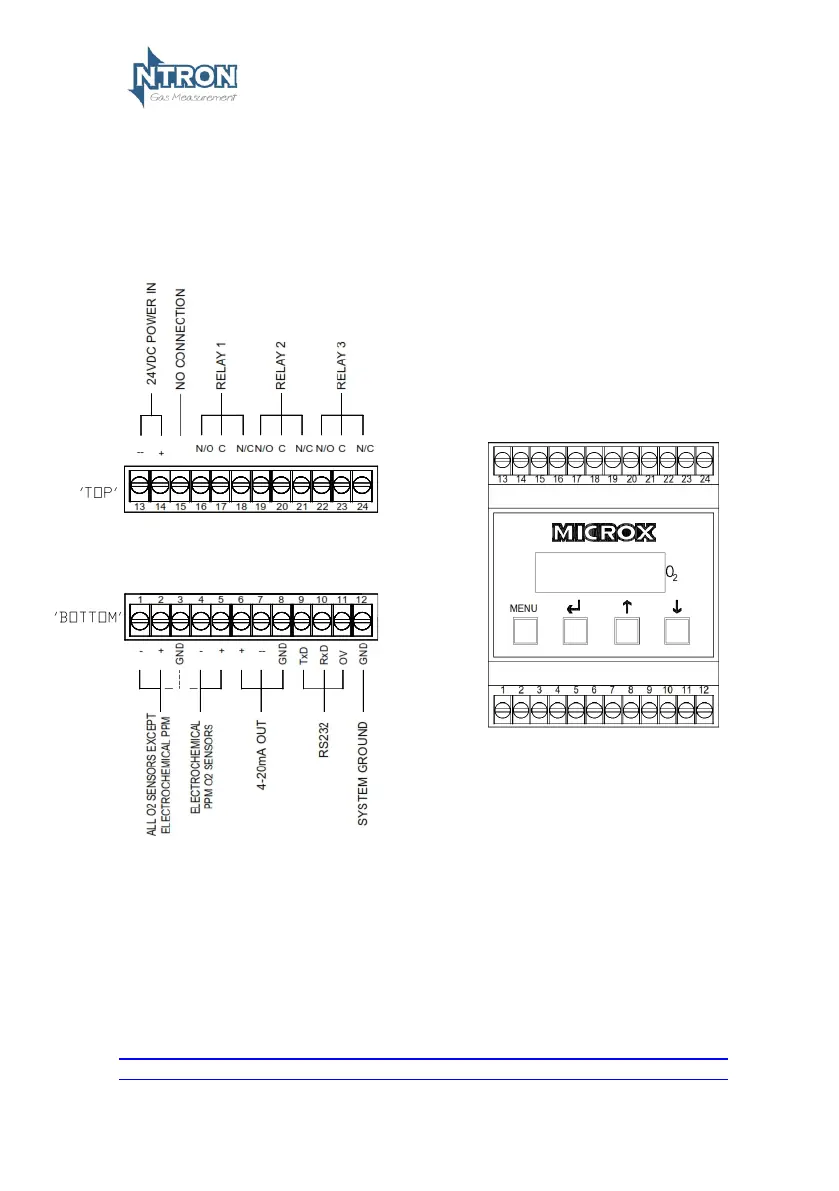

3.4 Field Connections
All connections to the module are provided in the form of screw terminals.
The pin- outs for each Microx version are given below.
Din Rail Mounting version.
View ‘A’
Note:Terminals 1,2 & 3 are for the connection of Electro-Chemical %
and Zirconia % or ppm Sensors.
Terminals 4 & 5 are for the connection of Electro-Chemical ppm
Sensors only. See Sensor for connection details. For Zirconia
Sensors, connect the sensor power wires (+ & -) into terminals 14 and
13 of the Analyser along with the Analyser power wiring.
Electrical Interface
Terminals/connections as per view ‘A’
