Nuga N5 - How to Install the Product

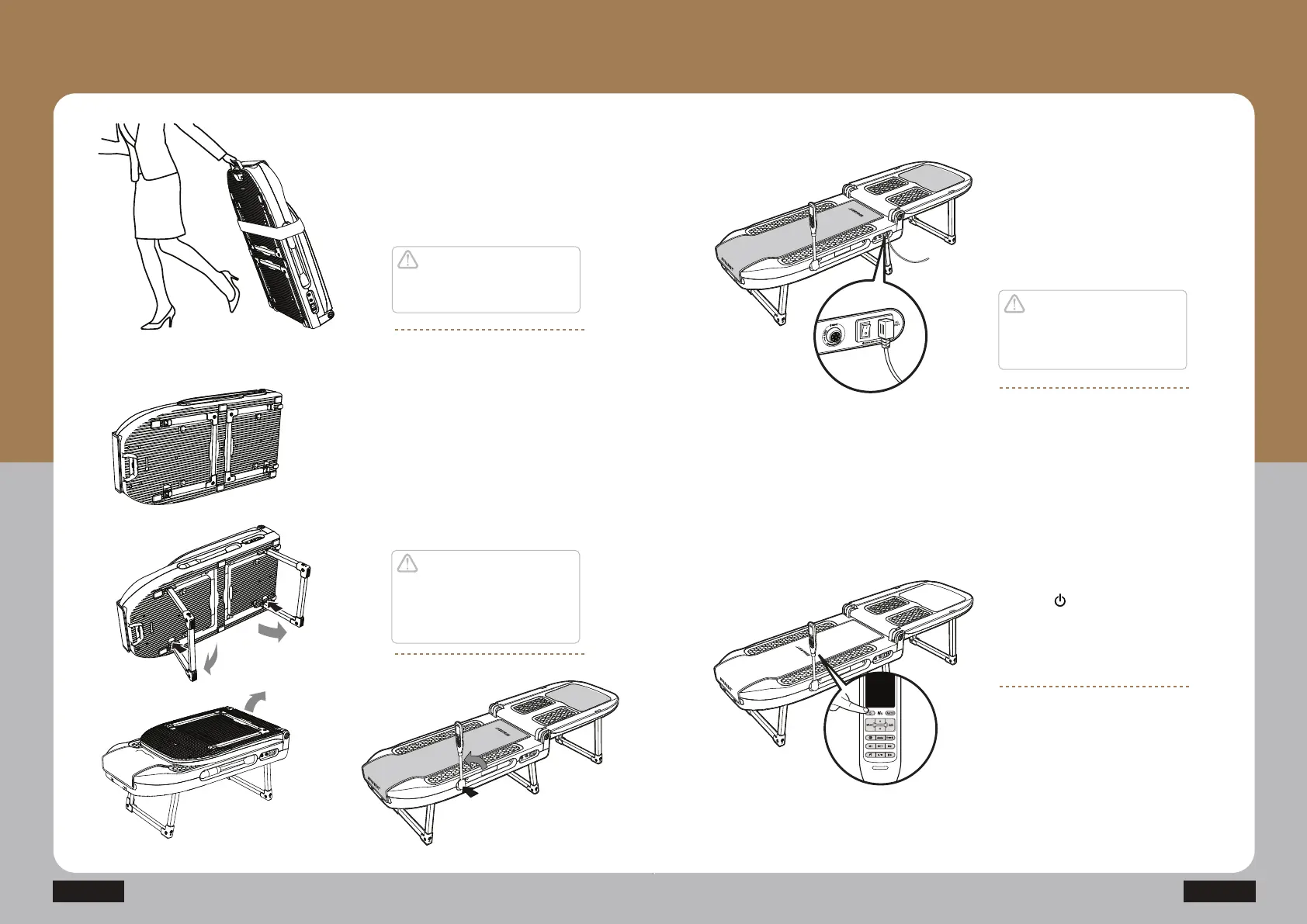

Product installation
ⴘ Remove the band and raise the device
vertically with the controller on top.
ⴙ Press the lever for the legs and unfold
the legs.
ⴚ Raise the main part of the device
upright and open up the auxiliary part.
ⴛ Press the hinge on the controller and
rotate it 90°.
(The length can be adjusted for your
convenience.)
Turn on the power supply
in the product
Connect the power cable to the body as
shown in the figure and turn on the
power switch.




N5

Caution
Make sure the controller is facing
up.
(The length can be adjusted for your
convenience.)
Caution
Use the band when moving it
vertically or during storage.
Caution
Turn off the power switch when the
power is connected.
Otherwise, it might cause failure.
ⴘ
Controller hinge
Leg
lever
Production Installation and Use
How to Install the Product
Transporting the device
Transport the device using the installed
wheels.
Turning on the controller
Press the button to turn on the
power and use the device.
(Refer to “How to use the controller”
for more details)

ⴙ
ⴚ ⴛ
