4.10.1 Display of Operator Messages
Faults affecting the vital functions of the machine, the system or the network may be indicated by messages sent to
the CNC. In such cases, the "MSG" indicator is displayed in the status window (See 3.1.3).
These messages can be consulted on the "OPERATOR MESSAGES" page (up to two messages can be displayed).
Two other pages display messages. These pages are:
- the "SYSTEM MESSAGES" page for system faults,
- the "NETWORK MESSAGES" page for network faults.
Requirements
"CNC COMMUNICATION DISPLAY" menu displayed (See 4.10).
Actions
Select the "OPERATOR MESSAGES" page. ☞
)
0

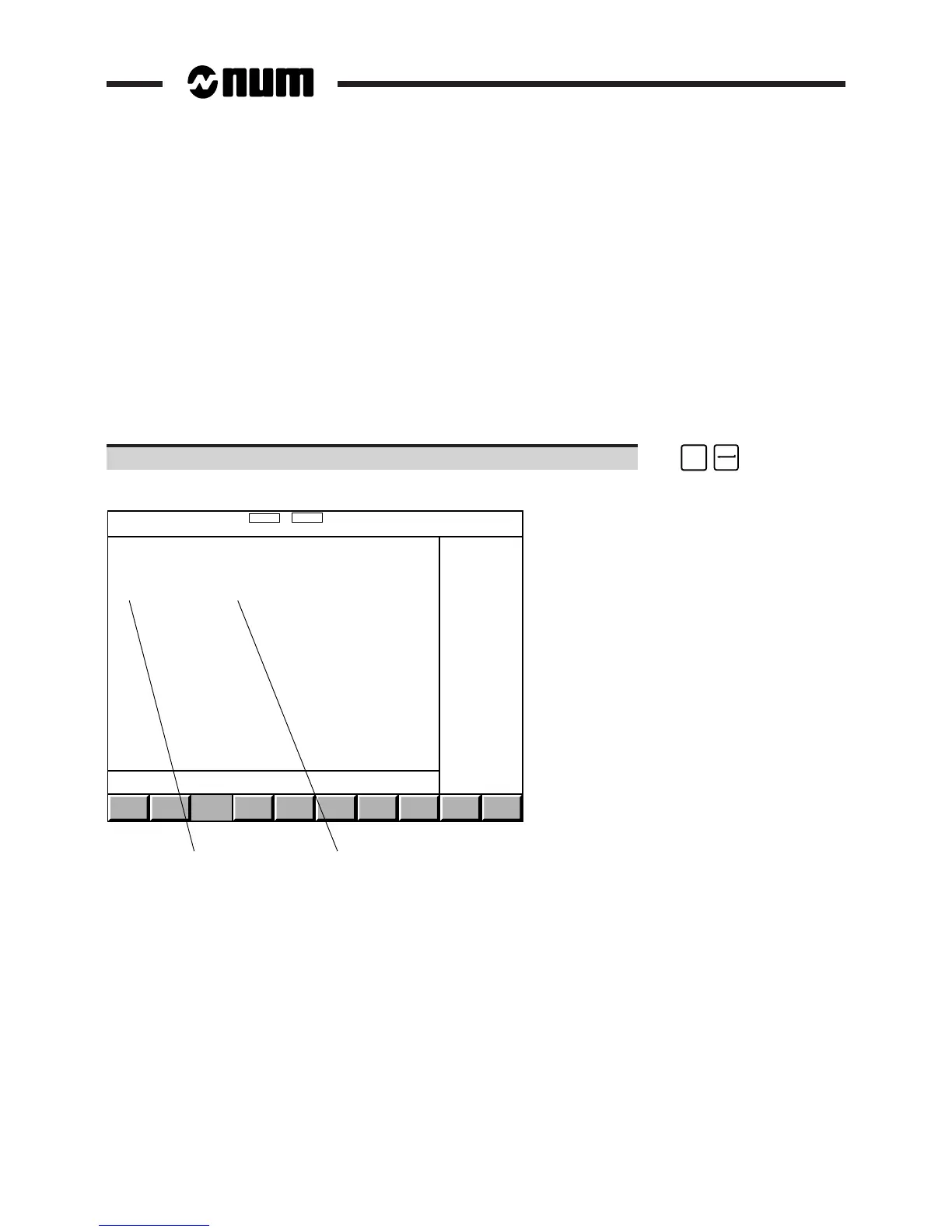

Display of the "OPERATOR MESSAGES" page, e.g.:
MSG
FDHLD
2 1
EXIT
SYSTEM
Message
Clear
WARNING
NETWORK
Message
MACHINE
Message
OPERATOR MESSAGES
9 AXIS LUBRICATION:
14 OIL PRESSURE FAULT
1 - Message
2 - Number of message in message table
If no faults have been detected, message 0 is displayed.
