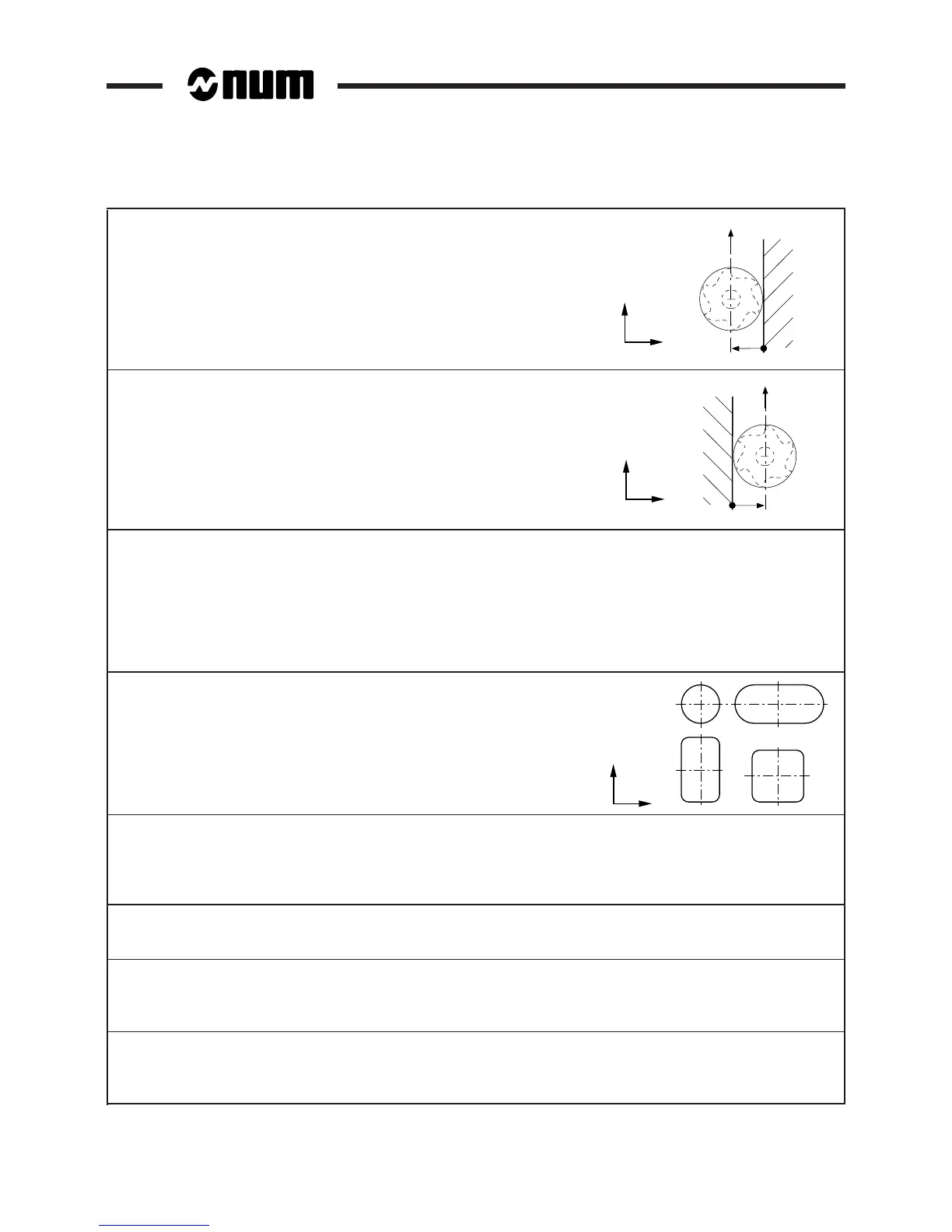

G41: Cutter compensation to the Left
R
F . .
Y
X
Syntax (XY plane): N.. [G17] [D..] [G00/G01/G02/G03] G41 X.. Y..
Cancellation: G29/G40/G42
G42: Cutter compensation to the Right
R
F . .
Y
X
Syntax (XY plane): N.. [G17] [D..] [G00/G01/G02/G03] G42 X.. Y..
Cancellation: G29/G40/G41
G43: 3D tool correction with cylindrical tool
Syntax:
N.. [D..] [G01] G43 X.. Y.. Z.. P.. Q.. R.. [I.. J.. K..] [A.. /B.. /C..]
Cancellation: G40/G41/G42
G45: Simple pocket cycleSimple pocket cycle
Y
X
Syntax:
N.. G45 X.. Y.. Z.. [ER..] EX.. EY.. [EB..] P.. Q.. [I..] [J..]
[EG2/EG3] EP.. EQ.. EI.. EJ..
Cancellation: end of block
G46 NU..: Pocket and facing cycle with any contours
The syntax specific to each cycle is described below (syntax defined in the XY plane)
Cancellation G46: end of block
G46 NU0: Geometric definition header block
N.. G46 NU0 NP.. ED.. Q.. [J..] [NR±] [R03/R04] [LX.. LY..] [EX.. EY..]
G46 NU1: Pocket introduction block
N.. G46 NU1 [LX.. LY..]
N.. Pocket contour definition
G46 NU2: Island introduction block
N.. G46 NU2 [LX.. LY..]
N.. Island contour definitiont
