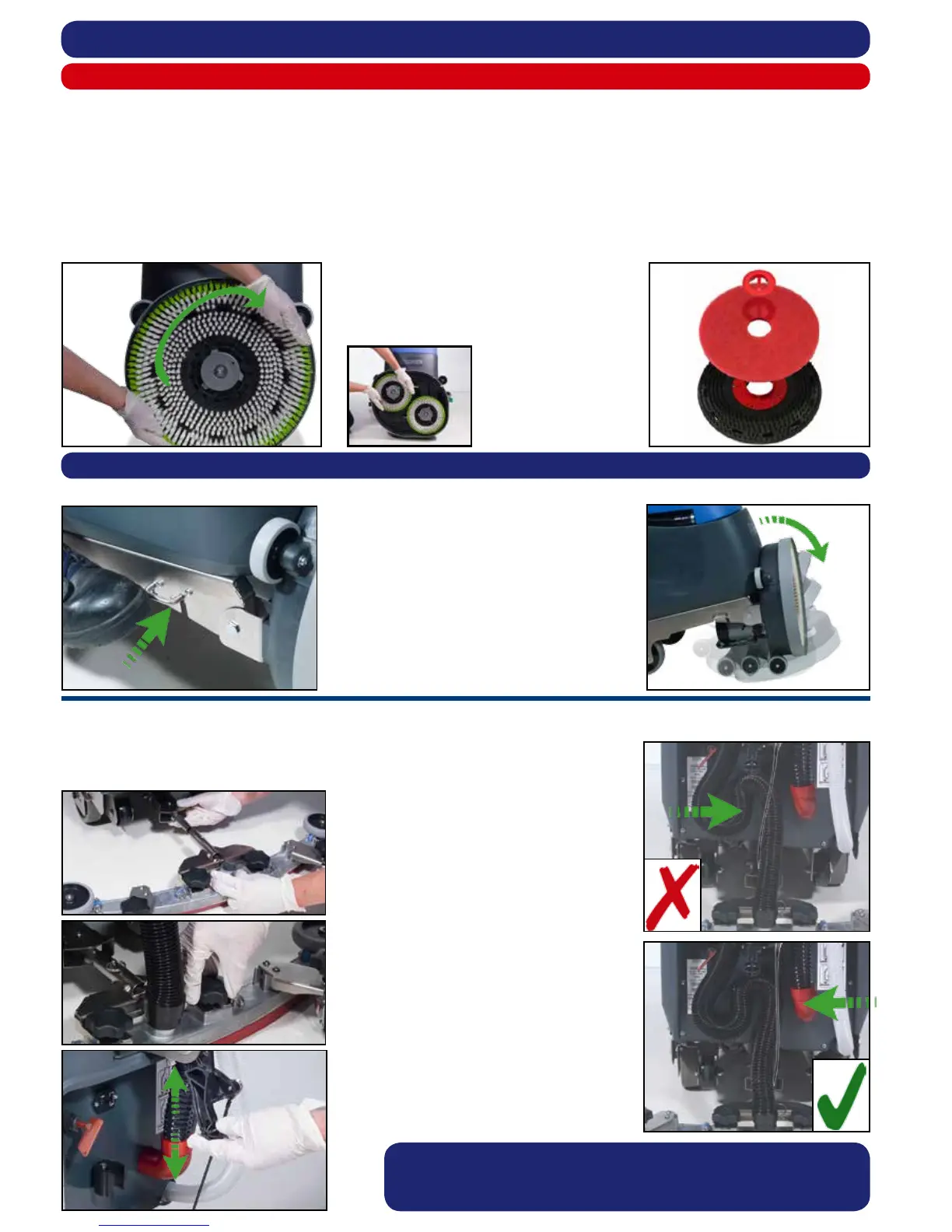

ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED BEFORE MAKING ANY ADJUSTMENTS
Fitting the brushes
Featuring the Nulock brush system.
The brush is simply pushed and twisted to lock, making tting and removal a simple process.
The Pad is retained using Numatic’s own PadLoc system (ask your supplier for details).
Only use manufacturer supplied brushes / pads.
TTB 4045 requires a 450mm brush or a 400mm pad.
TTB 4055 requires a 550mm brush or a 500mm pad.
TTB 4552 requires 2 x 280mm brush or 2 x 280mm pad.
Fitting and lowering the Floor Tool
The oor-tool has been designed for quick tting, allowing easy squeegee
blade replacement and a safety knock-off feature if the oor-tool gets snagged,
whilst in transit.
Raise the oor-tool for transit, lower for
cleaning operation using the lifting handle
tted to the back of the machine (Fig.20).
We are now ready to set the controls to
suit the cleaning conditions.
Before any settings can be
applied, ensure the brush deck is lowered.
Safety gloves are recommended for the changing of used brushes.
Note:
It is easier to t the oor-tool if the weight of the machine
is resting on the brush.
Ensure the brush is tted rst.
Machine Set-Up
Fit the brush / pad to the drive chuck,
twist to lock the brush
(Fig.14) / pad in place (Fig.15).
Tipping the Brush Deck
To tip the deck into the down position
(Operating mode) Press in the brush
deck locking pin (Fig.16) and rotate the
brush deck (Fig.17).
To change to brush deck up position,
(Transit mode) simply lift the deck and
the sprung loaded locking pin will
activate to hold the deck up.
Fig.15
Fig.17
Fig.20
Fig.19
Fig.16
Fig.14
Fit the oor-tool and retain using
the detent pin (Fig.18).
The lifting strap is held by a
detent pin (Fig.19).
Fig.18
