Page 17 of 54
11. Wheel guard micro switch
a) The micro switch relays the position of the wheel guard. Because this process is controlled by
the software, it can be switched off. In this case, any problems arising should first be checked by
noting the functions set by the user with function F8.!
b) To remove, first take out the lead from the connector J5 on the basic board. Loosen the screws
on the switch and remove. Replace the new switch with the wheel guard in an upright position
enabling the contacts J5-1and J5-3 to be connected and in the same case contacts J5-2and j5-3
to be connected with the wheel guard closed.

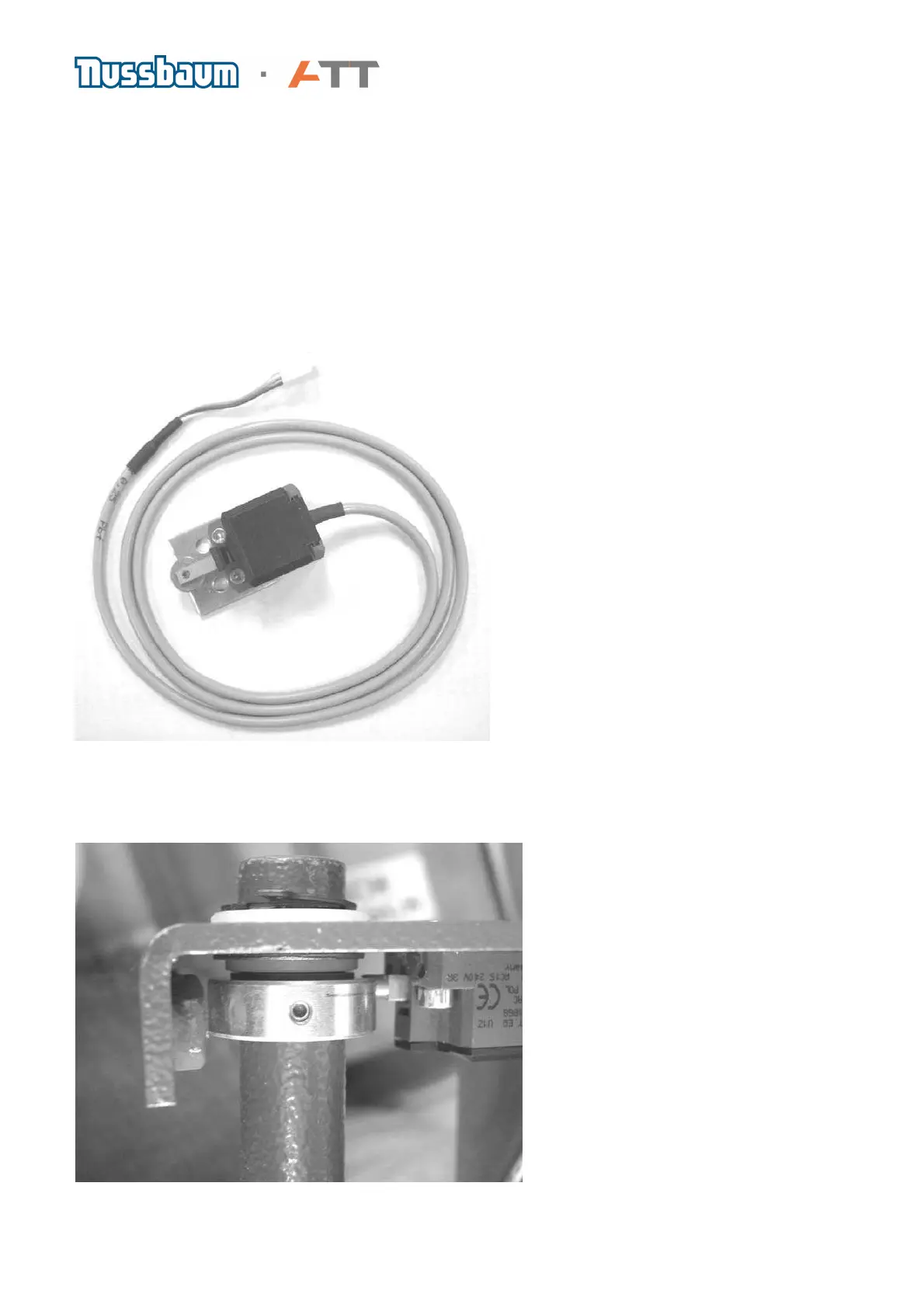

(Wheel guard micro switch Art.Nr. 1987009WH4A)
c) If the case arises during transport that the camshaft becomes loose as in the photo below, then
re-secure the spring clip by closing the wheel guard so as to align the camshaft with the wheel
guard.
