5. Motor
a) Disconnect the red and black motor cable at the point (J2-2, J2-3). In addition if the machine is
a model (above BM30) also disconnect the two grey brake leads at the point (J4-2, X1-3).
b) Loosen the drive belt as described in Para. 5. Loosen the securing screws(1)
(4) to remove the motor. Place new motor in position and tighten the screws (1)-(4).
Replace the drive belt as described above and replace the electrical cables.
c) Note: When ordering new motors make sure that the correct motor for the specific kind of
machine is chosen.
DC motor (24V) without braking capability for BM11, BM 15 Touch and QuickSpan champ and a
DC motor (48V) with braking capabilities for all from BM 30 upwards.

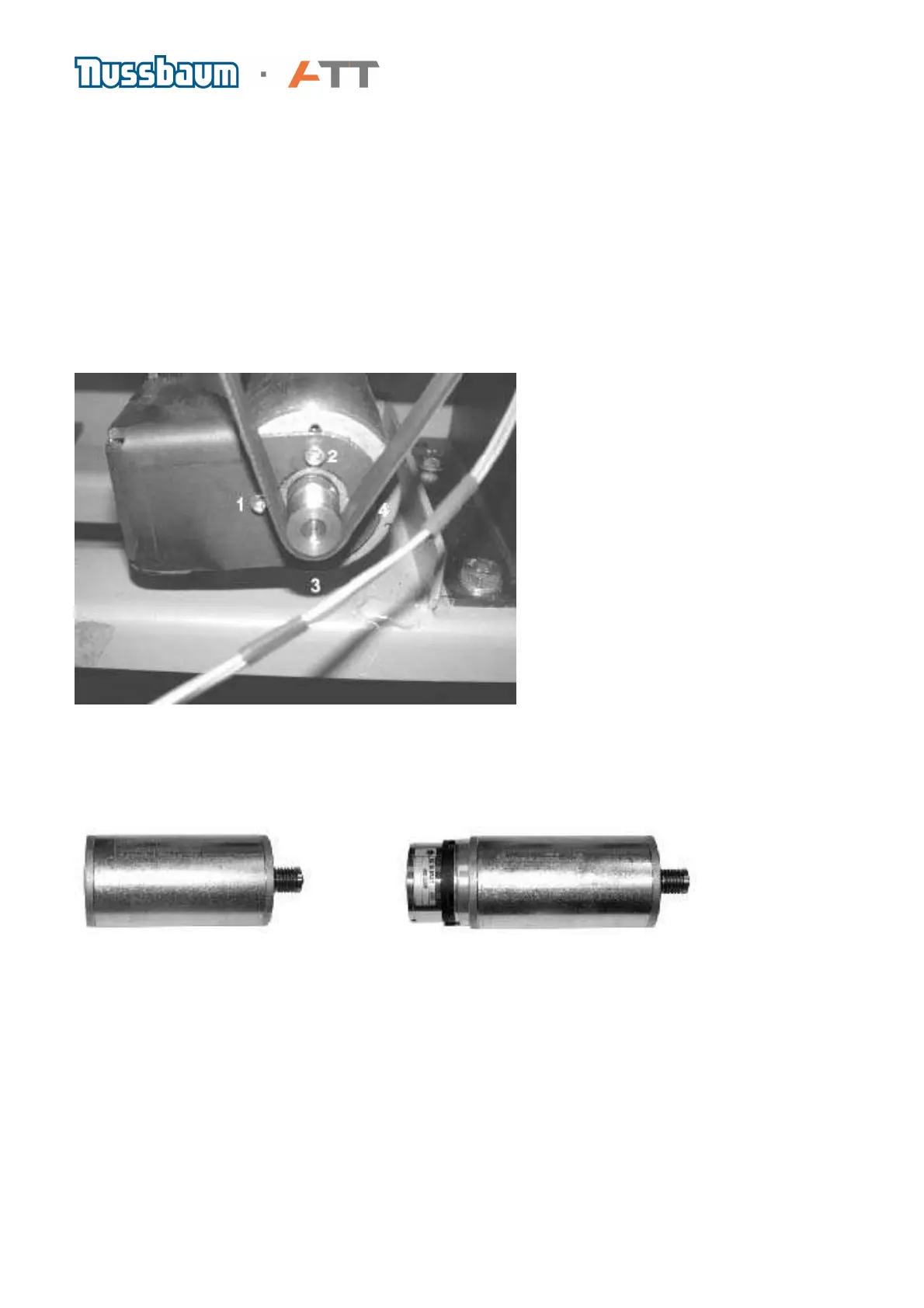

Photo. Shows motor without brakes Photo. Shows motor with brakes
Art.Nr. 1987009WB5A Art.Nr. 1987009WB7A
