Page 35 of 54
17. QuickSpan
Principle
With the QuickSpan the wheel is clamped pneumatically upon foot pedal operation. The shaft
diameter is 40 mm and all clamping accessories that can be used with the wheel balancers with
manual clamping can also be used with the QuickSpan

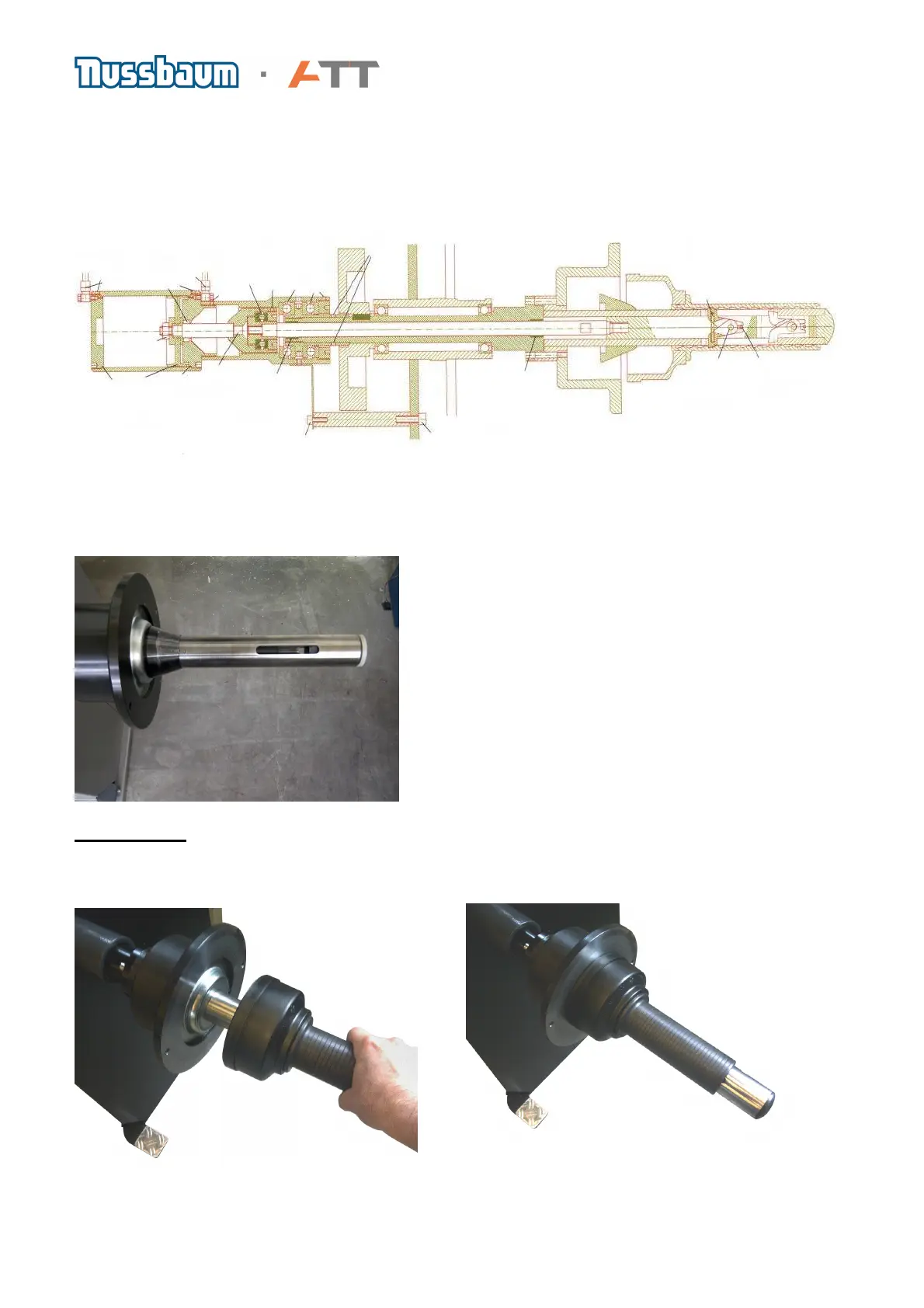

IMPORTANT: For calibration of the QuickSpan machines as well as the zero run the clamping
sleeve and the clamping hood for steel rims as shown in the pictures below. NO cone shall be
used
For more information on calibration and zero run please see the instruction manual
