20. Repair Instructions for clamping fingers (QuickSpan)

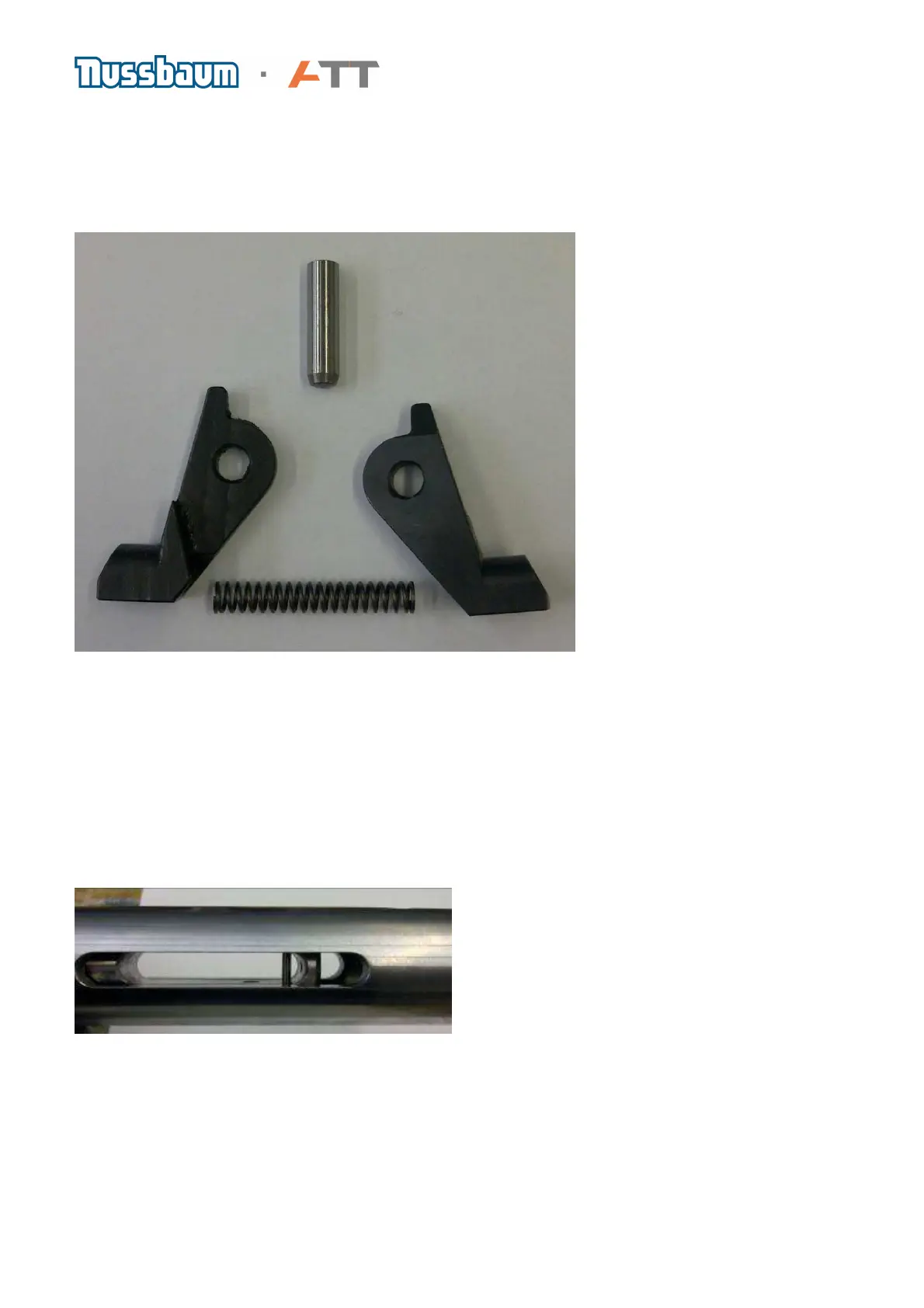

REQUIRED PARTS
Repair kit 1987009W8LA
1. Splint
2. 2 x Clamping fingers
3. Spring
Position the pull shaft in the 40 mm shaft so that
the clamping fingers and the spring can be
mounted
1
2
2
3
