Page 23 of 54
e. Description of the flash function:
Preparation basic board:
1. Shut down the machine
2. The jumper on the basic board on which the new software must been installed has to be
switched.

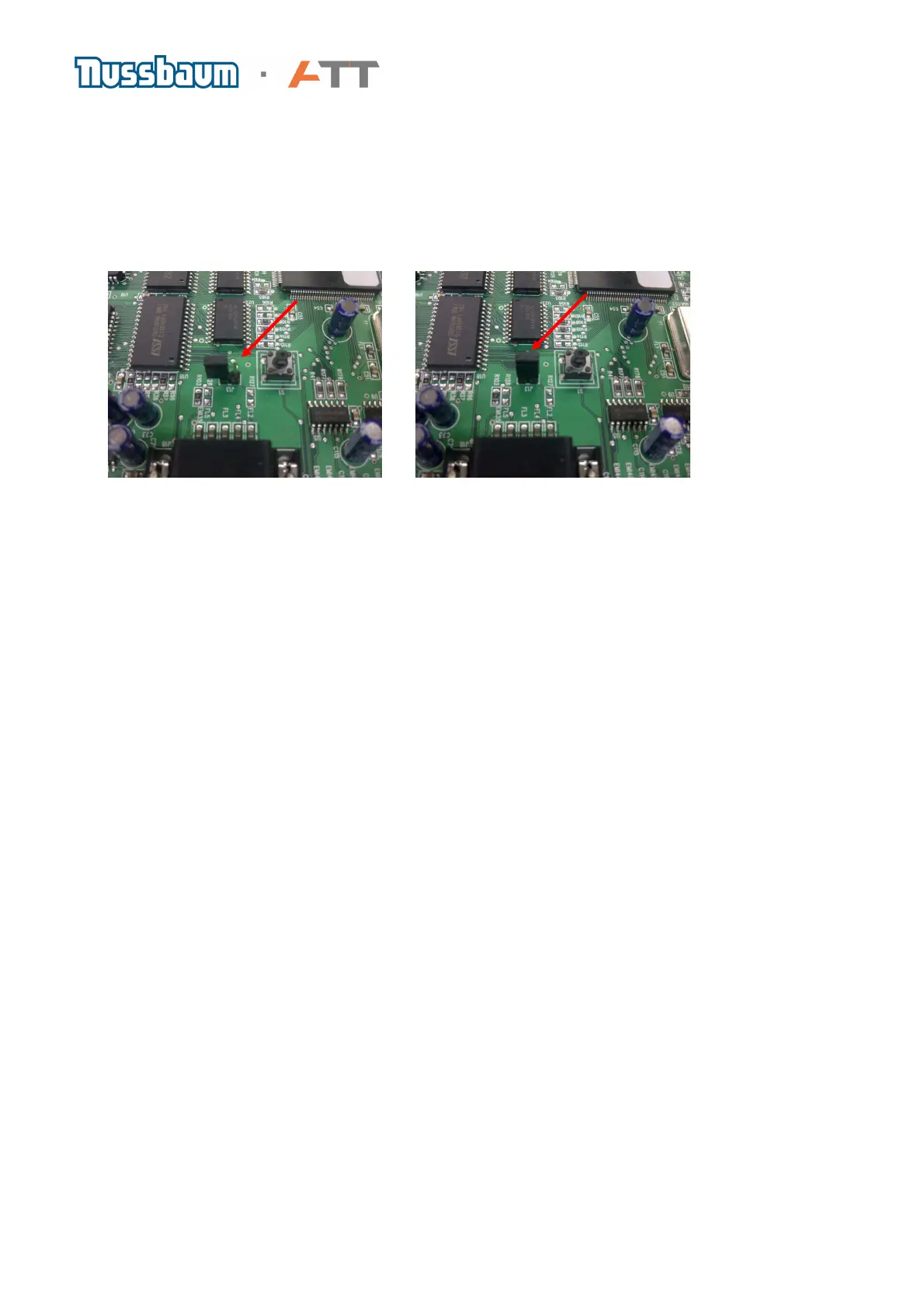

Picture 1: Picture 2
Jumper open for standard operation Jumper closed for Flash operation
Comment: on wheel balancers without monitor, the basic board is below the keyboard.
3. The basic board who has to been flashed must be connected with a customary serial cable
(Sib D9pins, 1 x plug in, 1 x connector) and a serial interface (see picture 3) on the computer
on which the flash tool is. Hereby it concerns about following description:
f. Preparing of flash tool
Start of flash tool:
The flash tool starts by a double click on „Flashtool_Vxxx.exe“. On the screen appears a start
window of the flash tool (picture 1 or picture 2)
Select the serial interface, on which you connected the serial cable. The serial interface „COM 1“
which is already pre-adjust should be correct, in other case with several serial interfaces please
select the highest or furthest on the left presented interface (see on the back side of the
computer). Otherwise select „COM 2“, „COM 3“ or „COM 4“
Select WHEEL BALANCER with „select product / start address“, if it is not already selected.
Select under "select application" your file or press the button " select file " and select the
catalogue with the file that has to been flashed.
Such a file is named "Balancer_LED_1_22.H86" or "Balancer_Touch_1_22.H86".
After you selected the file and with the button "open" confirmed this, you will see the trail and the
file name of the selected file under the writing: "select application".
