10 Copyright © 2016 Broan-NuTone LLC
Montage du thermostat
IInstaller le boîer/panneau avant du thermostat sur la base montée au mur en appuyant fermement
dessus jusq'à ce qu'il s'emboîte sur tout le pourtour. Le NTBZ48 est maintenant prêt à être programmé.

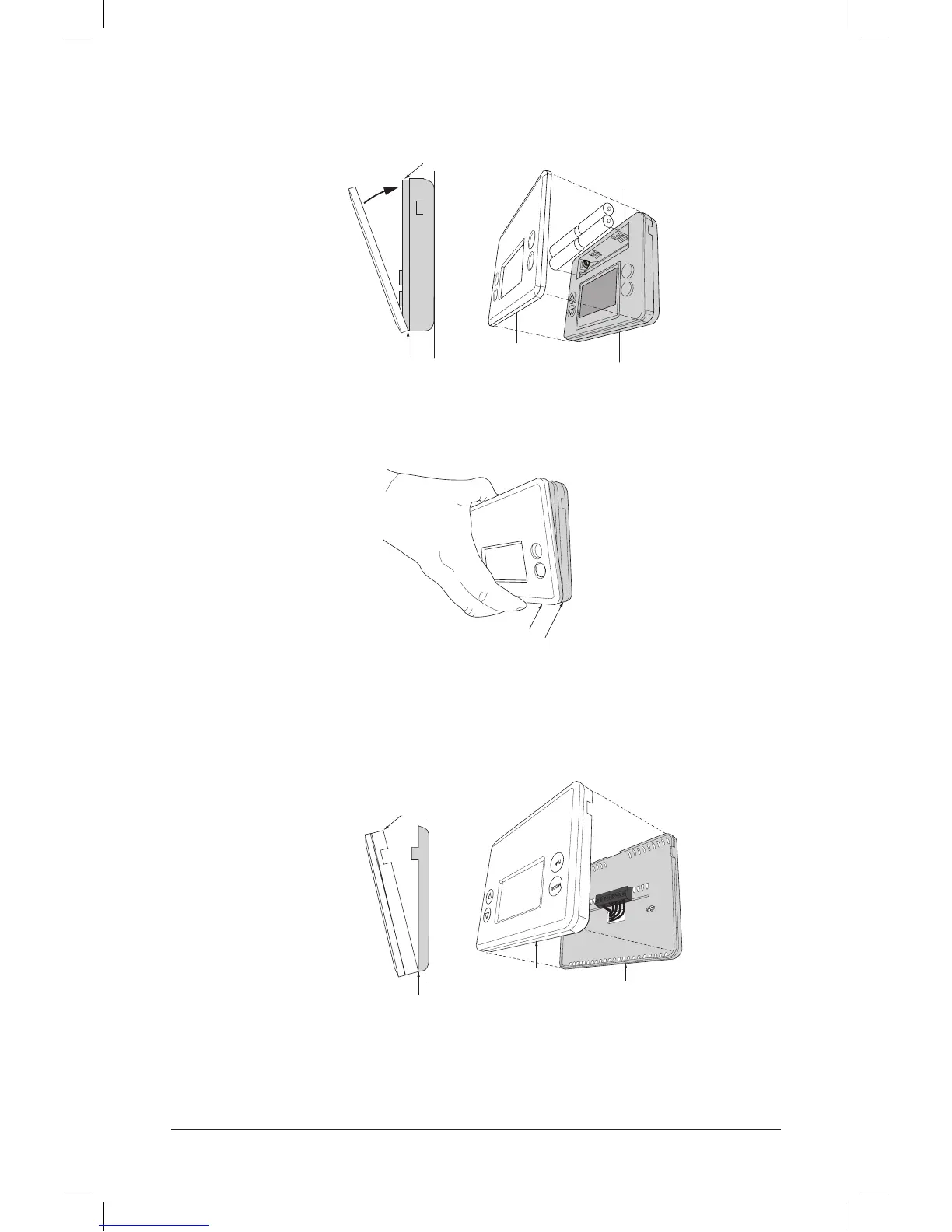

Figure 11. Fixation du panneau avant sur le panneau arrière
Installation des piles
Si vous installez des piles, ouvrez le panneau avant des piles du thermostat, rerez-le en le soulevant
avec les ongles par les encoches du bas du boîer (Figure 12). Installez les quatre (4) piles AA et
assemblez comme indiqué à Figure 13.
Figure 12. Ouverture du compartiment/couvercle des piles
Figure 13. Installation des piles
MODE
FAN
BOÎTIER/PANNEAU AVANT
PANNEAU ARRIÈRE (MONTÉ SUR MUR)
ACCROCHEZ-LE AU LOQUET EN
HAUT DU PANNEAU ARRIÈRE
EMBOÎTEZ-LE SUR LES LOQUETS
AU BAS DU PANNEAU ARRIÈRE
PANNEAU AVANT
PANNEAU
ARRIÈRE
MODE
FAN
PANNEAU ARRI
È
RE/BO
Î
TIER
(FIXÉ AU MUR)
PANNEAU AVANT
COMPARTIMENT
DES PILES
ACCROCHEZ-LE
SUR LE LOQUET À L’ARRIÈRE
EMBOÎTEZ-LE SUR LES LOQUETS
AU BAS DU PANNEAU ARRIÈRE
PANNEAU AVANT
PANNEAU
ARRIÈRE
UTILISEZ LES ONGLES DANS LES
ENCOCHES DU BAS DU BOÎTIER
PANNEAU ARRI
È
RE/BO
Î
TER (FIX
É
AU MUR)
PANNEAU AVANT AU COMPARTIMENT DES PILES
