Nuvoton Nu-Link Debug Adapter User Manual
Oct 24, 2019 - 24 - Revision V1.01
4.2.3 IAR EWARM
Step 1: Install IAR EWARM. Make sure that Nu-Link Adapter Driver for IAR EWARM has been
downloaded and installed before setting the Nu-Link Adapter such that the IAR EWARM can
recognize the Nu-Link Adapter.
Step 2: Open IAR EWARM, and open the project to be set.
Step 3: In the Target tab of the General Options page (through invoking Project → Options), click
the button in the right of the Device option (make sure the Device option is enabled), and
select “Nuvoton → Nuvoton M031AE series” as the target chip (M031AE series is this
case), as shown in Figure 4-14 and Figure 4-15.

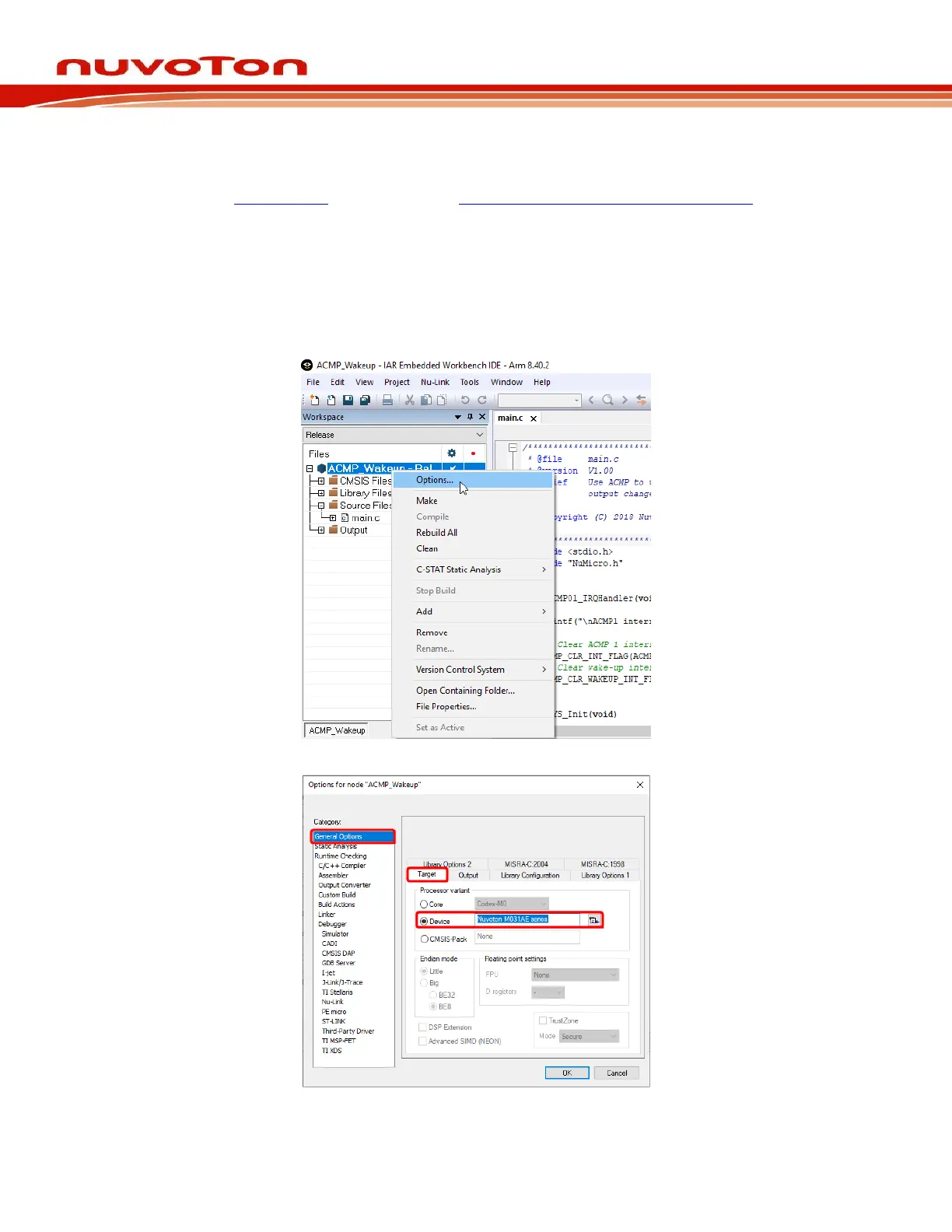

Figure 4-14 Options Selection
Figure 4-15 IAR EWARM Target Chip Selection
