Nuvoton Nu-Link Debug Adapter User Manual
Oct 24, 2019 - 21 - Revision V1.01

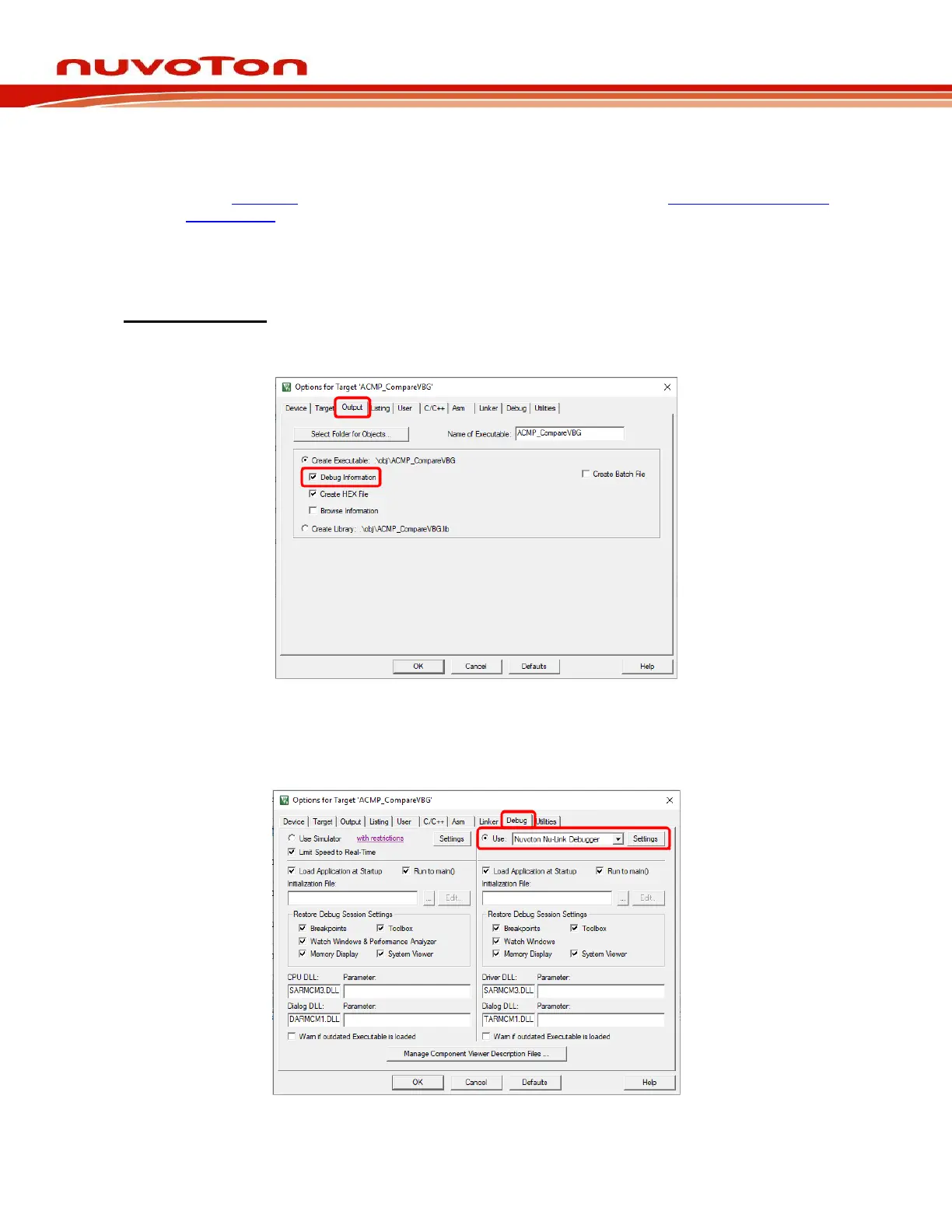

4.2.2 Keil MDK
Step 1: Install Keil MDK. Before setting the Nu-Link Adapter, make sure the Nu-Link Adapter Driver
for Keil MDK has been downloaded and installed such that the Keil MDK can recognize the
Nu-Link Adapter.
Step 2: Open the Keil MDK and open the project to be set.
Debugger Settings:
Step 3: Invoke Project → Options for Target → Output, and enable the Debug Information
option, as shown in Figure 4-9.
Figure 4-9 Enable Debug Information for Keil MDK
Step 4: Invoke Project → Options for Target → Debug, and make sure the Use:「Nuvoton Nu-
Link M0 Debugger option is checked, as shown in Figure 4-10.
Figure 4-10 Keil MDK Debugger Selection
