Nuvoton Nu-Link Debug Adapter User Manual
Oct 24, 2019 - 6 - Revision V1.01
SWD
USB
Status LED
(ICE / ICP / Red / Green)
Virtual COM Switch
ICE_DAT
ICE_CLK
/RESET
VSS(GND)
VCC
ICE_TX
ICE_RX

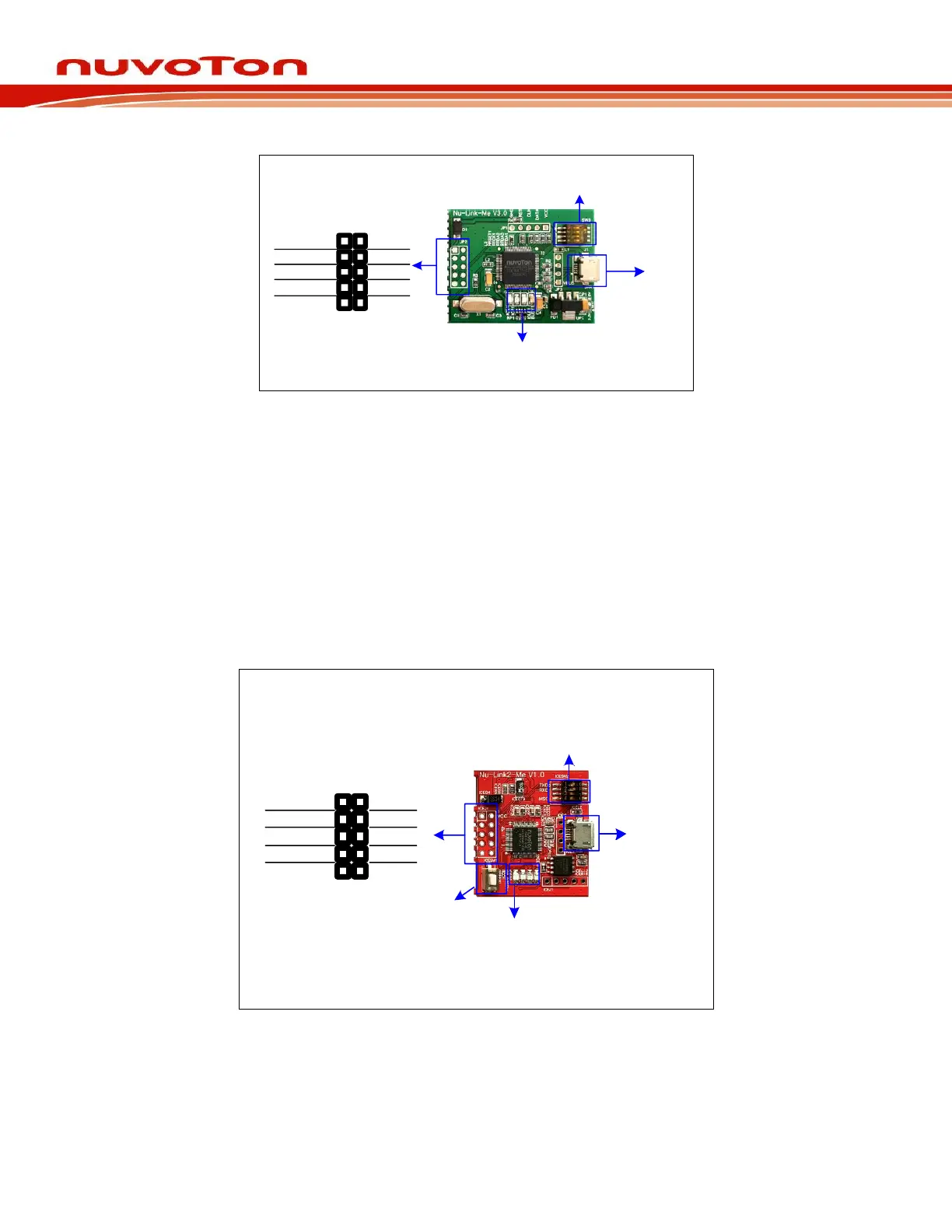

Figure 2-3 Nu-Link-Me Configuration
2.4 Nu-Link2-Me
The Nu-Link2-Me is a simple debugger and programmer with debugging and online programming
functions, which is only shipped with the Nu-Maker kits and can be used stand-alone for developing
the customized NuMicro
®
Family system, that supports on-line programming and debugging through
SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line programming the target
microcontroller. Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on
PC. Nu-Link2-Me can be separated from NuMaker, allowing user to use as a mass production
programming tool. Figure 2-4 shows the main components and connectors from the front side and
Figure 2-5 from the rear side of Nu-Link2-Me.
Figure 2-4 Front View of Nu-Link2-Me Configuration
SWD
USB
Status LED
(ICE / ICP / Red / Green)
VIrtual COM Switch
ICE SW
ICE_DAT
ICE_CLK
/RESET
VSS(GND)
VCC
BUSY
START
ICE_RX/Pass
ICE_TX/Fail
