Nuvoton Nu-Link Debug Adapter User Manual
Oct 28, 2014 - 10 - Revision V1.01

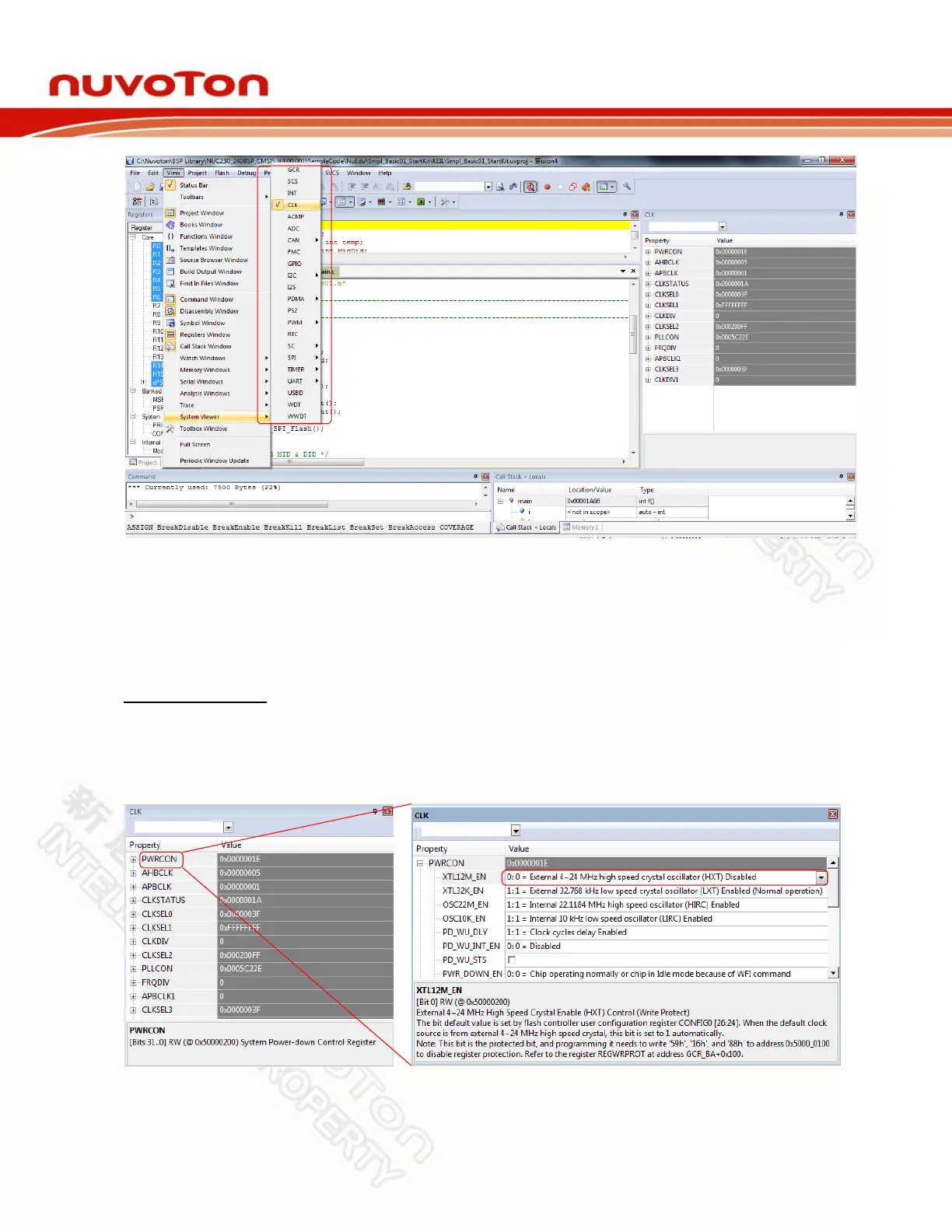

Figure 3-2 Direct Register Interface Control Related Options in Keil RVMDK Debug Mode
The Direct Register Control Interface for CLK is shown in the left part of Figure 3-3, where the left
column shows the register name, and the right column shows the register value. The Direct Register
Control Interface for PWRCON is shown in the right part of the Figure 3-3, where the left column
shows the function name, and the right column shows the function value.
Detailed Operation:
Double-clicking a “register value” will open the register control details, as shown in the right part of
Figure 3-3.
The “register value” or “control value” can be modified directly. The Nu-Link Adapter will then modify
the content of the target chip.
Figure 3-3 Direct Register Control Interface in Keil RVMDK Debug Mode
