HDMI Tuning Guide
PRELIMINARY INFORMATION
Jetson AGX Orin Series Tuning and Compliance Guide DA-11040-001_v0.7 | 27

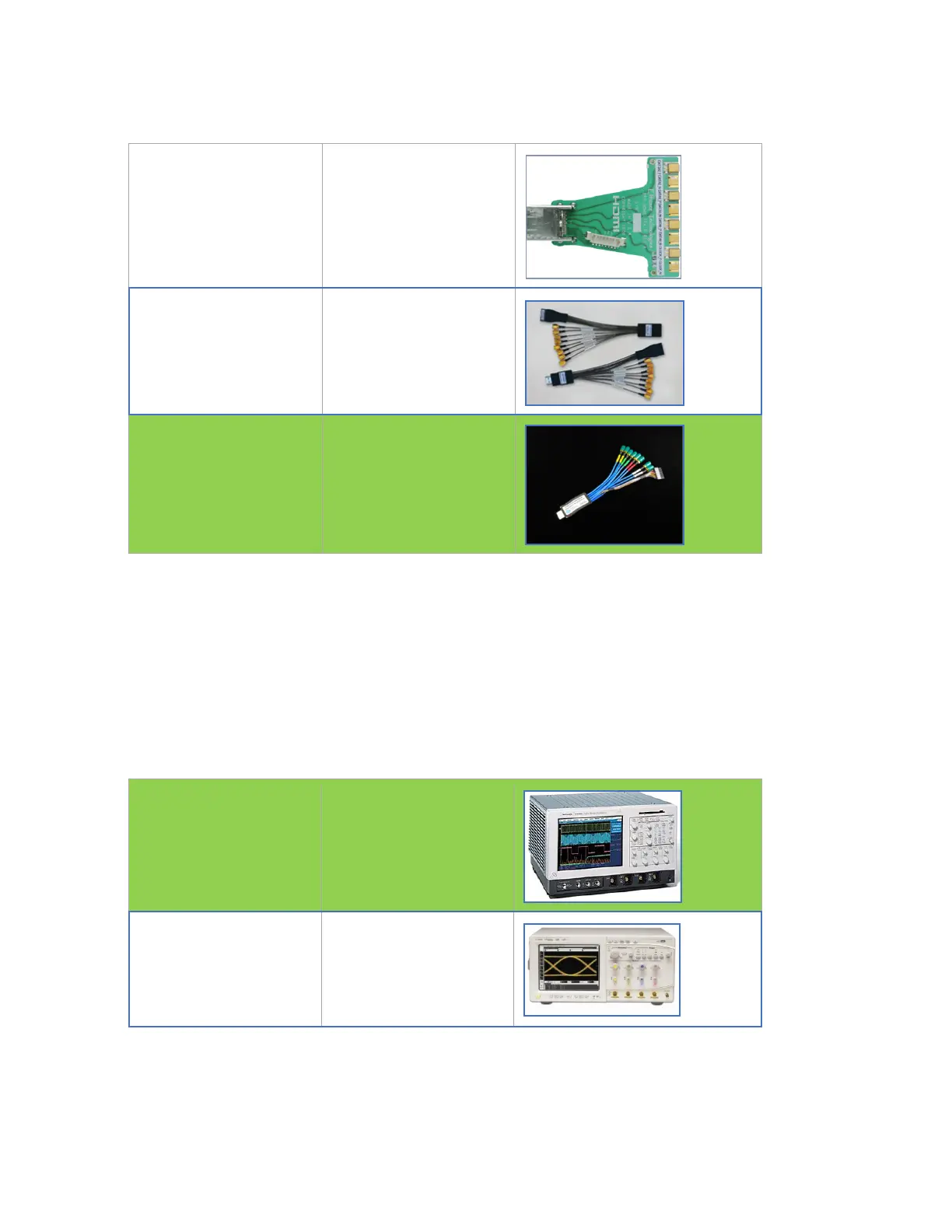

Table 7. Partial List of Acceptable HDMI Test Fixtures Type A
Efficere
EFF-HDMI-TPA-P
Agilent
N1080A
Wilder Tech
HDMI-TPA-P
Oscilloscope
The scope is used to display and measure the signals. The HDMI 1.4 specification requires that
the scope has at least 8 GHz of bandwidth and a sampling rate of at least 10 GS/s if the pixel
clock is equal to or less than 165 MHz, or sampling rate of at least 20 GS/s if the pixel clock is
greater than 165 MHz.
Table 8. Partial List of Acceptable Oscilloscopes for HDMI 1.4 Tuning
Tektronix
TDS6804B or better
Agilent
DSO80000B or better

Nvidia Jetson AGX Orin Series Specifications

General

Memory	32GB 256-bit LPDDR5
Storage	64GB eMMC 5.1
Networking	10/100/1000BASE-T Ethernet
Dimensions	100 mm x 87 mm
GPU	NVIDIA Ampere architecture with 64 Tensor Cores
CPU	12-core Arm Cortex-A78AE v8.2 64-bit CPU
AI Performance	275 TOPS
Power	15W to 60W
Video Encode	2x 4Kp60 | 8x 1080p60 | 16x 1080p30 (H.265/H.264)
USB	2x USB 2.0
PCIe	PCIe Gen 4
Operating System Support	Ubuntu
