Nvidia Jetson AGX Orin Series User Manual

HDMI Tuning Guide
PRELIMINARY INFORMATION
Jetson AGX Orin Series Tuning and Compliance Guide DA-11040-001_v0.7 | 28
For HDMI 2.0, a scope with at least 16 GHz of bandwidth is recommended.

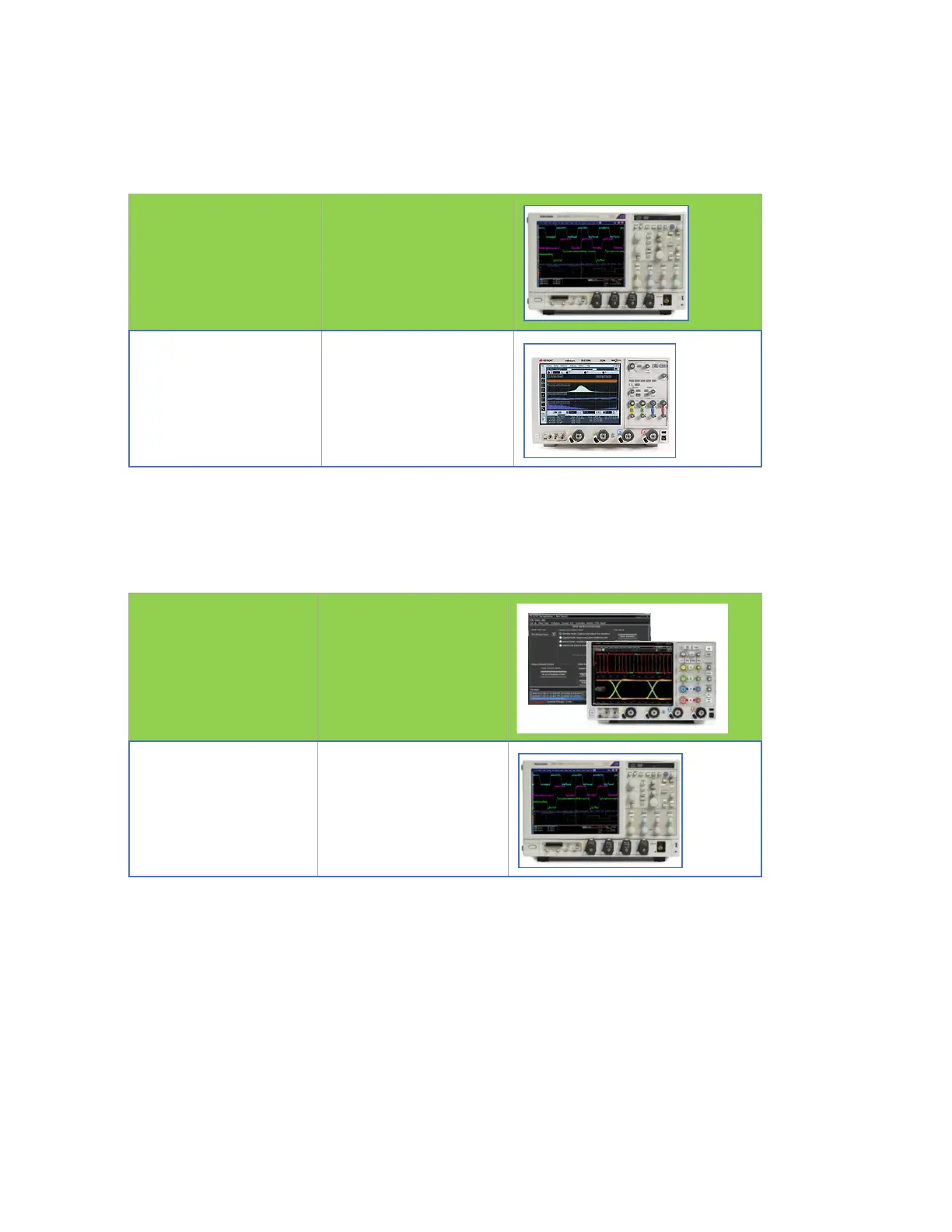

Table 9. Partial List of Acceptable Oscilloscopes for HDMI 2.0 Tuning
Tektronix
DPO/MSO 70,000 series 16
GHz or better
Agilent
Infiniium 90,000 series
16 GHz or better
For HDMI 2.1, a scope with at least 21 GHz of bandwidth is recommended.
Table 10. Partial List of Acceptable Oscilloscopes for HDMI 2.1 Tuning
Keysight
V, Z, and UXR Series
Minimum 20 GHz
bandwidth
Tektronix
DPO70000SX/DX Series
Bandwidth ≥ 20 GHz
Probes
Probes are used to connect the scope to the test fixture. The probes must have at least 8 GHz
of bandwidth for HDMI 1.4b testing and at least 12 GHz of bandwidth for HDMI 2.0 testing.
At least two probes are required for tuning. However, four probes are ideal.
Untested lanes must be terminated appropriately. See the “DC Power Supply” section for
details.

Nvidia Jetson AGX Orin Series Specifications

General

Memory	32GB 256-bit LPDDR5
Storage	64GB eMMC 5.1
Networking	10/100/1000BASE-T Ethernet
Dimensions	100 mm x 87 mm
GPU	NVIDIA Ampere architecture with 64 Tensor Cores
CPU	12-core Arm Cortex-A78AE v8.2 64-bit CPU
AI Performance	275 TOPS
Power	15W to 60W
Video Encode	2x 4Kp60 | 8x 1080p60 | 16x 1080p30 (H.265/H.264)
USB	2x USB 2.0
PCIe	PCIe Gen 4
Operating System Support	Ubuntu
